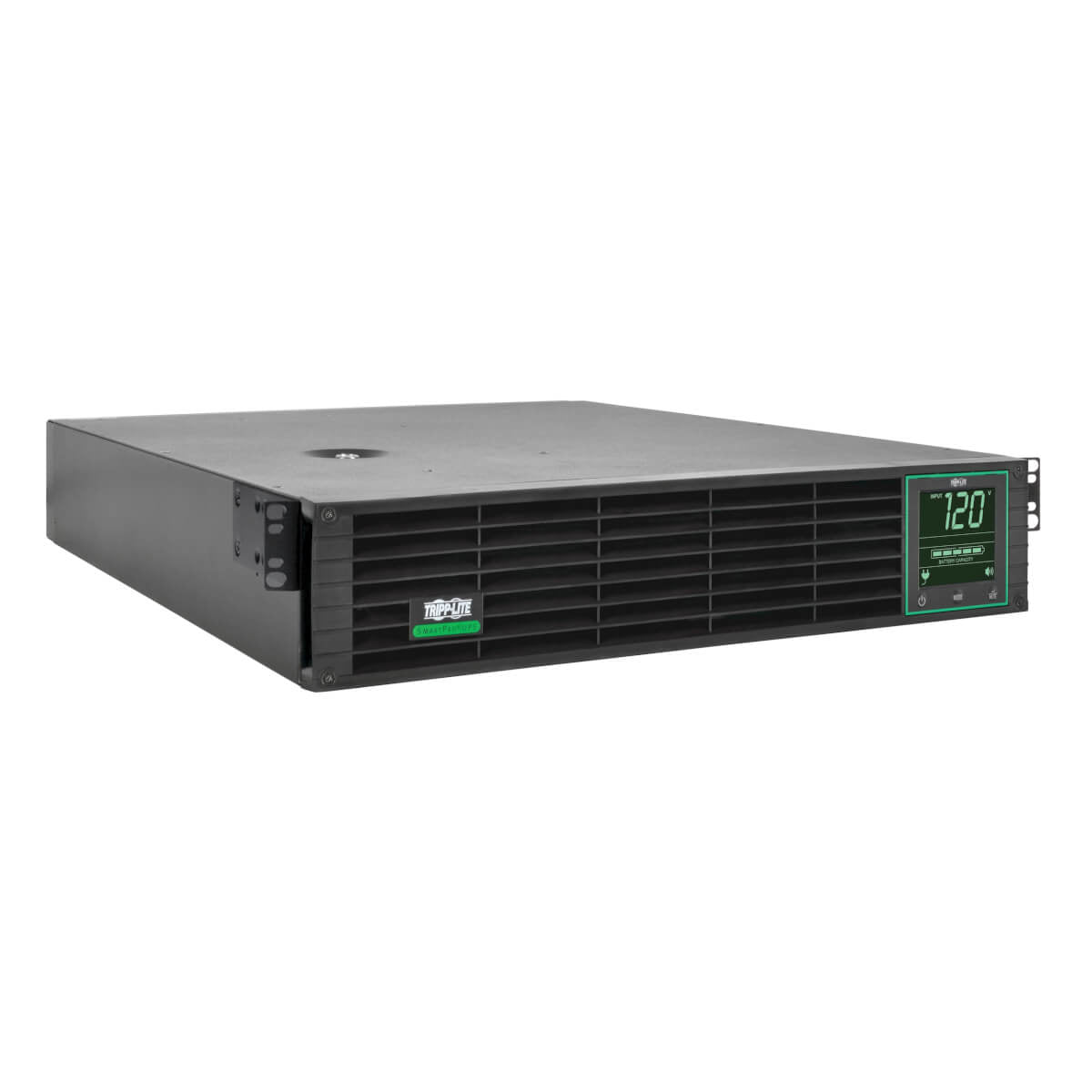

SMART1500RM2UL - Tripp Lite SMARTPRO UPS, LITHIUM BATTERY BACKUP - 120V 1.5KVA LINE INTERACTIVE, 2U, SINE WA

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules. - Tripp Lite SMART1500RM2U line interactive 2U rack/tower UPS with 1500VA / 1.5kVA / 1350W capacity - Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 147V - NEMA 5-15P input plug; 8 NEMA 5-15R output receptacles, Two independently switchable output load banks - Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages - High 95% efficiency rating in line-power mode offers reduced power consumption and BTU emissions - Internal batteries offer 13 minutes at 50% load (675W) and 4.5 minutes at 100% load (1350W) - Hot-swappable, user-replaceable internal batteries can be replaced with no disruption to connected equipment - Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information - LCD interface also supports a number of advanced user setup and operating preferences - Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement - Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options - HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X - Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable



Specification:



Power
Output voltage regulation	-21, +8%
Output power	1350 W
Input operation voltage (min)	83 V
Input operation voltage (max)	147 V
Output operation voltage (min)	120 V
Surge energy rating	570 J
Maximum current	12 A
Efficiency	95%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output power capacity	1.5 kVA
Input frequency	60 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Serial ports quantity	1
RS-232 ports	1
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
LED indicators	Yes
EMI/RFI noise filtering	Yes
Power protection features	Over voltage, Under voltage
Audible alarm(s)	Yes
Features
Country of origin	Taiwan
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	-21, +8%
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Output power	1350 W
Input operation voltage (min)	83 V
Input operation voltage (max)	147 V
Output operation voltage (min)	120 V
Surge energy rating	570 J
Maximum current	12 A
Efficiency	95%
EMI/RFI noise filtering	Yes
Emergency Power Off (EPO)	Yes
Power protection features	Over voltage, Under voltage
Power factor	0.9
Audible alarm(s)	Yes
Output power capacity	1.5 kVA
Input frequency	60 Hz
Battery
Battery recharge time	4.5 h
Typical backup time at half load	13 min
Typical backup time at full load	4.5 min
Hot-swap battery	Yes
Cold start	Yes
Design
Country of origin	Taiwan
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Cooling type	Active
Certification	UL1778, CSA, NOM, FCC
Cable length	118.1" (3 m)
Built-in fan	Yes
Housing material	Steel
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Package width	23.3" (591.8 mm)
Package depth	19.6" (497.8 mm)
Package height	8.5" (215.9 mm)
Weight	46.5 lbs (21.1 kg)
Width	17.3" (439.4 mm)
Package weight	58.9 lbs (26.7 kg)
Height	3.45" (87.6 mm)
Depth	13.4" (341.6 mm)
Packaging data
Package width	23.3" (591.8 mm)
Package depth	19.6" (497.8 mm)
Package height	8.5" (215.9 mm)
Package weight	58.9 lbs (26.7 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Certificates
Certification	UL1778, CSA, NOM, FCC
