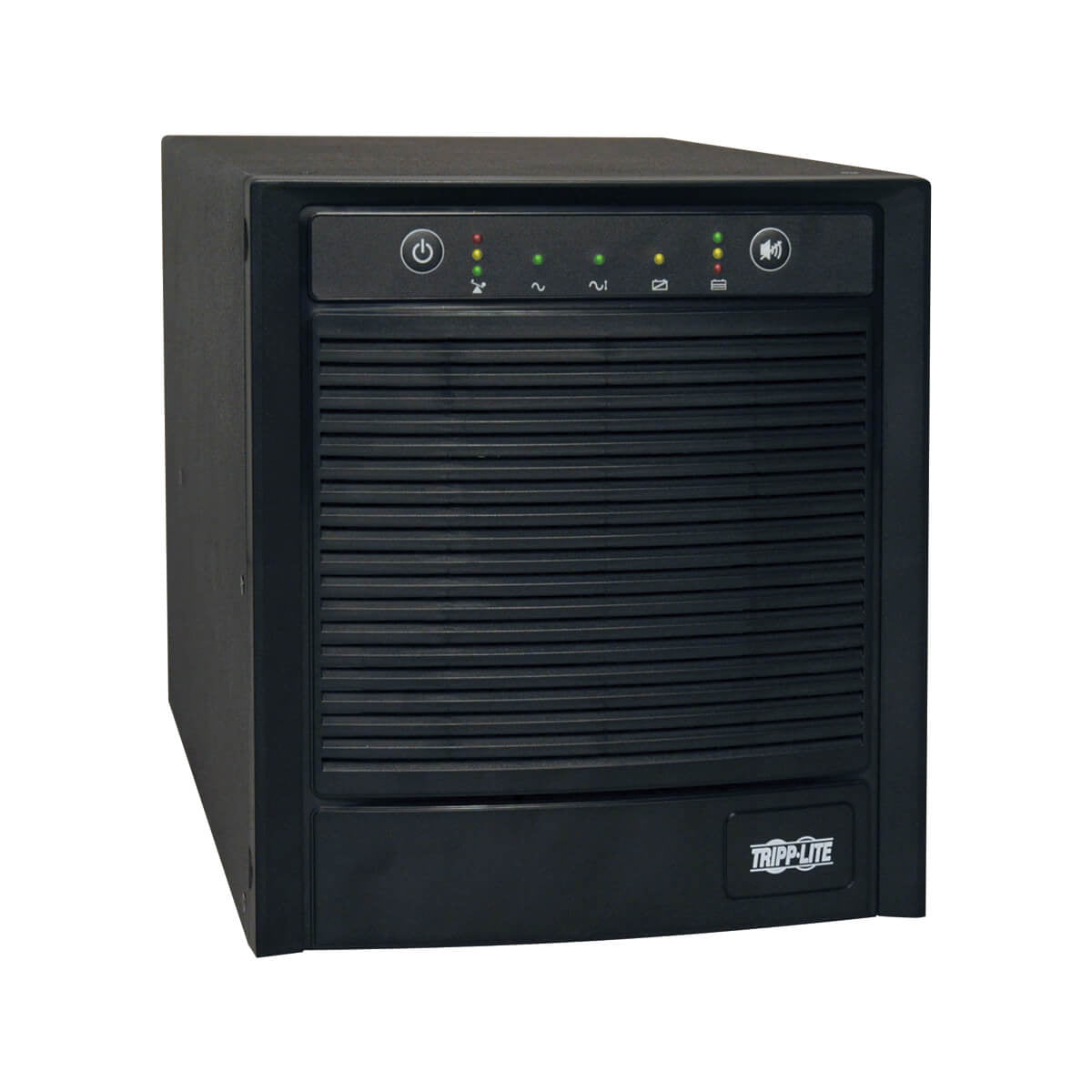

SMART2200SLT - Tripp Lite 2200VA 1600W UPS SMART TOWER AVR 120V USB DB9 SNMP FOR SERVERS

2200VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost/cut during brownouts/overvoltages to maintain regulated 120V nominal output over an input voltage range of 83-145V. Includes NEMA 5-20P input plug and 7 UPS-supported (6 x 5-15/20R & 1 L5-20R) output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces. Includes PowerAlert power management software and complete cabling. Three-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation, and battery warning LEDs. Audible alarm. Self-test. Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme. - SmartPro line-interactive UPS system is ideal for voice, data, medical and industrial networking applications - Line-interactive voltage regulation maintains selectable 120V nominal output during brownouts as low as 83V and overvoltages to 145V - Enables continuous operation through blackouts, voltage fluctuations and surges - Line-interactive automatic voltage regulation (AVR) provides 12% and 24% voltage boost during brownouts and a 12% voltage cut during overvoltages - Standard internal battery set offers 13 min. runtime at half load (800W) and 5 min. at full load (1600W) - Space-saving upright tower format - Network interfaces support simultaneous communications via built-in USB port, DB9 serial port and SNMPWEBCARD slot - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X - Included PowerAlert power management software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP - UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, timed inverter shutoff, activate self-test and output power control - NEMA 5-20P input plug/6 x NEMA 5-15R and 1 x NEMA L5-20R output receptacles - Front panel LEDs provide current monitoring, voltage regulation, battery charge level, and battery warning information - UPS ships fully assembled in full compliance with DOT regulations; no time-consuming connection of internal batteries by user required



Specification:



Power
Output voltage regulation	-18, +8%
Output power	1600 W
Input operation voltage (min)	79 V
Input operation voltage (max)	147 V
Surge energy rating	480 J
Maximum current	20 A
Efficiency	94%
Emergency Power Off (EPO)	Yes
Power factor	0.7
Output power capacity	2.2 kVA
Input frequency	60 Hz
Ports & interfaces
Cable length	96.1" (2.44 m)
AC outlets quantity	9 AC outlet(s)
AC outlet types	NEMA 5–15R, NEMA 5–20R
Power plug	NEMA 5-20P
USB 2.0 ports quantity	2
Serial ports quantity	2
RS-232 ports	1
Modem (RJ-11) ports	1
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
LED indicators	Yes
EMI/RFI noise filtering	Yes
Power protection features	Over voltage, Under voltage
Noise level	47 dB
Audible alarm(s)	Yes
Features
Country of origin	China
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	-18, +8%
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Output power	1600 W
Input operation voltage (min)	79 V
Input operation voltage (max)	147 V
Surge energy rating	480 J
Maximum current	20 A
Efficiency	94%
EMI/RFI noise filtering	Yes
Emergency Power Off (EPO)	Yes
Power protection features	Over voltage, Under voltage
Power factor	0.7
Noise level	47 dB
Audible alarm(s)	Yes
Output power capacity	2.2 kVA
Input frequency	60 Hz
Battery
Battery recharge time	4 h
Typical backup time at half load	19 min
Typical backup time at full load	7 min
Hot-swap battery	Yes
Cold start	Yes
Design
Country of origin	China
Form factor	Tower
LED indicators	Yes
Product colour	White
Cooling type	Active
Certification	UL1778, CSA, NOM, FCC
Cable length	96.1" (2.44 m)
Housing material	Polycarbonate (PC)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	RoHS
Cooling
Cooling type	Active
Weight & dimensions
Package width	16.5" (419.1 mm)
Package depth	14.2" (360.7 mm)
Package height	19.3" (490.2 mm)
Weight	52.5 lbs (23.8 kg)
Width	9.25" (235 mm)
Package weight	58 lbs (26.3 kg)
Height	14.3" (362 mm)
Depth	12" (304.8 mm)
Packaging data
Package width	16.5" (419.1 mm)
Package depth	14.2" (360.7 mm)
Package height	19.3" (490.2 mm)
Package weight	58 lbs (26.3 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	16.5" (419.1 mm)
Master (outer) case length	14.2" (360.7 mm)
Master (outer) case height	19.3" (490.2 mm)
Master (outer) case gross weight	58 lbs (26.3 kg)
Certificates
Certification	UL1778, CSA, NOM, FCC
Other features
Non-operating relative humidity (non-condensing)	0 - 95%
