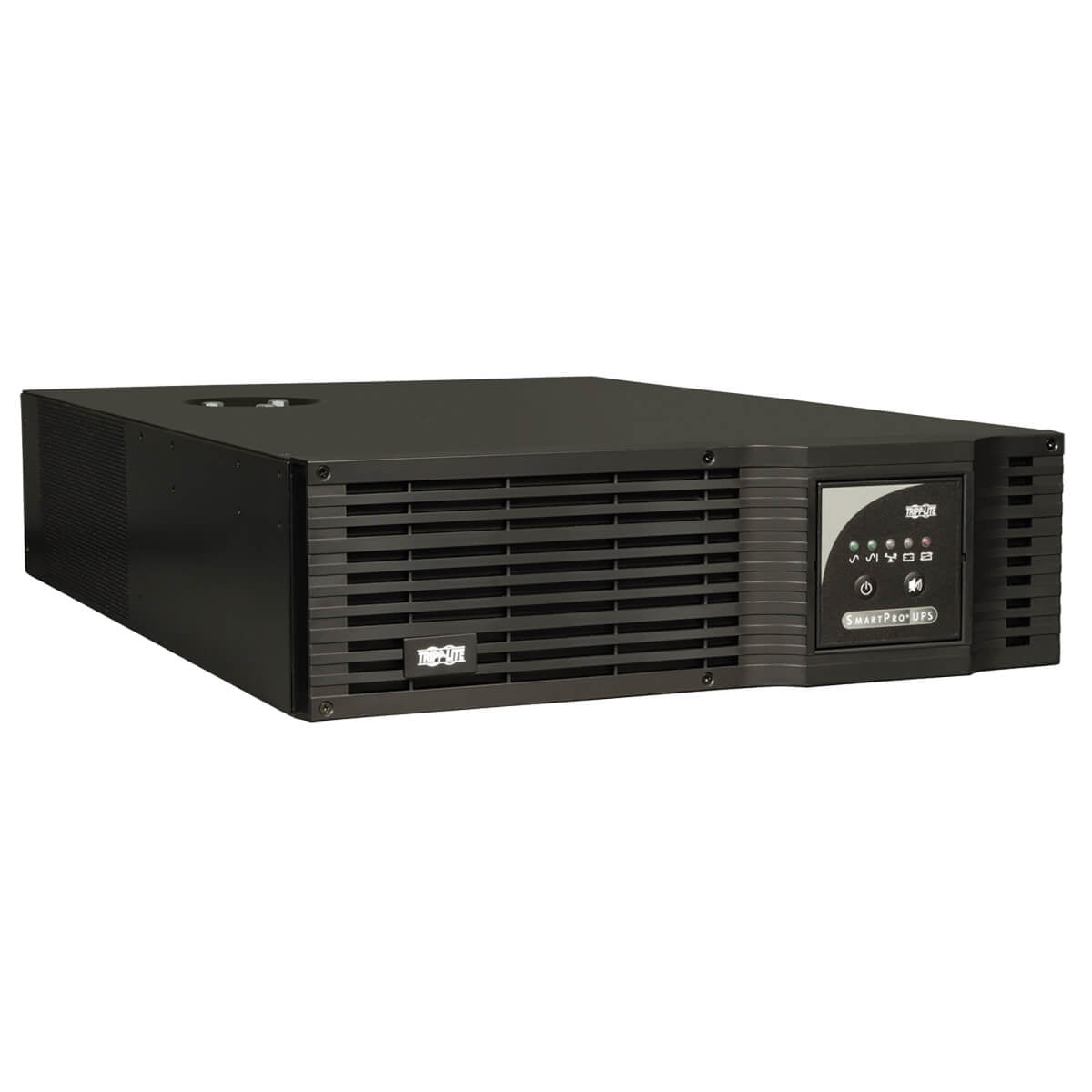

SMART5000XFMRXL - Tripp Lite 5000VA 3750W UPS SMART RACKMOUNT AVR 120V/208V 5KVA USB DB9 3URM

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs. - 5000VA/3750 watt max. output power capacity compatible with North American 208V/60Hz input voltage - Supports full output at either 208V or 120V - 3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 25 inches / 63.5cm - Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges - Line Interactive Automatic Voltage Regulation (AVR) corrects 208V nominal input from 167 to 260VAC back to usable 208/120V levels without consuming battery power - AVR circuits boost undervoltages by 12% and reduce overvoltages by 12% - Network interfaces support simultaneous communications via USB, DB9 serial and SNMPWEBCARD slot - Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP - Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control - Built-in Emergency Power Off (EPO) interface with cable - Sine wave output in AC and battery mode - Expandable runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs - Half/full load runtime of 20/8.5 minutes with internal batteries - Includes 11 output receptacles (2 L6-20, 1 L6-30 & 8 NEMA 5-15/20R) - Ships with installed L6-30P input plug, supports user supplied 50A replacement plug or hardwire input - Integrated 8 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices - 3 stage metered LEDs offer current monitoring and battery charge level - Mains power and voltage regulation LEDs offer at-a-glance power status information - Front panel switches support self-test and alarm cancel functions - Included adjustable mounting rails support installation in 4 post 19 inch racks - UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user is required - Supports 2 post rackmount installation with optional 2POSTRMKIT accessory - Supports upright tower placement with optional 2-9USTAND accessory



Specification:



Power
Output voltage regulation	-15, +13%
Output power	300 W
Surge energy rating	567 J
Maximum current	15 A
Efficiency	94%
Emergency Power Off (EPO)	Yes
Power factor	0.6
Output power capacity	0.5 kVA
Input frequency	60 Hz
Ports & interfaces
Cable length	120.1" (3.05 m)
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Serial ports quantity	1
Modem (RJ-11) ports	1
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
LED indicators	Yes
EMI/RFI noise filtering	Yes
Power protection features	Under voltage
Audible alarm(s)	Yes
Features
Country of origin	China
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	-15, +13%
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Output power	300 W
Surge energy rating	567 J
Maximum current	15 A
Efficiency	94%
EMI/RFI noise filtering	Yes
Emergency Power Off (EPO)	Yes
Power protection features	Under voltage
Power factor	0.6
Audible alarm(s)	Yes
Output power capacity	0.5 kVA
Input frequency	60 Hz
Battery
Battery recharge time	16 h
Typical backup time at half load	14.6 min
Typical backup time at full load	3.2 min
Hot-swap battery	Yes
Cold start	Yes
Design
Country of origin	China
Rack capacity	1U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Certification	UL1778, CSA, NOM, FCC
Cable length	120.1" (3.05 m)
Housing material	Steel
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Package width	15.7" (398.8 mm)
Package depth	21.3" (541 mm)
Package height	4.2" (106.7 mm)
Weight	15.8 lbs (7.18 kg)
Width	17.3" (439.9 mm)
Package weight	19.1 lbs (8.67 kg)
Height	1.73" (43.9 mm)
Depth	11.3" (286 mm)
Packaging data
Package width	15.7" (398.8 mm)
Package depth	21.3" (541 mm)
Package height	4.2" (106.7 mm)
Package weight	19.1 lbs (8.67 kg)
Logistics data
Products per master (outer) case	2 pc(s)
Master (outer) case width	16" (406.4 mm)
Master (outer) case length	21.6" (548.6 mm)
Master (outer) case height	9.4" (238.8 mm)
Master (outer) case gross weight	37 lbs (16.8 kg)
Master (outer) case GTIN (EAN/UPC)	10037332119244
Certificates
Certification	UL1778, CSA, NOM, FCC
Other features
Nominal output voltage	120 V
Non-operating relative humidity (non-condensing)	0 - 95%
