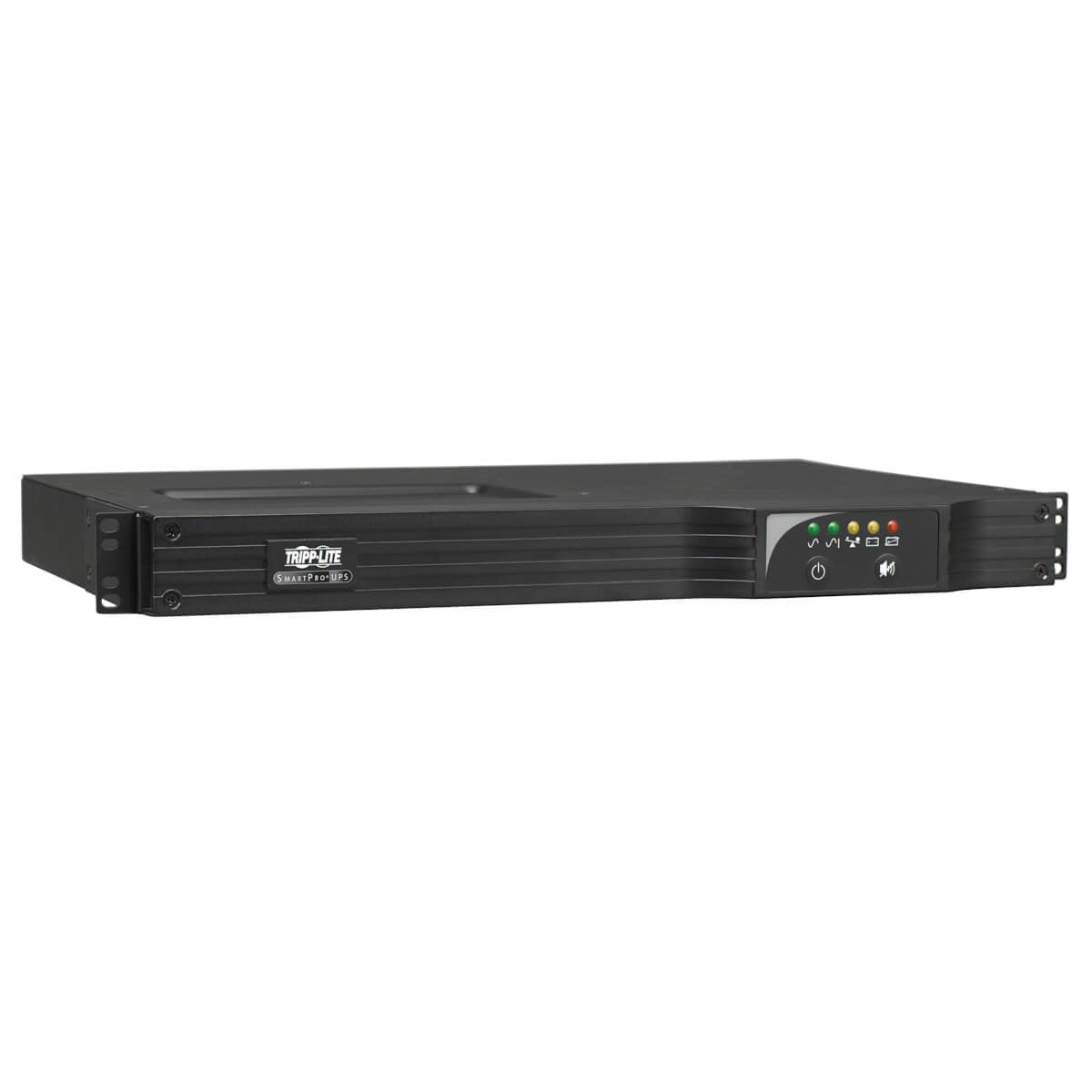

SMART750RM1U - Tripp Lite 750RM - UPS - RACK-MOUNTABLE - LINE-INTERACTIVE - AC 120 V - 600 WATT - BLACK

Tripp Lite SMART750RM1U 750VA / .75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets. - Tripp Lite SMART750RM1U .75kVA / 750VA / 600 watt line interactive UPS - 1U rack/tower compatible form factor - Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support - NEMA 5-15P input; 6 5-15R output receptacles - Installed depth of only 16.75 in. / 42.5cm - Sine wave output in both AC and battery backup modes - Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power - Full load efficiency rating of 99% saves energy and ensures cool operating temperatures - Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices - PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted - Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices - Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X - Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces - 3 stage metered LEDs offer current monitoring and battery charge level - Mains power and voltage regulation LEDs offer at-a-glance power status information - Front panel switches support self-test and alarm cancel functions - Field replaceable, hot-swappable internal UPS batteries



Specification:



Power
Output power	600 W
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	450 J
Efficiency	98%
Emergency Power Off (EPO)	Yes
Power factor	0.8
Output power capacity	0.75 kVA
Input frequency	60 Hz
Ports & interfaces
Cable length	118.1" (3 m)
Emergency Power Off (EPO) connector	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
RS-232 ports	1
Performance
Audible alarm modes	Battery replacement
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Number of phases	1
Response time	5 ms
LED indicators	Power, Status
EMI/RFI noise filtering	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Features
Country of origin	Taiwan
Audible alarm modes	Battery replacement
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Response time	5 ms
Output power	600 W
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	450 J
Efficiency	98%
EMI/RFI noise filtering	Yes
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Power factor	0.8
Audible alarm(s)	Yes
Output power capacity	0.75 kVA
Input frequency	60 Hz
Number of phases	1
Battery
Battery voltage	24 V
Battery recharge time	4 h
Typical backup time at half load	13.2 min
Typical backup time at full load	4.9 min
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Country of origin	Taiwan
Rack capacity	1U
Form factor	Rackmount
LED indicators	Power, Status
Product colour	Black
Cooling type	Active
Certification	UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Cable length	118.1" (3 m)
Housing material	Steel
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	RoHS
Cooling
Cooling type	Active
Weight & dimensions
Package width	21.2" (538.5 mm)
Package depth	22.4" (569 mm)
Package height	5.3" (134.6 mm)
Weight	30 lbs (13.6 kg)
Width	17.5" (444.5 mm)
Package weight	34.4 lbs (15.6 kg)
Height	1.75" (44.4 mm)
Depth	16.7" (425.4 mm)
Packaging data
Rack mount kit	Yes
Manual	Yes
Cables included	USB cable
Package width	21.2" (538.5 mm)
Package depth	22.4" (569 mm)
Package height	5.3" (134.6 mm)
Package weight	34.4 lbs (15.6 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Certificates
Certification	UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Other features
Number of phases	1
Packaging content
Rack mount kit	Yes
Manual	Yes
Cables included	USB cable
