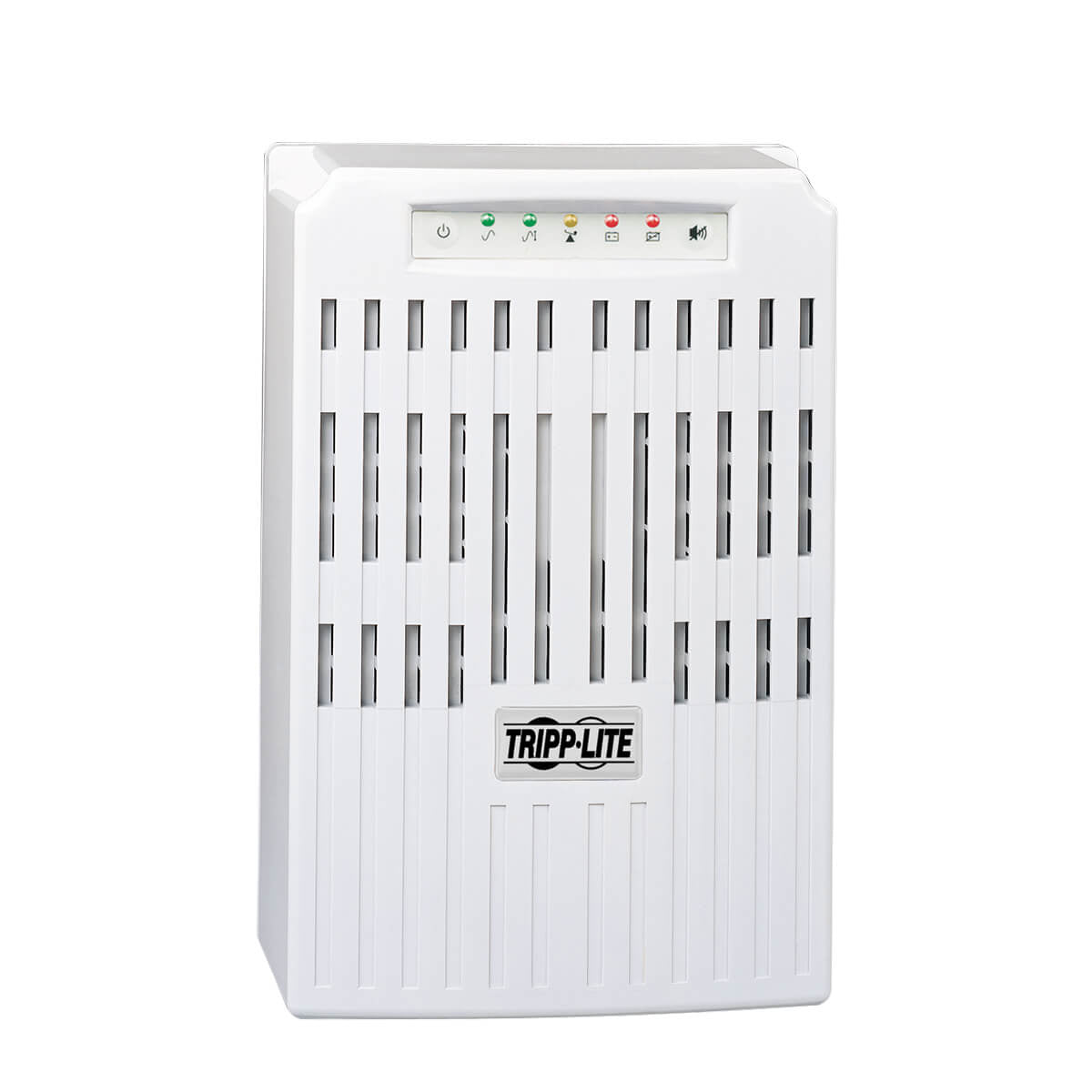

SMARTINT2200VS - Tripp Lite 2200VA 1600W UPS INTERNATIONAL SMART TOWER AVR 230V USB C13 C19

Tripp Lite's SMARTINT2200VS intelligent, line interactive tower uninterruptible power supply (UPS) prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Large internal batteries offer 19 minutes half load runtime and 7 minutes at full load. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 2200VA power handling capability offers compatibility with a variety of networking, telecom and other sensitive electronic applications. Includes a total of 9 outlets with 3 load banks (2 outlets each) that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. PowerAlert UPS monitoring software is available via free download. Built-in accessory slot supports Network Management Card options. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive gray color scheme. SMARTINT2200VS line interactive UPS offers protection from blackouts, brownouts, overvoltages and surges 2200VA/1600W capacity Internal batteries support a half load of 1100VA for 19 minutes and a full load of 2200VA for 7 minutes Intelligent battery management system extends battery life Maintains regulated 230V nominal output during brownouts and overvoltages from 151 to 282V Includes 9 UPS supported outlets with 3 individually controllable load banks that can be powered off and back on again via software interface IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations IP-based Auto Probe detects lost connectivity and restores service autonomously USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download fromTripp Lite website. Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for immediate reboot of connected devices Supports Tripp Lite's WatchDog software application (requires optional WATCHDOGSW) Built-in accessory slot supports Network Management Card options; Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD Emergency Power Off (EPO) interface with cable Multi-function audible alarms and set of 5 front panel LEDs Network-grade AC surge suppression Attractive gray color scheme Optional PDUBHV20 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment



Specification:



Power
Output voltage regulation	-19 +8%
Output power	2250 W
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Maximum current	15.4 A
Efficiency	94%
Emergency Power Off (EPO)	Yes
Power factor	0.75
Output power capacity	3 kVA
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
LED indicators	Yes
EMI/RFI noise filtering	Yes
Power protection features	Over voltage, Under voltage
Noise level	47 dB
Audible alarm(s)	Yes
Features
Country of origin	China
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	-19 +8%
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Output power	2250 W
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Maximum current	15.4 A
Efficiency	94%
EMI/RFI noise filtering	Yes
Emergency Power Off (EPO)	Yes
Power protection features	Over voltage, Under voltage
Power factor	0.75
Noise level	47 dB
Audible alarm(s)	Yes
Output power capacity	3 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
USB 2.0 ports quantity	2
Serial ports quantity	2
Battery
Battery recharge time	4 h
Typical backup time at half load	14 min
Typical backup time at full load	4 min
Hot-swap battery	Yes
Cold start	Yes
Design
Country of origin	China
Form factor	Tower
LED indicators	Yes
Product colour	White
Cooling type	Active
Certification	CE 62040
Housing material	Polycarbonate (PC)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	RoHS
Cooling
Cooling type	Active
Weight & dimensions
Package width	15.1" (383.5 mm)
Package depth	16.1" (408.9 mm)
Package height	19.9" (505.5 mm)
Weight	53.4 lbs (24.2 kg)
Width	9.25" (235 mm)
Package weight	67.9 lbs (30.8 kg)
Height	14.3" (362 mm)
Depth	12" (304.8 mm)
Packaging data
Package width	15.1" (383.5 mm)
Package depth	16.1" (408.9 mm)
Package height	19.9" (505.5 mm)
Package weight	67.9 lbs (30.8 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	15.1" (383.5 mm)
Master (outer) case length	16.1" (408.9 mm)
Master (outer) case height	19.9" (505.5 mm)
Master (outer) case gross weight	67.9 lbs (30.8 kg)
Certificates
Certification	CE 62040
Other features
Interface	USB; DB9
