SMFIBLCLC1 - StarTech.com CONNECT FIBER NETWORK DEVICES FOR HIGH-SPEED TRANSFERS WITH LSZH RATED CABLE - 1

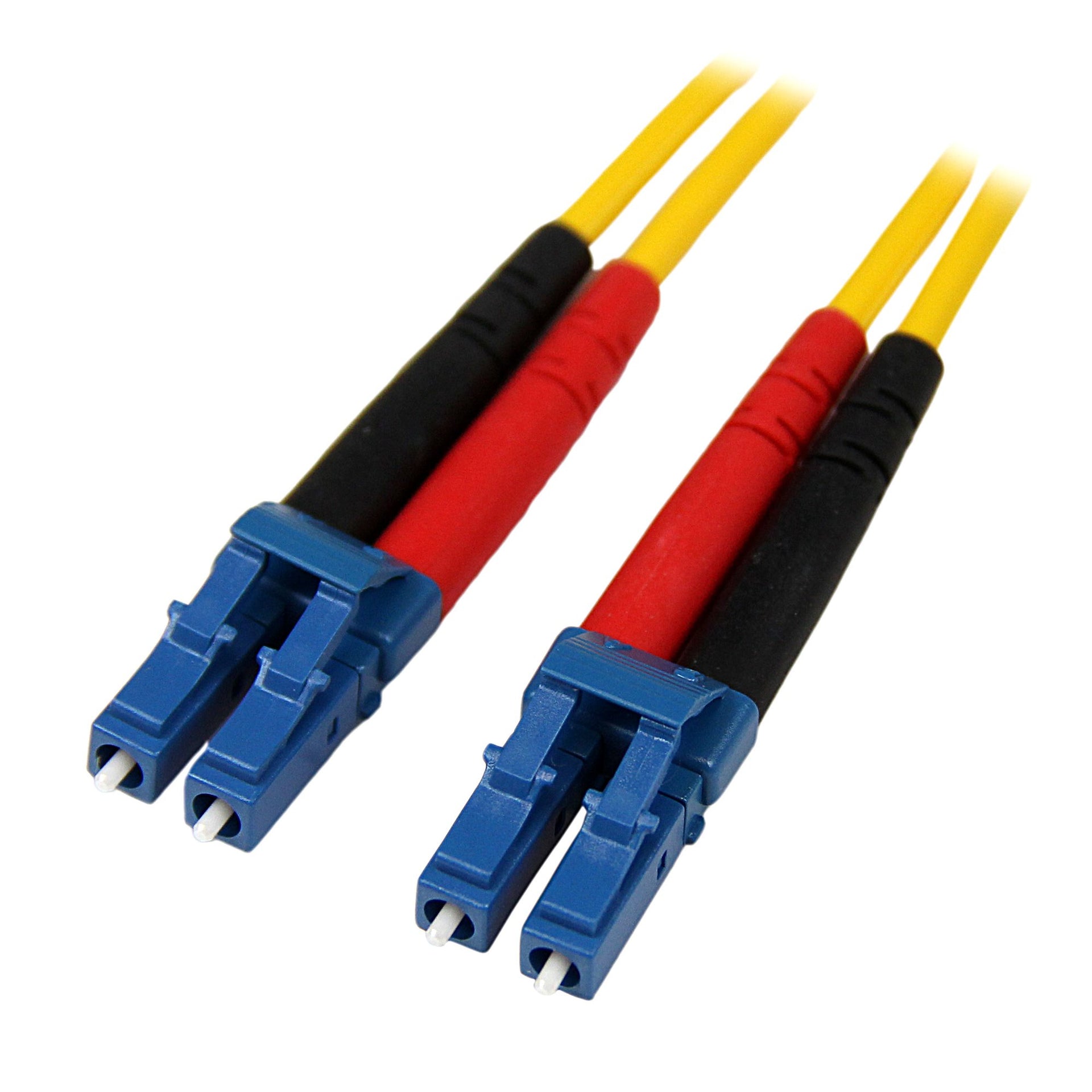

Connect fiber network devices for high-speed transfers with LSZH rated cableThe SMFIBLCLC1 1m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.The StarTech.com Advantage



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	LC
Connector 2	LC
Cable length	393.7" (10 m)
Full duplex	Yes
Core diameter	9 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS, CE
Features
Fibre optic type	OS1
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	LC
Connector 2	LC
Cable length	393.7" (10 m)
Full duplex	Yes
Core diameter	9 µm
Cladding diameter	125 µm
Data transfer rate	100 Gbit/s
Harmonized System (HS) code	85447000
Product colour	Yellow
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	100 Gbit/s
Weight & dimensions
Cable length	393.7" (10 m)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.984" (25 mm)
Weight	4.94 oz (140 g)
Package weight	5.26 oz (149 g)
Packaging data
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.984" (25 mm)
Package weight	5.26 oz (149 g)
Logistics data
Master (outer) case width	16" (407 mm)
Master (outer) case length	17.3" (439 mm)
Master (outer) case height	15.9" (403 mm)
Products per master (outer) case	80 pc(s)
