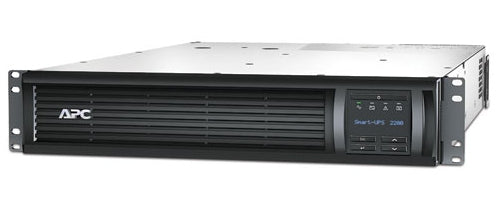

SMT2200RM2UNC - APC SMART-UPS, LINE INTERACTIVE, 2200VA, RACKMOUNT 2U, 120V, 6X NEMA 5-15R+2X NEMA 5

Peace of mind that comes with full equipment compatibility and reliability of a leader Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. Avoids costly power problems by keeping your IT equipment and data safe and available Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold. Save time with easy and convenient remote accessibility Network manageable via serial, USB or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities. Smarter productivity with ability to tailor to your specific application needs Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.



Specification:



Power
Output frequency	50/60 Hz
Output power	1980 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	375 J
Emergency Power Off (EPO)	O
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Performance
Audible alarm modes	Battery replacement
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Response time	4 ms
LED indicators	Yes
Surge protection	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
Audible alarm modes	Battery replacement
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Response time	4 ms
Output power	1980 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	375 J
Surge protection	Yes
Emergency Power Off (EPO)	O
Noise level	55 dB
Audible alarm(s)	Yes
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	9 AC outlet(s)
AC outlet types	C20 coupler
Power plug	C20 coupler
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery capacity	509 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	5 h
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount
LED indicators	Yes
Product colour	Black
Certification	CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Output voltage	230 V
Output frequency	50/60 Hz
Sustainability certificates	RoHS
Harmonized System (HS) code	85078000
Management features
Web-based management	Yes
Weight & dimensions
Package width	23.6" (600 mm)
Package depth	38.6" (980 mm)
Package height	10" (254 mm)
Weight	93 lbs (42.2 kg)
Width	18.9" (480 mm)
Package weight	109.3 lbs (49.6 kg)
Height	3.39" (86 mm)
Depth	26.9" (683 mm)
Packaging data
Resource CD	Yes
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	Input power cable, USB cable
Package width	23.6" (600 mm)
Package depth	38.6" (980 mm)
Package height	10" (254 mm)
Package weight	109.3 lbs (49.6 kg)
Logistics data
Products per pallet	8 pc(s)
Certificates
Certification	CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Other features
Output voltage	230 V
Packaging content
Resource CD	Yes
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	Input power cable, USB cable
