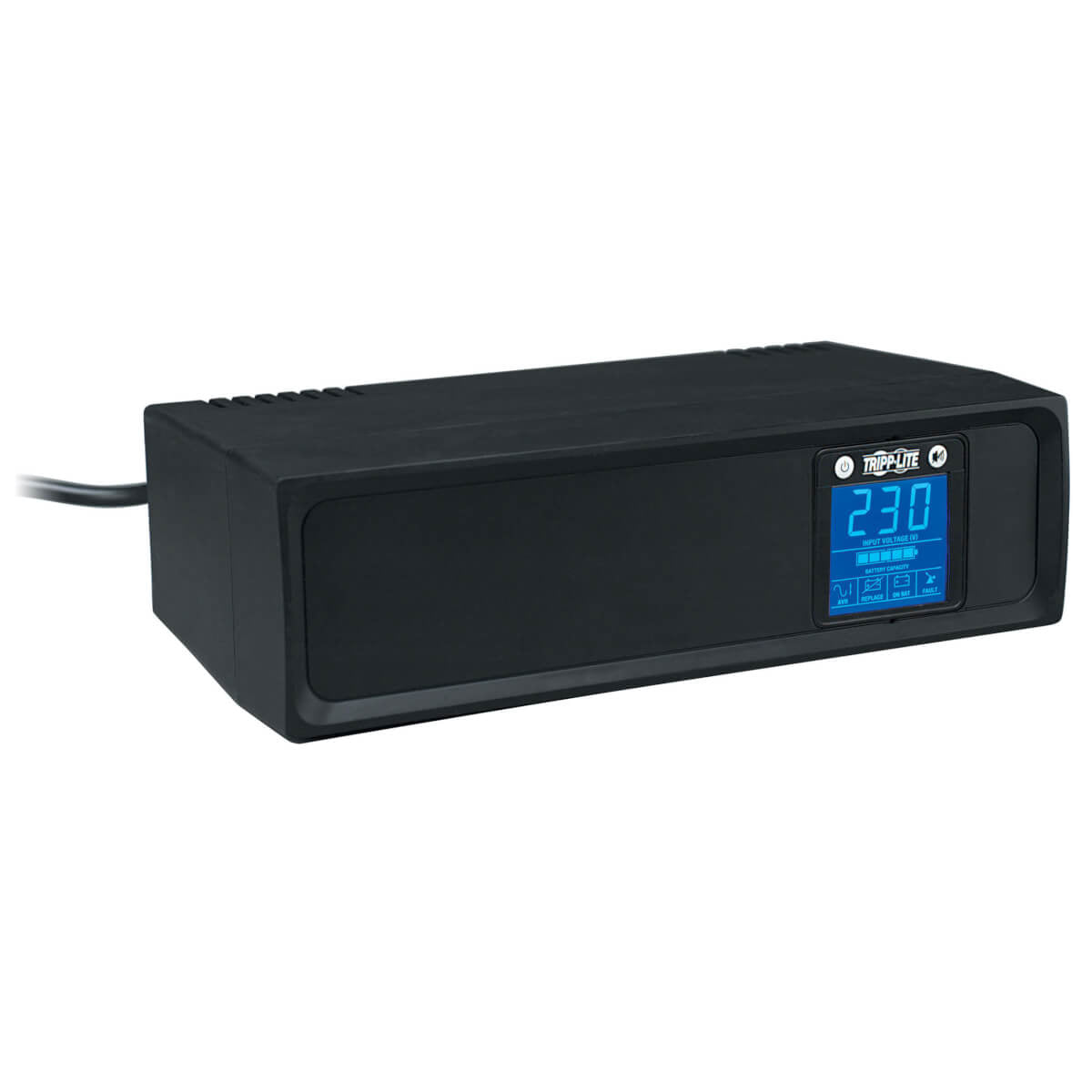

SMX1000LCD - Tripp Lite 1000VA 500W UPS INTERNATIONAL SMART TOWER LCD AVR 230V RJ11 C13

The SMX1000LCD SmartPro 230V 1kVA 500W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, media centers and home entertainment systems, the SMX1000LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss. Featuring six C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1000LCD has an internal battery that provides 11 minutes of support at half load and three minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. Three of the six outlets provide surge protection only for printers and other non-essential devices. A front-panel LCD screen lets you configure settings and monitor operating data, such as voltage, battery and load statuses. Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 171V to 266V without using battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 480-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite’s free downloadable PowerAlert software, SMX1000LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure. Protects Mission-Critical Equipment Provides fully regulated AC output for home/office workstations, media centers and home entertainment systems Audible alarm signals loss of utility power or overload 6 C13 outlets—3 surge-only C14 inlet accepts user-supplied AC power cord with country-specific plug 480-joule surge suppression rating Reliable Battery Backup Supports half load up to 11 min. and full load up to 3 min. Powers entry-level PC up to 60 min. and a DVR/VCR component up to 3 hr. 96% line-power efficiency rating saves money in energy costs Cold-start capability enables turn-on in battery mode during blackouts Automatic Voltage Regulation (AVR) Maintains 230V nominal output over input range of 171V–266V without using battery power EMI/RFI Line Noise Filtering Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance Interactive LCD Screen Front-panel LCD signals voltage, battery and load statuses Supports multiple advanced user setup and operating preferences Rotates for easy viewing in rack-mount or tower configurations Communications Port USB port enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert RJ45 Telephone/Ethernet Protection Jacks Protect phone/DSL/fax/modem/Ethernet network against power surges



Specification:



Power
Output power	700 W
Input operation voltage (min)	230 V
Input operation voltage (max)	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Maximum current	4.8 A
Efficiency	97%
Power factor	0.9
Output power capacity	1 kVA
Ports & interfaces
Cable length	70.9" (1.8 m)
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Performance
Surge protection	Yes
Audible alarm(s)	Yes
Features
Country of origin	China
Output power	700 W
Input operation voltage (min)	230 V
Input operation voltage (max)	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Maximum current	4.8 A
Efficiency	97%
Surge protection	Yes
Power factor	0.9
Audible alarm(s)	Yes
Output power capacity	1 kVA
Battery
Battery recharge time	2 h
Typical backup time at half load	11.9 min
Typical backup time at full load	3.6 min
Design
Country of origin	China
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Certification	Tested to UL1778, CE EN62040, GOST, SASO, IRAM
Cable length	70.9" (1.8 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Weight & dimensions
Package width	23.1" (586.7 mm)
Package depth	18.2" (462.3 mm)
Package height	8.5" (215.9 mm)
Weight	34 lbs (15.4 kg)
Width	17.5" (444.5 mm)
Package weight	45.9 lbs (20.8 kg)
Height	3.5" (88.9 mm)
Depth	13.5" (342.9 mm)
Packaging data
Package width	23.1" (586.7 mm)
Package depth	18.2" (462.3 mm)
Package height	8.5" (215.9 mm)
Package weight	45.9 lbs (20.8 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	23.1" (586.7 mm)
Master (outer) case length	18.2" (462.3 mm)
Master (outer) case height	8.5" (215.9 mm)
Master (outer) case gross weight	45.9 lbs (20.8 kg)
Certificates
Certification	Tested to UL1778, CE EN62040, GOST, SASO, IRAM
Other features
Weight (imperial)	33.4 lbs
Non-operating relative humidity (non-condensing)	0 - 95%
