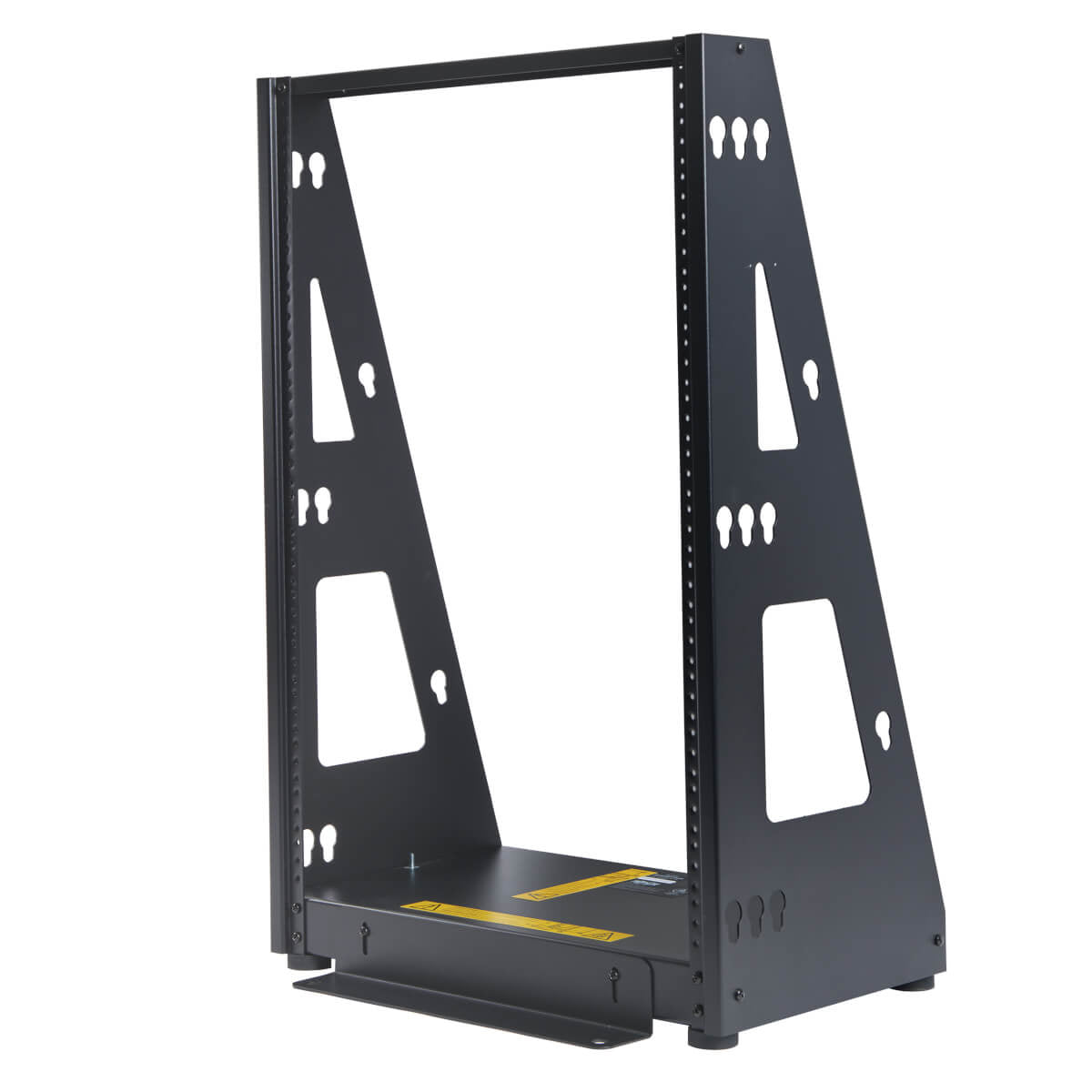

SR2POST16HD - Tripp Lite OPEN FRAME RACK SERVER CABINET 16U 2-POS

Compact 16U 2-Post Rack Houses Equipment up to 24 in. Deep This SmartRack® EIA-310 open frame rack is designed to house 16U of equipment, including servers, UPS systems, switches, cable managers and PDUs. It’s recommended for mounting equipment in retail locations, classrooms, back offices, audio/video editing bays and radio/television studios. Constructed from heavy-duty steel with a durable black powder-coated finish, the 2-post rack has a maximum load capacity of 350 pounds (159 kilograms). Bolts Down Almost Anywhere to Protect Equipment and Save Space The special cantilever design allows the SR2POST16HD to house heavy equipment up to 24 inches (61 centimeters) deep without the risk of tipping over. Securement brackets and rubber feet are included for anchoring the rack to a flat surface with user-supplied hardware. The rack offers a small footprint and is able to fit almost anywhere in virtually any environment. You can position the open frame rack on any flat surface, including a floor, shelf or workbench. Open Frame Design Allows Easy Access The SR2POST16HD gives you instant access to equipment and cabling in both the front and rear. Install equipment using the 12-24 threaded and numbered mounting positions. Keyhole slots on the sides accept toolless 0U mounting of PDUs and cable managers.



Specification:



Weight & dimensions
Package depth	52.6" (1336 mm)
Package width	6" (152.4 mm)
Package height	4.5" (114.3 mm)
Package weight	26 lbs (11.8 kg)
Width	20.3" (515.6 mm)
Depth	13.5" (342.9 mm)
Height	49" (1244.9 mm)
Weight	22.9 lbs (10.4 kg)
Maximum weight capacity	800.1 lbs (362.9 kg)
Features
Rack capacity	25U
Type	Freestanding rack
Maximum weight capacity	800.1 lbs (362.9 kg)
Product colour	Black
Certification	EIA-310-D, IEC 60297-3-100, RoHS
Packaging data
Package depth	52.6" (1336 mm)
Package width	6" (152.4 mm)
Package height	4.5" (114.3 mm)
Package weight	26 lbs (11.8 kg)
Technical details
Package width	6" (152.4 mm)
Package height	4.5" (114.3 mm)
Type	Freestanding rack
Master (outer) case GTIN (EAN/UPC)	10037332143140
Harmonized System (HS) code	8517.79.0000
Rack capacity	25U
Colour
Product colour	Black
Certificates
Certification	EIA-310-D, IEC 60297-3-100, RoHS
Logistics data
Master (outer) case width	20.5" (519.9 mm)
Master (outer) case length	54.1" (1374.9 mm)
Master (outer) case height	28.3" (718.3 mm)
Master (outer) case gross weight	286.6 lbs (130 kg)
Products per master (outer) case	9 pc(s)
Country of origin	China
