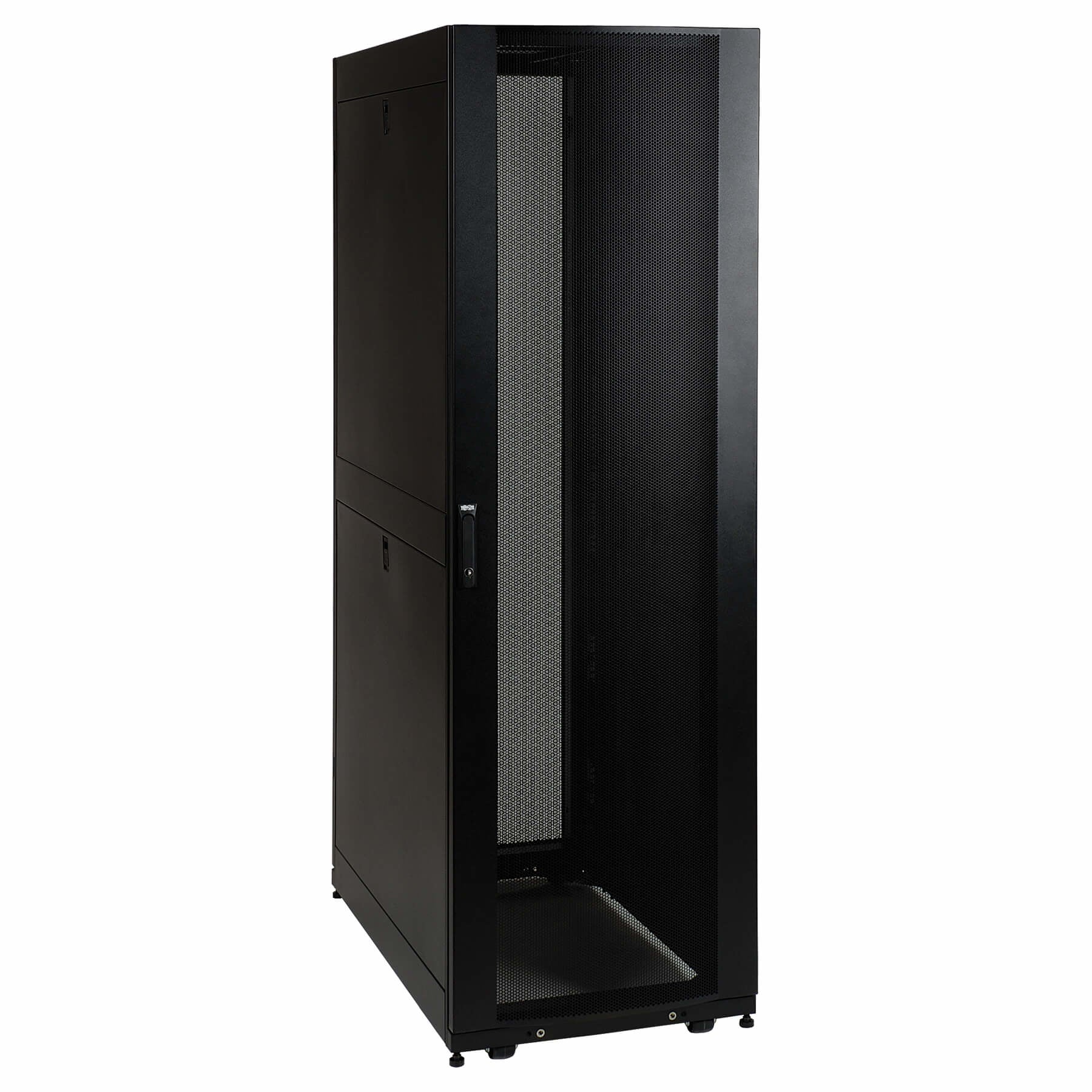

SR45UB - Tripp Lite 45U RACK ENCLOSURE SERVER CABINET DOORS & SIDES 3000LB CAPACITY

The SR45UB features a massive front-to rear-ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations. The SR45UB houses 3000 lbs (1360.8 kgs) of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR45UB provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UB meets all requirements toward PCI DSS compliance. The top panel of the SR45UB is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR45UB is open-bottom. All components of the SR45UB are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires. To simplify deployment, the SR45UB comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances. The SR45UB comes with a 5-year product warranty. As part of the SmartRack family, the SR45UB is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement. Ships fully assembled for rapid deployment and roll into place on pre-installed casters that support a rolling load capacity of 2250 lbs (1020.6 kgs), allowing the enclosures to be pre-configured and rolled to the final installation location. (Casters are removable.) Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure). Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses. Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements. Maximum usable internal depth of 37 inches/94 cm (front to rear rail). Weight ratings of 3000 lbs (1360.8 kgs) stationary and 2250 lbs (1020.6 kgs) rolling. Front door is locking, reversible and removable. Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall. Locking removable side panels are 'half size' to make them smaller and lighter improving ease of installation and servicing. Two side panels per side (4 panels total). Side panels are keyed alike to the front and rear doors. Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles. Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable. Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires. Open bottom for cable access. Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first. Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance Compatibility with airflow optimization accessories as well as cable management accessories.



Specification:



Weight & dimensions
Package depth	53" (1346.2 mm)
Package width	26" (660.4 mm)
Package height	90.3" (2293.6 mm)
Package weight	390 lbs (176.9 kg)
Width	23.6" (600.2 mm)
Depth	48" (1219.2 mm)
Height	83.7" (2127.2 mm)
Weight	340 lbs (154.2 kg)
Maximum weight capacity	3000.1 lbs (1360.8 kg)
Features
Rack capacity	45U
Type	Freestanding rack
Maximum weight capacity	3000.1 lbs (1360.8 kg)
Product colour	Black
Certification	UL60950; RoHS, CE
Packaging data
Package depth	53" (1346.2 mm)
Package width	26" (660.4 mm)
Package height	90.3" (2293.6 mm)
Package weight	390 lbs (176.9 kg)
Package dimensions (WxDxH)	26 x 52.8 x 90.2" (660.4 x 1340 x 2292.3 mm)
Technical details
Package width	26" (660.4 mm)
Package height	90.3" (2293.6 mm)
Type	Freestanding rack
Harmonized System (HS) code	8517.79.0000
Rack capacity	45U
Colour
Product colour	Black
Certificates
Certification	UL60950; RoHS, CE
Logistics data
Master (outer) case width	26" (660.4 mm)
Master (outer) case length	53" (1346.2 mm)
Master (outer) case height	90.3" (2293.6 mm)
Master (outer) case gross weight	390 lbs (176.9 kg)
Products per master (outer) case	1 pc(s)
Country of origin	China
Other features
Package dimensions (WxDxH)	26 x 52.8 x 90.2" (660.4 x 1340 x 2292.3 mm)
