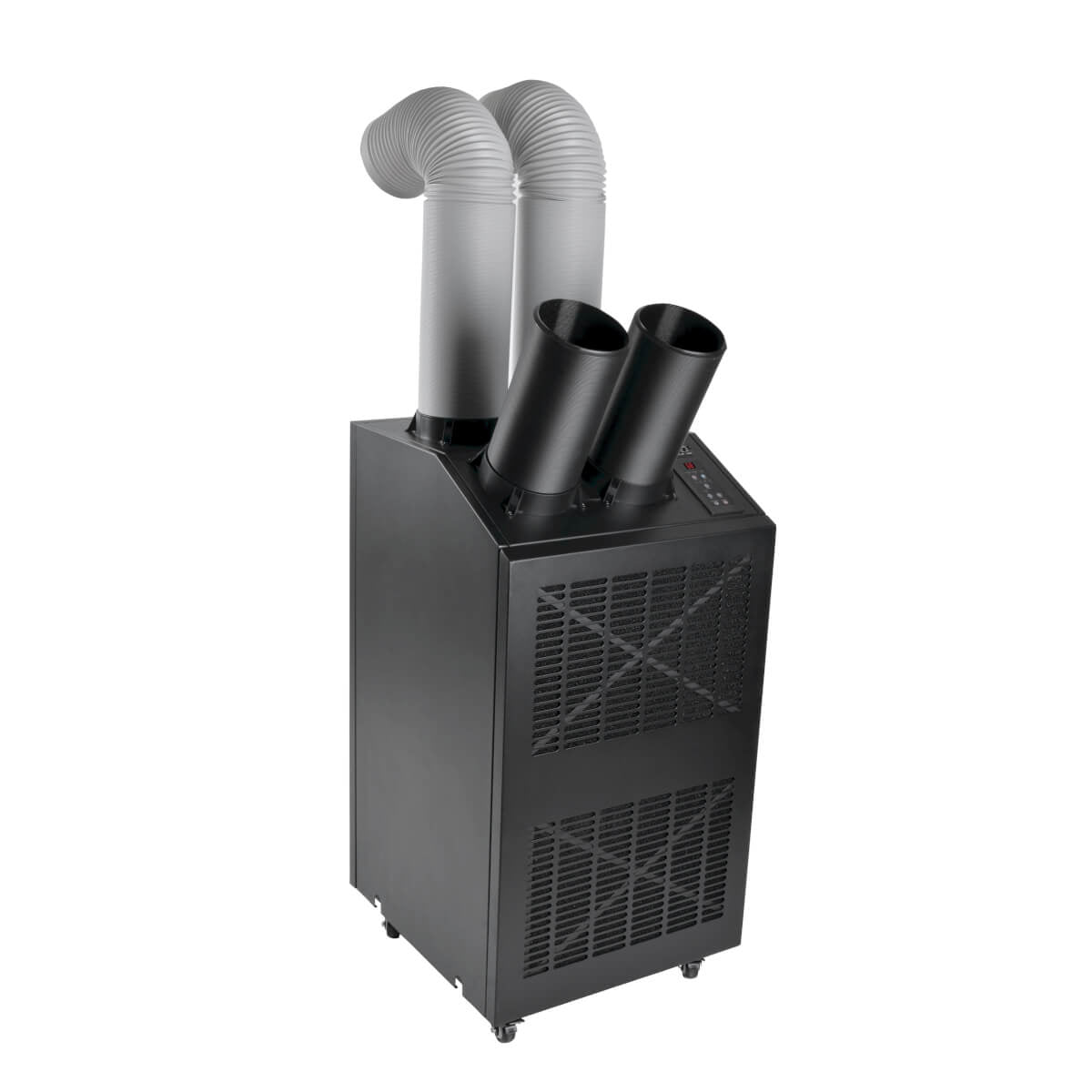

SRCOOL24K - Tripp Lite PORTABLE COOLING UNIT AIR CONDITIONER 24K BTU 7.0KW 208/240V

The SRCOOL24K SmartRack 24,000 BTU 208/240V Portable Air Conditioning Unit cools, dehumidifies and filters the air in your server room, data center or other environment with heat-sensitive equipment. The compact, portable unit fits into just 4 square feet of floor space. It is designed for primary, supplemental or backup cooling of IT equipment to prevent shutdowns, malfunctions and costly downtime caused by overheating or fluctuating temperatures. The self-contained SRCOOL24K packs 24,000 BTU/h(7kW) of cooling capacity into a rack-width chassis. A built-in evaporator expels condensation through a directional exhaust duct, eliminating the need for a floor drain or water collection tank. The SRCOOL24K also dehumidifies and filters the air, providing better air quality that can enhance equipment performance. Efficient close-coupled cooling reduces energy use and operating costs. Installation is quick and easy and does not require disruptive construction or the costly expense of hiring a plumber or HVAC specialist. The unit rolls into place on durable built-in casters. The NEMA L6-20P plug connects to a standard 208/240V 20A outlet. The SRCOOL24K restarts automatically after power failures, and a built-in timer supports unattended shutdown and startup. The included SRCOOLNET2 network management card lets you monitor temperatures, receive alerts, review logs, automate operation and control settings from anywhere via SNMP, web browser, SSH or telnet. The SRCOOLNET2 includes the ENVIROSENSE remote sensor, which lets you monitor temperature and humidity up to 12 feet away from the SRCOOL24K. Portable, High-Capacity Cooling Power - Produces 24,000 BTU/h(7 kW) of cooling capacity in a portable, rack-width chassis - Prevents equipment shutdowns, malfunctions and failures caused by overheating and temperature fluctuations - Filters and dehumidifies the air to enhance equipment performance - Uses environmentally friendly R410A refrigerant, which complies with worldwide standards - Efficient close-coupled cooling reduces energy use and operating costs Convenient Operation - Adjustable louvers support area cooling applications - Flexible dual output ducts aim cold air where it’s needed, such as an overheated rack enclosure or equipment hot spot - Supports unattended shutdown and startup, including automatic restarts after power failures - Easy-to-read control panel with digital display and diagnostic LEDs for local management - System-lock function disables all other buttons to prevent accidental input Advanced Network Monitoring - Included SRCOOLNET2 accessory allows remote monitoring of temperatures, alerts, logs and control settings from anywhere via SNMP, web browser, SSH or telnet - ENVIROSENSE remote sensor monitors temperature and humidity up to 12 ft. away Easy to Install - Rolls into place on built-in casters - Fits into 2 x 2 ft. section of floor space - 6.5 ft. power cord with NEMA L6-20P plug connects to a standard 208/240V 20A AC outlet - No external condenser, refrigerant piping or professional maintenance required - Built-in evaporator expels condensation through exhaust tube—no floor drain or water collection tank needed - Exhaust kit removes hot air from room through drop ceiling, window or return duct - Includes all parts required for setup



Specification:



Technical details
Type	Monobloc mobile air conditioner
Cooling capacity in watts (nominal)	600 W
Air conditioner functions	Cooling, Fan
Cooling capacity (max)	2000 BTU/h
Noise level	55 dB
Country of origin	China
Products per master (outer) case	1 pc(s)
Design
Product colour	Black
Weight & dimensions
Width	13.5" (342.9 mm)
Depth	13.5" (342.9 mm)
Height	11.1" (281.9 mm)
Weight	35.1 lbs (15.9 kg)
Package width	19.6" (497.8 mm)
Package depth	23.6" (599.4 mm)
Package height	16.9" (429.3 mm)
Package weight	52.9 lbs (24 kg)
Logistics data
Master (outer) case width	19.6" (497.8 mm)
Master (outer) case length	23.6" (599.4 mm)
Master (outer) case height	16.9" (429.3 mm)
Master (outer) case gross weight	52.9 lbs (24 kg)
