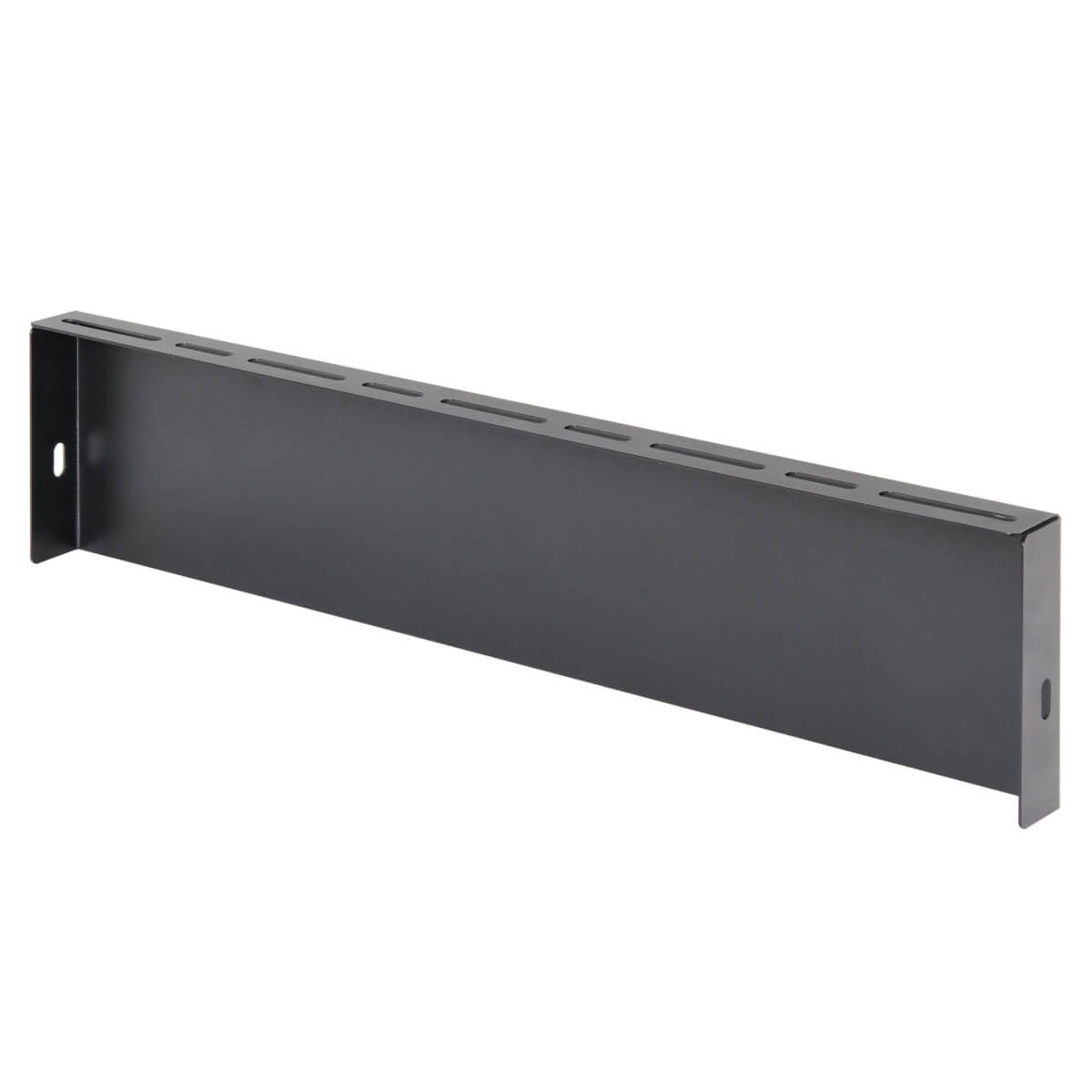

SRCTMTR750SH - Tripp Lite SHORT RISER PANELS AISLE CONTAIN 750MM

Riser Panels Designed for Extra-Wide 750 mm Server Racks These SmartRack® riser panels attach to the underside of the Tripp Lite aisle containment system’s upper support beams. This is to fill the gap between the telescopic beams (SRCTMTTLBM, sold separately) and your rack cabinets. All necessary installation hardware is included. The 3U SRCTMTR750SH measures 750 millimeters (30 inches) wide and 133 millimeters (5.2 inches) high to fit 45U standard-width rack enclosures.
Tripp Lite’s Aisle Containment System Manages Airflow for More Cooling Efficiency Upon installation in your data center or server room, the modular, easy-to-assemble Aisle Containment System contains the air in a hot aisle or cold aisle, essentially creating a room within the aisle, while still keeping the aisle accessible. No costly contractor or HVAC specialist is required to install the system, which can be expanded or adapted to meet your needs. Assorted frame kits, beam kits, sliding double-door kits, roof panel kits and adapter riser panel kits (all sold separately) are necessary to assemble a hot or cold Aisle Containment System that accommodates the dimensions of your aisle and the rack enclosures within it.
Typical Application ● Provide a semi-airtight seal to prevent hot and cold air from mixing within a contained aisle in your data center or server room Introduction Bullets ● Riser panels designed for extra-wide 750 mm rack enclosures ● Fill gap between rack cabinets and aisle containment system’s telescopic beams ● Minor assembly required using the included hardware System Requirements ● SRCTMTTLBM Beam Kit ● SRCTMTFRM Frame End Kit ● SRCTMTSDD Sliding Double-Door Kit ● SRCTMTCVR750 Static Roof Panel Kit Package Includes ● (2) Riser panels ● (2) M6 x 16 screws ● (2) M6 hex nuts ● (4) M6 x 12 self-tapping screws ● (6) M6 washers ● Installation guide



Specification:



Features
Type	Panel kit
Product colour	Black
Harmonized System (HS) code	7308.90.6000
Country of origin	China
Weight & dimensions
Package width	34.5" (877.1 mm)
Package height	13.4" (340.1 mm)
Package depth	5.71" (145 mm)
Package weight	13.7 lbs (6.2 kg)
Width	29.8" (756.9 mm)
Weight	12.1 lbs (5.5 kg)
Height	10.4" (264.9 mm)
Depth	1.44" (36.6 mm)
Packaging data
Package width	34.5" (877.1 mm)
Package height	13.4" (340.1 mm)
Package depth	5.71" (145 mm)
Package weight	13.7 lbs (6.2 kg)
Quantity per pack	2 pc(s)
Packaging content
Mounting kit	Yes
Quick installation guide	Yes
Technical details
Type	Panel kit
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332240290
Colour
Product colour	Black
Logistics data
Master (outer) case width	27.6" (700 mm)
Master (outer) case length	35.4" (899.9 mm)
Master (outer) case height	12.2" (309.9 mm)
Master (outer) case gross weight	54.7 lbs (24.8 kg)
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	7308.90.6000
