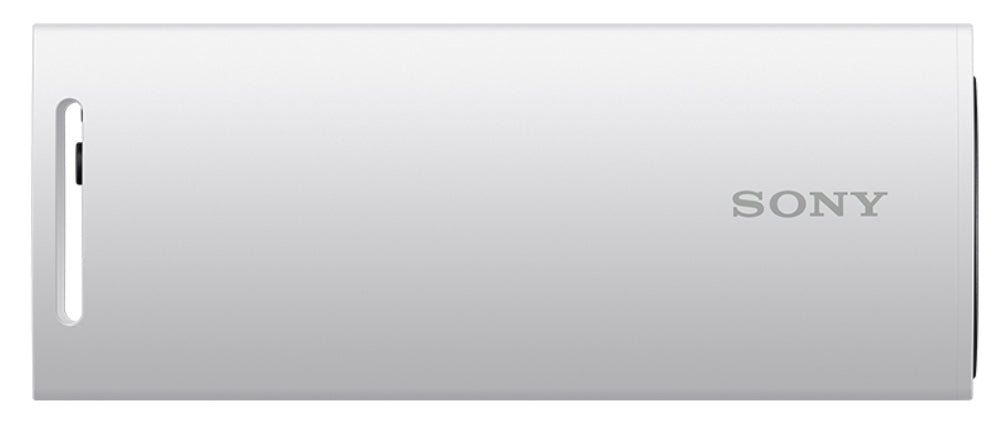

SRGXB25/W - Sony COMPACT 4K 60P BOX-STYLE REMOTE CAMERA WITH 25X OPTICAL ZOOM

Stream crisp, detail-packed 4K 60p video with this high quality remote camera that features a powerful 25x optical zoom lens for frame-filling close-ups in larger venues. The SRG-XB25 high-zoom BOX camera draws on decades of Sony’s professional imaging know-how to suit a wide range of content creation applications. It’s ideal for capturing and streaming impressive 4K pictures in environments including seminar rooms, lecture theatres, virtual production studios, government/parliament buildings and houses of worship. The cost-effective SRG-XB25 is particularly appealing for multi-camera shooting set-ups, where high quality images are required without the need for a team of dedicated camera operators. The integrated lens with powerful 25x optical zoom captures frame-filling close-ups of speakers and presenters, even when the camera’s installed at the back or larger auditoriums and public venues. The SRG-XB25 fits seamlessly into all-IP production environments, with a single Ethernet cable carrying power, streaming video and camera control signals. Ideal for lecture capture applications, the SRG-XB25 partners seamlessly with the REA-C1000 Edge Analytics Appliance. For example, the camera’s powerful 25x zoom captures the speaker’s gestures and handwriting in large classrooms or teaching spaces, allowing REA-C1000 to deliver what the customer requires. Robust, stylish and compact Measuring just 70.9 x 80.1 x 178.3 mm and weighing 872 g, the SRG-XB25 can be readily integrated into any environment. Upper and lower tripod mounts increase installation flexibility. Rear panel guards assure extra robustness, and the large, easy-to-read tally lamp is useful in multiple camera set-ups. Powerful 25x optical zoom The integrated autofocus lens with 25x optical zoom plus additional digital zoom assures ultra-clear, powerful close-ups of presenters or audience members. Easy IP connectivity, single-cable installation Camera control, PoE and streaming video output are carried over a single Ethernet cable, reducing installation costs and simplifying integration in space-restricted or hard-to-reach locations. Full IP integration includes support for Real Time Streaming Protocol (RTSP) and Real Time Messaging Protocol (RTMP). Support for NDI |HX is also available via an optional licence. High quality 4K 60p images The camera’s 1/2.5-type Exmor R CMOS sensor captures smooth, crisply detailed 4K 60p video with excellent low-light sensitivity.　 Broadcast-style tally light The camera-mounted tally light gives visual confirmation to the lecturer or presenter when the camera is active. The horizontal bar-style light is easily visible to both performer/presenter and director. Audio input Connect an external microphone or line-level source to capture clear pictures plus sound in lecture theatres and meeting rooms or on reality TV shows.



Specification:



Performance
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor
Design
Form factor	Box
Product colour	White
Mounting type	Ceiling/Wall/Pole
Camera
Minimum illumination	0.1 lx
Camera shutter speed	1/8 - 1/10000 s
Lens viewing angle, horizontal	102°
Image sensor
Sensor type	CMOS
Optical sensor size	1/8"
Number of sensors	1
Lens system
Number of lenses	1
Closest focusing distance	11.4" (0.29 m)
Zoom capability	Yes
Digital zoom	4x
Fixed focal length	0.01000" (0.254 mm)
Video
Maximum resolution	3840 x 2160 pixels
Video formats supported	H.264, H.265
Supported video modes	480p, 720p, 1080p, 3840p
Frame rate	59.94 fps
Video streaming	Yes
Total megapixels	8.42 MP
Audio
Audio formats supported	AAC
Network
Networking standards	IEEE 802.3af
Streaming method	Multicast
Ethernet LAN	Yes
Ports & interfaces
USB port	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Technical details
Type	IP security camera
Form factor	Box
Placement supported	Indoor
Product colour	White
Mounting type	Ceiling/Wall/Pole
Management features
Remotely operated	Yes
Power
Power source type	DC, PoE
DC-in jack	Yes
DC output voltage	12
Weight & dimensions
Width	2.02" (51.3 mm)
Depth	4.79" (121.6 mm)
Height	2.85" (72.3 mm)
Weight	14.4 oz (408.2 g)
Packaging content
Number of cameras	1
Logistics data
Harmonized System (HS) code	85258900
