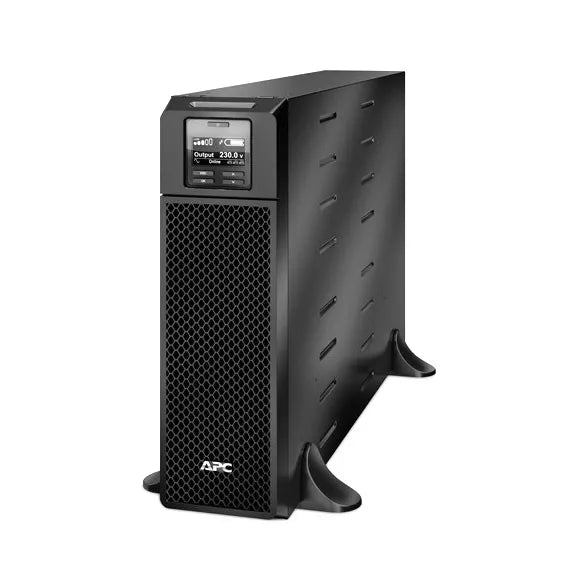

SRT5KXLI - APC SMART-UPS SRT 5000VA 230V

APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model



Specification:



Power
Output frequency	50/60 Hz
Output power	4250 W
Input operation voltage (min)	160 V
Input operation voltage (max)	275 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Output power capacity	5 kVA
Input frequency	40/70 Hz
Ports & interfaces
Cable length	120.1" (3.05 m)
AC outlets quantity	4 AC outlet(s)
AC outlet types	NEMA L6-20R, NEMA L6-30R
Power plug	NEMA L6-30P
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
LED indicators	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Waveform	Sine
Output power	4250 W
Input operation voltage (min)	160 V
Input operation voltage (max)	275 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	55 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	5 kVA
Input frequency	40/70 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	1.50 h
Design
Form factor	Compact
LED indicators	Yes
Product colour	Black
Certification	CSA, FCC, NOM, UL
Cable length	120.1" (3.05 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	RoHS, ENERGY STAR
Weight & dimensions
Package width	24" (610 mm)
Package depth	37.8" (960 mm)
Package height	13" (330 mm)
Weight	123 lbs (55.8 kg)
Width	5.12" (130 mm)
Package weight	142 lbs (64.4 kg)
Height	17" (432 mm)
Depth	28.3" (719 mm)
Packaging data
Package width	24" (610 mm)
Package depth	37.8" (960 mm)
Package height	13" (330 mm)
Package weight	142 lbs (64.4 kg)
Logistics data
Products per pallet	6 pc(s)
Certificates
Certification	CSA, FCC, NOM, UL
