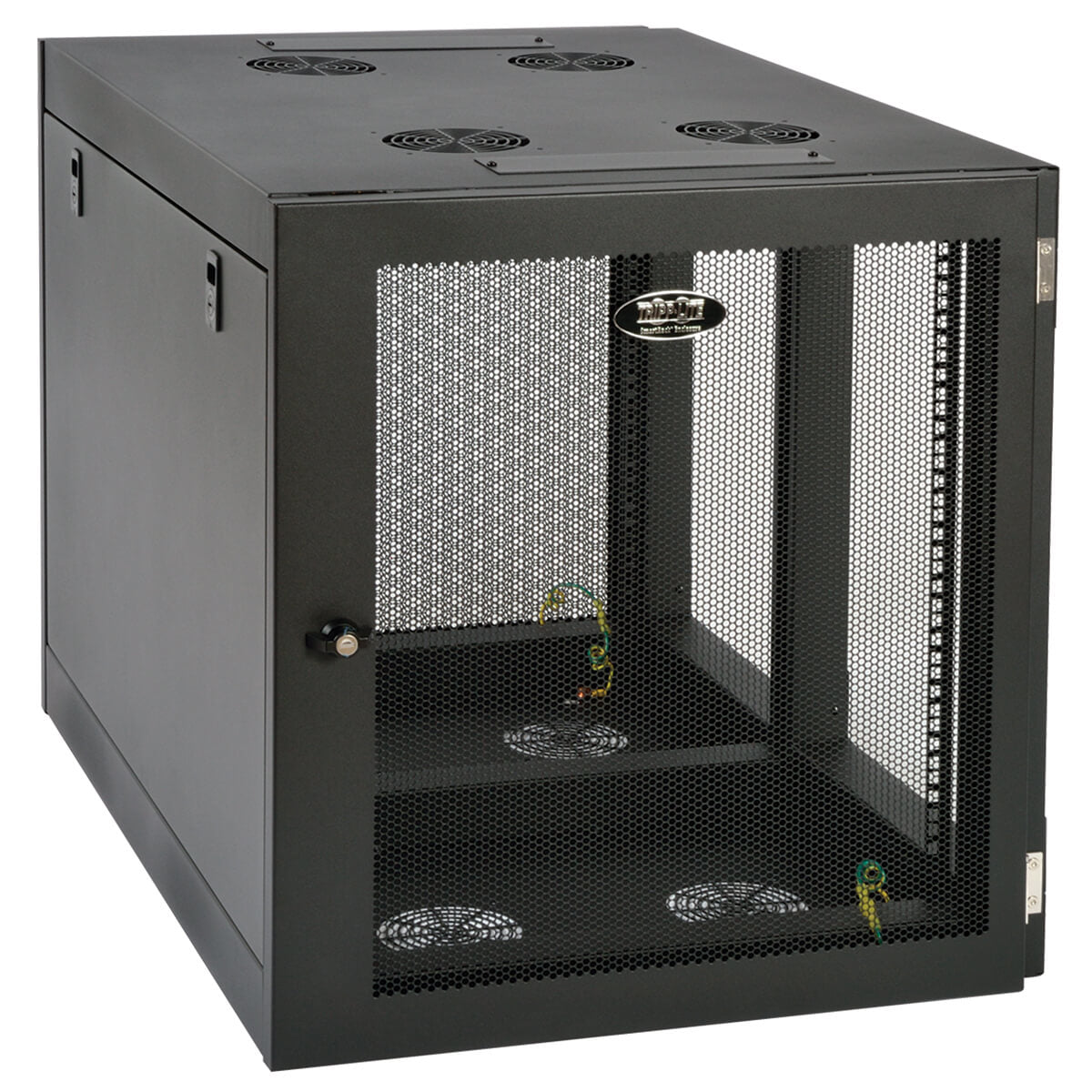

SRW12UHD - Tripp Lite 12U WALL MOUNT RACK ENCLOSURE SERVER CABINET SIDE MOUNT WALLMOUNT

The SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 500 lbs (226.8 kgs). Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels. The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing. The SRW12UHD comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments. Saves Valuable Workspace Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way Houses EIA-standard 19 in. rack equipment in 12U of space Extends less than 25 in. from the wall while housing 1U servers, UPS systems, battery packs, network switches and patch panels up to 32.5 in. deep Maximum load capacity of 500 lbs (226.8 kgs) Keeps Important Equipment Secure Sides and front lock securely to help prevent damage, tampering or theft Vented panels allow generous airflow that keeps equipment cool Convenient ports with removable covers allow cable routing through top and bottom Easy Enclosure and Equipment Installation Ships fully assembled for quick installation Wall-mounting holes spaced 16 in. apart for standard wall stud placement Vertical mounting rails adjust in 7/8 in. increments Rails support square-hole or 12-24 threaded-hole mounting Rack spaces numbered for easy reference Meets Payment Card Industry Standards Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance



Specification:



Weight & dimensions
Package depth	27.8" (706.1 mm)
Package width	26" (660.4 mm)
Package height	24.3" (617.2 mm)
Package weight	63.9 lbs (29 kg)
Width	23.5" (596.9 mm)
Depth	21.6" (549.3 mm)
Height	24.6" (625.5 mm)
Weight	60 lbs (27.2 kg)
Maximum weight capacity	200 lbs (90.7 kg)
Features
Rack capacity	12U
Type	Wall mounted rack
Maximum weight capacity	200 lbs (90.7 kg)
Product colour	Black
Certification	EIA-310-E, IEC 60297-3-100, DIN 41494, IP20, RoHS
Packaging data
Package depth	27.8" (706.1 mm)
Package width	26" (660.4 mm)
Package height	24.3" (617.2 mm)
Package weight	63.9 lbs (29 kg)
Technical details
Package width	26" (660.4 mm)
Package height	24.3" (617.2 mm)
Type	Wall mounted rack
Harmonized System (HS) code	8517.79.0000
Rack capacity	12U
Colour
Product colour	Black
Certificates
Certification	EIA-310-E, IEC 60297-3-100, DIN 41494, IP20, RoHS
Logistics data
Master (outer) case width	26" (660.4 mm)
Master (outer) case length	27.8" (706.1 mm)
Master (outer) case height	24.3" (617.2 mm)
Master (outer) case gross weight	63.9 lbs (29 kg)
Products per master (outer) case	1 pc(s)
Country of origin	China
