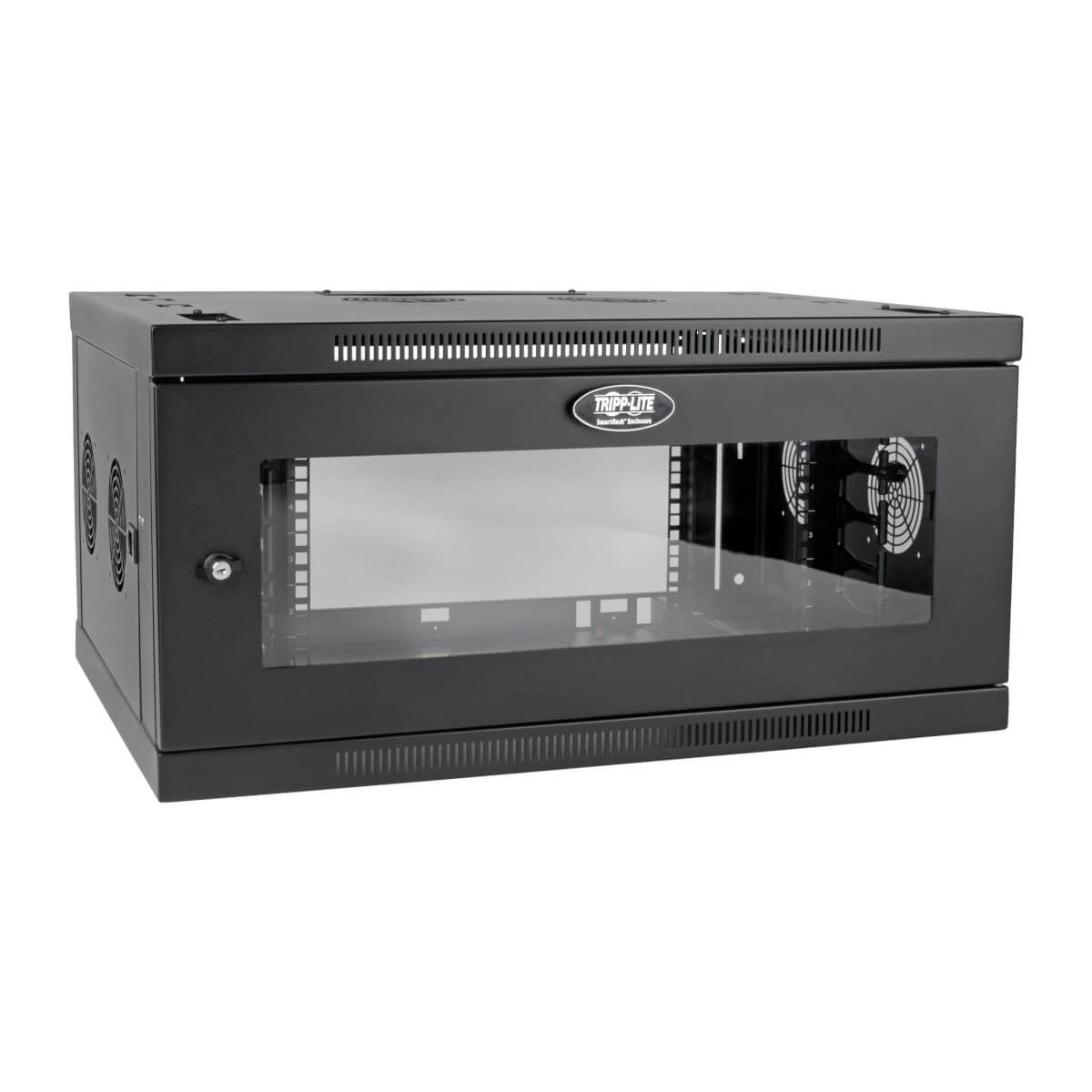

SRW6UDPGVRT - Tripp Lite SMARTRACK 6U LOW-PROFILE SWITCH-DEPTH-PLUS WALL-MOUNT RACK ENCLOSURE CABINET, WI

Space-Saving 6U Wall-Mount Enclosure Houses 19 in. Rack Equipment up to 20.5 in. Deep This SmartRack® cabinet is designed to house 6U of equipment, such as network switches and patch panels. It's recommended for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs (90.7 kgs). Lockable for Simple and Secure Equipment Access The front door and side panels lock securely to help prevent damage, tampering or theft. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom access ports allow easy cable routing through the cabinet. Generous Airflow Keeps Equipment Cool Round ports built into the top, bottom and both sides are designed for optional ventilation fans (such as Tripp Lite's SRFANWM, sold separately) that keep your equipment cool and functioning at their peak. Designed with Extra Width for Easier Cable Access and Better Airflow The SRW6UDPGVRT is three inches wider than Tripp Lite's standard-width wall-mount racks. Combined with two vertical cable managers with pre-installed finger ducts in front and two cable pass-through ports on top, the extra width provides convenient cable management along the front of the rack. This allows easier cable access from the front and increases airflow by minimizing rear cable clutter that can obstruct vents. Cutouts on top of the rack can be used to secure cable bundles. Shatter-Resistant Clear Acrylic Front Window The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, it also adds visual flair to your IT installation. Easy Enclosure and Equipment Installation This 6U server rack comes fully assembled and ready to mount to the wall with user-supplied hardware. The side panels can be removed for convenient installation, maintenance and replacement of equipment. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. Front and rear mounting rails adjust independently to accommodate equipment up to 20.5 inches deep, including network switches and patch panels. Meets Payment Card Industry Standards The SRW6UDPGVRT provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.



Specification:



Weight & dimensions
Package depth	32.3" (819.9 mm)
Package width	24.4" (619.8 mm)
Package height	17.7" (450.1 mm)
Package weight	48.1 lbs (21.8 kg)
Width	29.6" (752.4 mm)
Depth	21.7" (551.5 mm)
Height	14.6" (370.3 mm)
Weight	43 lbs (19.5 kg)
Maximum weight capacity	200.6 lbs (91 kg)
Packaging content
Wall mounting kit	Yes
Manual	Yes
Nuts included	Yes
Number of nuts	22
Screws included	Yes
Number of screws	44
Number of washers included	22
Features
Key lock	Yes
Rack capacity	6U
International Protection (IP) code	IP20
Cable management	Yes
Type	Wall mounted rack
Maximum weight capacity	200.6 lbs (91 kg)
Product colour	Black
Packaging data
Wall mounting kit	Yes
Manual	Yes
Nuts included	Yes
Number of nuts	22
Package depth	32.3" (819.9 mm)
Package width	24.4" (619.8 mm)
Package height	17.7" (450.1 mm)
Package weight	48.1 lbs (21.8 kg)
Screws included	Yes
Number of screws	44
Number of washers included	22
Technical details
Package width	24.4" (619.8 mm)
Package height	17.7" (450.1 mm)
Type	Wall mounted rack
Sustainability certificates	RoHS
Harmonized System (HS) code	8517.79.0000
Rack capacity	6U
International Protection (IP) code	IP20
Colour
Product colour	Black
Logistics data
Master (outer) case width	24.4" (619.8 mm)
Master (outer) case length	32.3" (819.9 mm)
Master (outer) case height	17.7" (450.1 mm)
Master (outer) case gross weight	48.1 lbs (21.8 kg)
Products per master (outer) case	1 pc(s)
Country of origin	China
