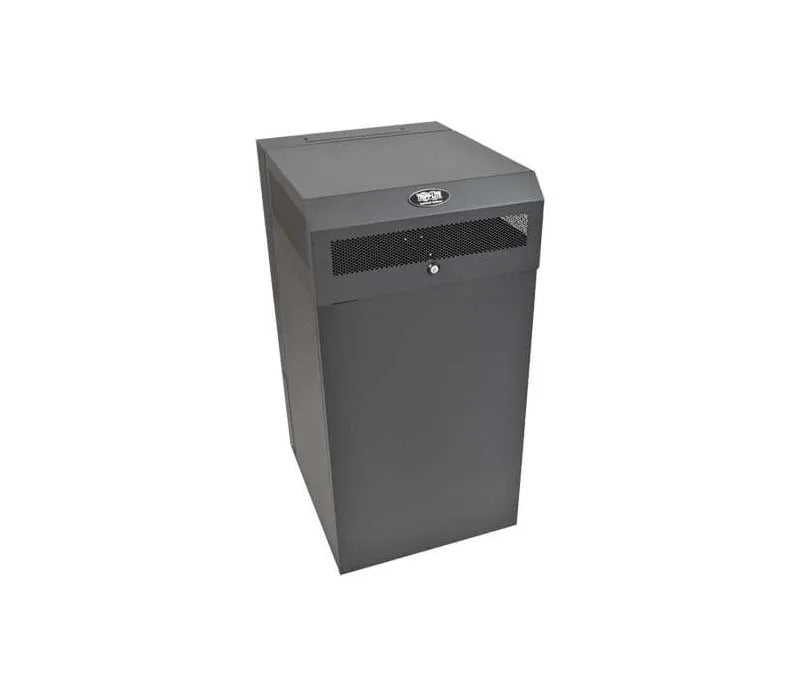

SRWF12U38 - Tripp Lite 12U WALLMOUNT LOW PROFILE VERTICAL RACK ENCLOSURE SERVER CABINET

The SRWF12U38 SmartRack 12U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices, two-post racks and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 400 lbs (181.4 kgs). Because the low-profile cabinet mounts vertically, it extends only 16 inches from the wall while housing equipment up to 35 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 8U of rack space in the primary mounting area, it also includes a 4U mounting space at the top of the enclosure for patch panels. The top cover and front panel are removable to allow expedient access to equipment. The cover also locks securely with the included keys to help prevent damage, tampering or theft. The vented cabinet allows air to flow freely and keep equipment cool. Convenient top, bottom and side ports allow easy cable routing. The SRWF12U38's modular design allows you to disassemble the cabinet in minutes for wall-mounting with user-supplied hardware. Mounting holes are spaced 16 inches apart to accommodate standard wall studs. Equipment installation is easy with threaded mounting holes that support 12-24 mounting in two-post racks. Saves Valuable Workspace Recommended for areas with limited floor space where you need equipment to be secure, organized and out of the way Houses EIA-standard 19 in. rack equipment in 8U of space Also includes 4U of mounting space at the top of the enclosure for patch panels Extends only 16 in. from the wall while housing equipment up to 35 in. deep Maximum load capacity of 400 lbs (181.4 kgs) Keeps Important Equipment Secure Top cover locks securely to help prevent damage, tampering or theft Vented cabinet keeps equipment cool Convenient ports with removable covers allow cable routing through top, bottom and sides Easy Enclosure and Equipment Installation Modular design for easy disassembly and assembly Wall-mounting holes spaced 16 in. apart for standard wall stud placement Threaded mounting holes support 12-24 mounting in 2-post racks Rack spaces marked for easy reference Meets Payment Card Industry Standards Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance



Specification:



Weight & dimensions
Package depth	26" (660.4 mm)
Package width	22.4" (570 mm)
Package height	42.9" (1089.9 mm)
Package weight	101 lbs (45.8 kg)
Mounting depth (max)	35" (88.9 cm)
Width	19.7" (500 mm)
Depth	23.2" (589 mm)
Height	38" (965.2 mm)
Weight	81.6 lbs (37 kg)
Maximum weight capacity	400000.1 lbs (181437 kg)
Packaging content
Manual	Yes
Features
Key lock	Yes
Rack capacity	16U
Type	Freestanding rack
Maximum weight capacity	400000.1 lbs (181437 kg)
Product colour	Black
Packaging data
Manual	Yes
Package depth	26" (660.4 mm)
Package width	22.4" (570 mm)
Package height	42.9" (1089.9 mm)
Package weight	101 lbs (45.8 kg)
Technical details
Package width	22.4" (570 mm)
Package height	42.9" (1089.9 mm)
Type	Freestanding rack
Harmonized System (HS) code	8517.79.0000
Rack capacity	16U
Colour
Product colour	Black
Logistics data
Master (outer) case width	22.4" (570 mm)
Master (outer) case length	26" (660.4 mm)
Master (outer) case height	42.9" (1089.9 mm)
Master (outer) case gross weight	101 lbs (45.8 kg)
Products per master (outer) case	1 pc(s)
Country of origin	China
