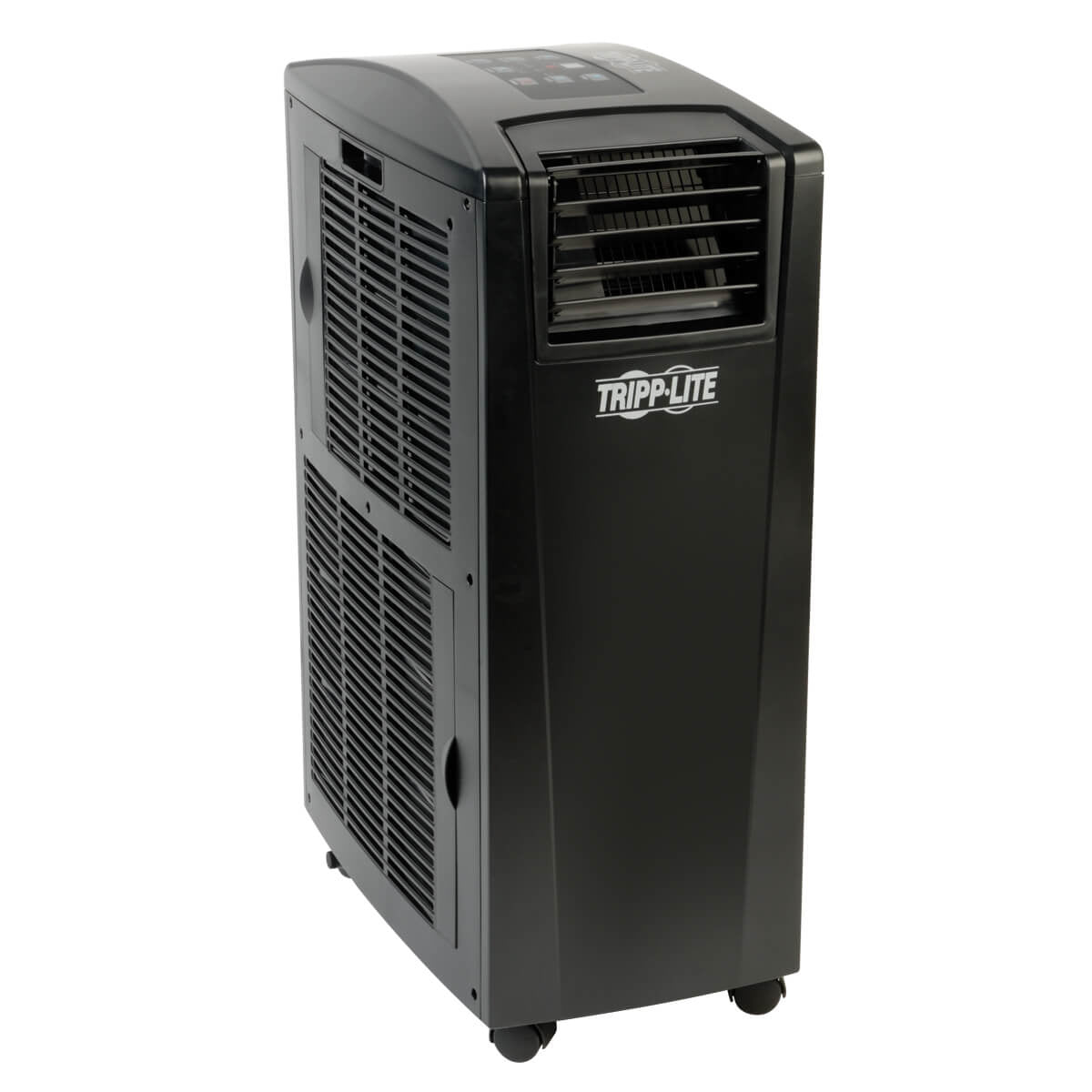

SRXCOOL12K - Tripp Lite INTL PORTABLE COOLING / AIR CONDITIONER 3.4KW 230V 50HZ 12K BTU

The SRXCOOL12K SmartRack 12,000 BTU 230V Portable Server Rack Cooling System pumps 12,000 BTU of cooling power into your IT environment to prevent shutdowns, malfunctions and failures caused by overheating or fluctuating temperatures. Part of the SRCOOL® line, this compact, portable unit is perfect for server rooms and other IT environments with heat-sensitive equipment in areas that facility air conditioning can’t reach. The self-contained SRXCOOL12K is capable of cooling a small room using its louvered vent. A built-in evaporator expels the condensed water through the directional exhaust duct, eliminating the need for a drain tube, drain pan or water collection tank. You can also use the included flexible tube to aim the cold air precisely where it’s needed most, such as an overheated rack enclosure or an equipment hot spot. The SRXCOOL12K Portable Rack Air Conditioner also dehumidifies and filters the air, providing better air quality that can enhance equipment performance with little power consumption. Designed for quick, simple installation, the SRXCOOL12K rolls on durable built-in casters and plugs into a standard Schuko CEE7 outlet. It’s programmed to restart automatically after power failures, and you can set the built-in timer for unattended shutdown and startup. By installing the optional SRCOOLNETLX remote management accessory (sold separately), you can also monitor temperatures, receive alerts, review logs and control settings from anywhere via SNMP, web browser, SSH or telnet. Compact Cooling Provides 12,000 BTU/h (3.5 kW) of cooling capacity in a portable chassis Prevents equipment shutdowns, malfunctions and failures caused by overheating and temperature fluctuations Also filters and dehumidifies the air to enhance equipment performance Uses environmentally friendly R410A refrigerant, which complies with worldwide standards Convenient Operation Included 71-inch tube aims cold air where it’s needed, such as an overheated rack enclosure or equipment hot spot Built-in evaporator expels condensed water through exhaust tube—no floor drain or water collection tank needed Supports unattended shutdown and startup, including automatic restarts after power failures Intuitive top-panel controls with an informative digital display and diagnostic LEDs System-lock function disables all other buttons to prevent accidental input Optional SRCOOLNETLX remote management accessory (sold separately) allows remote monitoring of temperatures, alerts, logs and control settings from any location via SNMP, web browser, SSH or telnet Easy to Install Rolls into place on built-in casters Plugs into a standard Schuko CEE7 outlet Includes window/drop-ceiling kit for extracting heat No external condenser, refrigerant piping or professional maintenance required



Specification:



Performance
Housing colour	Black
Rack capacity	8U
Airflow	93.5 l/s
Cooling capacity in watts (max)	2000 W
Built-in display	Yes
Display type	LCD
Noise level	57 dB
Certification	RoHS
Maximum airflow	198.25 cfm
Power
Input power	1050 W
Input voltage	230 V
Input frequency	50 Hz
Technical details
Harmonized System (HS) code	85389099
Weight & dimensions
Width	17.4" (440.7 mm)
Depth	22.5" (572 mm)
Height	13.9" (353.1 mm)
Weight	61.5 lbs (27.9 kg)
Packaging data
Package width	22.7" (576.6 mm)
Package depth	27.5" (698.5 mm)
Package height	22.8" (579.1 mm)
Package weight	80 lbs (36.3 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	22.7" (576.6 mm)
Master (outer) case gross weight	80 lbs (36.3 kg)
Master (outer) case length	27.5" (698.5 mm)
Master (outer) case height	22.8" (579.1 mm)
Country of origin	China
