Description

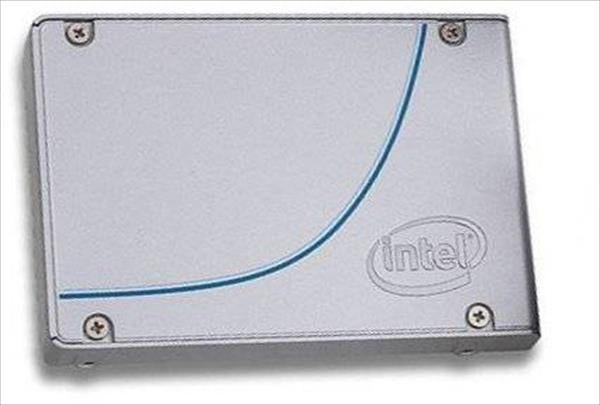

Experience the future of storage performance for desktop client and workstation users with the Intel® SSD 750 Series. The Intel SSD 750 Series delivers uncompromised performance by utilizing NVM Express over four lanes of PCIe 3.0. With both Add-in Card and 2.5-inch form factors, the Intel SSD 750 Series eases migration from SATA to PCIe 3.0 without power or thermal limitations on performance. The SSD can now deliver the ultimate in performance in a variety of system form factors and configurations.
Specification:
Hard drive | |
---|---|
PCI Express interface data lanes | x4 |
SSD capacity | 800 GB |
Memory type | MLC |
Lithography | 20 nm |
Internal | Yes |
Performance | |
Intel® Smart Response Technology | No |
Intel® Rapid Start Technology | No |
Intel High Endurance Technology (HET) | No |
Interface | PCI Express 3.0 |
SSD ARK ID | 88743 |
SSD usage tag | Consumer |
NVMe | Yes |
End-to-End Data Protection | No |
PCI Express interface data lanes | x4 |
SSD capacity | 800 GB |
S.M.A.R.T. support | Yes |
Read speed | 2500 MB/s |
Write speed | 1200 MB/s |
Memory type | MLC |
Random write (4KB) | 290000 IOPS |
Random read (4KB) | 460000 IOPS |
SSD temperature monitoring | Yes |
Mean time between failures (MTBF) | 1200000 h |
Lithography | 20 nm |
Write latency | 20 µs |
Read latency | 20 µs |
Enhanced Power Loss Data Protection technology | Yes |
Data transmission | |
Read speed | 2500 MB/s |
Write speed | 1200 MB/s |
Random write (4KB) | 290000 IOPS |
Random read (4KB) | 460000 IOPS |
Write latency | 20 µs |
Read latency | 20 µs |
Design | |
Internal | Yes |
Product colour | Gray |
SSD form factor | 2.5" |
Market segment | Mobile |
Product family | Consumer SSD |
Product series | Intel 750 |
Product codename | Carmel Ridge |
Endurance | |
Mean time between failures (MTBF) | 1200000 h |
Features | |
Interface | PCI Express 3.0 |
SSD ARK ID | 88743 |
SSD usage tag | Consumer |
NVMe | Yes |
End-to-End Data Protection | No |
PCI Express interface data lanes | x4 |
SSD capacity | 800 GB |
S.M.A.R.T. support | Yes |
Read speed | 2500 MB/s |
Write speed | 1200 MB/s |
Memory type | MLC |
Random write (4KB) | 290000 IOPS |
Random read (4KB) | 460000 IOPS |
SSD temperature monitoring | Yes |
Mean time between failures (MTBF) | 1200000 h |
Lithography | 20 nm |
Write latency | 20 µs |
Read latency | 20 µs |
Enhanced Power Loss Data Protection technology | Yes |
SSD form factor | 2.5" |
Market segment | Mobile |
Harmonized System (HS) code | 8523510000 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification Automated Tracking System (CCATS) | G149950 |
Temperature monitoring and logging | Yes |
Power | |
Power consumption (idle) | 4 W |
Brand-specific features | |
Intel® Smart Response Technology | No |
Intel® Rapid Start Technology | No |
Intel High Endurance Technology (HET) | No |
Intel Smart Response Technology version | 0.00 |
Product family | Consumer SSD |
Product series | Intel 750 |
Product codename | Carmel Ridge |
Intel Rapid Start Technology version | 0.00 |
Operational conditions | |
Operating temperature (T-T) | 0 - 55 °C |
Storage temperature (T-T) | -55 - 95 °C |
Operating shock | 1000 G |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
Maximum operating altitude | 120000" (3048 m) |
Maximum non-operating altitude | 480000" (12192 m) |
Maximum operating temperature | 55 °C |
Operating / non-operating shock | 50 G |
Technical details | |
Interface | PCI Express 3.0 |
S.M.A.R.T. support | Yes |
Operating temperature (T-T) | 0 - 55 °C |
Storage temperature (T-T) | -55 - 95 °C |
Operating shock | 1000 G |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
SSD temperature monitoring | Yes |
Processor lithography | 20 nm |
Maximum operating altitude | 120000" (3048 m) |
Maximum non-operating altitude | 480000" (12192 m) |
Intel High Endurance Technology (HET) | No |
Enhanced Power Loss Data Protection technology | Yes |
Product colour | Gray |
Power consumption (active) | 15 W |
SSD form factor | 2.5" |
Market segment | Mobile |
Intel Smart Response Technology version | 0.00 |
Intel Rapid Start Technology version | 0.00 |
Sustainability certificates | RoHS |
Status | Discontinued |
SSD weight | 6.88 oz (195 g) |
SSD shock | 50 |
SSD power consumption (idle) | 4 |
SSD power consumption (active) | 15 |
SSD endurance rating | 1.2M hours |
Sequential writing speed | 800 MB/s |
Sequential reading | 2100 MB/s |
Random write (8GB span) | 210000 IOPS |
Product name | Intel SSD 750 Series (800GB, 2.5in PCIe 3.0 x4, 20nm, MLC) |
Launch date | Q3'15 |
Drive capacity | 800 GB |
Born on date | Q3'15 |
Random read (8GB span) | 420000 IOPS |
Last change | 63903513 |
Weight & dimensions | |
Width | 3.98" (101 mm) |
Weight | 6.88 oz (195 g) |
Height | 0.591" (15 mm) |
Depth | 2.76" (70 mm) |
Packaging data | |
Quick start guide | Yes |
Packaging content | |
Quick start guide | Yes |
Other features | |
Processor lithography | 20 nm |
Product colour | Gray |
Internal | Yes |
Power consumption (active) | 15 W |
Status | Discontinued |
SSD weight | 6.88 oz (195 g) |
SSD shock | 50 |
SSD power consumption (idle) | 4 |
SSD power consumption (active) | 15 |
SSD endurance rating | 1.2M hours |
Sequential writing speed | 800 MB/s |
Sequential reading | 2100 MB/s |
Random write (8GB span) | 210000 IOPS |
Product name | Intel SSD 750 Series (800GB, 2.5in PCIe 3.0 x4, 20nm, MLC) |
Launch date | Q3'15 |
Drive capacity | 800 GB |
Born on date | Q3'15 |
Random read (8GB span) | 420000 IOPS |
Last change | 63903513 |
Product family | Consumer SSD |
Product series | Intel 750 |
Product codename | Carmel Ridge |
Intel Rapid Start Technology version | 0.00 |
