Description

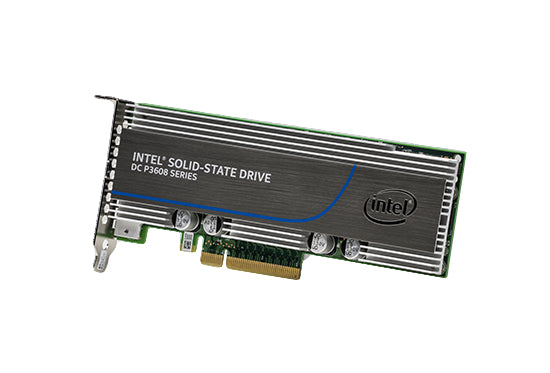

Extreme Performance – Moving Data Closer to the CPU The Intel® SSD DC P3608 Series taps into the power of the NVMe interface to deliver new levels of PCIe performance and ultra-low latency. When paired with multi-core Intel® Xeon® processors, the SSD’s unique NVMe dual controller architecture enables highly efficient scalability, evenly distributing I/O across the PCIe 3.0 x8 link to obtain real-world transfers of over 5GB/s bandwidth and up to 850,000 random read IOPS.
Specification:
Hard drive | |
---|---|
SSD capacity | 1500 GB |
Memory type | 3D XPoint |
Performance | |
Intel® Smart Response Technology | No |
Intel® Rapid Start Technology | No |
Intel High Endurance Technology (HET) | Yes |
Interface | PCI Express 3.0 |
Component for | Server/workstation |
SSD ARK ID | 97159 |
NVMe | Yes |
End-to-End Data Protection | Yes |
SSD capacity | 1500 GB |
Security algorithms | 256-bit AES |
Read speed | 2500 MB/s |
Write speed | 2200 MB/s |
Memory type | 3D XPoint |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
SSD temperature monitoring | Yes |
Random write (100% span) | 550000 IOPS |
Random read (100% span) | 550000 IOPS |
Mean time between failures (MTBF) | 2000000 h |
Write latency | 10 µs |
Read latency | 10 µs |
Hardware encryption | Yes |
Enhanced Power Loss Data Protection technology | Yes |
Data transmission | |
Read speed | 2500 MB/s |
Write speed | 2200 MB/s |
Random write (100% span) | 550000 IOPS |
Random read (100% span) | 550000 IOPS |
Write latency | 10 µs |
Read latency | 10 µs |
Security | |
Security algorithms | 256-bit AES |
Endurance | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Mean time between failures (MTBF) | 2000000 h |
Design | |
Component for | Server/workstation |
SSD form factor | Half-Height/Half-Length (HH/HL) |
Market segment | Server |
Product family | Data center SSD |
Product series | Intel® Optane™ SSD DC P4800X Series |
Product codename | Cold Stream |
Features | |
Interface | PCI Express 3.0 |
Component for | Server/workstation |
SSD ARK ID | 97159 |
NVMe | Yes |
End-to-End Data Protection | Yes |
SSD capacity | 1500 GB |
Security algorithms | 256-bit AES |
Read speed | 2500 MB/s |
Write speed | 2200 MB/s |
Memory type | 3D XPoint |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
SSD temperature monitoring | Yes |
Random write (100% span) | 550000 IOPS |
Random read (100% span) | 550000 IOPS |
Mean time between failures (MTBF) | 2000000 h |
Write latency | 10 µs |
Read latency | 10 µs |
Hardware encryption | Yes |
Enhanced Power Loss Data Protection technology | Yes |
SSD form factor | Half-Height/Half-Length (HH/HL) |
Market segment | Server |
Harmonized System (HS) code | 84717070 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification Automated Tracking System (CCATS) | G149950 |
Temperature monitoring and logging | Yes |
Power | |
Power consumption (write) | 18 W |
Power consumption (read) | 18 W |
Power consumption (idle) | 7 W |
Brand-specific features | |
Intel® Smart Response Technology | No |
Intel® Rapid Start Technology | No |
Intel High Endurance Technology (HET) | Yes |
Intel Smart Response Technology version | 0.00 |
Product family | Data center SSD |
Product series | Intel® Optane™ SSD DC P4800X Series |
Product codename | Cold Stream |
Intel Rapid Start Technology version | 0.00 |
Intel® Remote Secure Erase | No |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Operating shock | 50 G |
Non-operating shock | 50 G |
Non-operating vibration | 3.13 G |
Maximum operating temperature | 70 °C |
Operating / non-operating shock | 50G, 170 in/s, trapezoidal |
Technical details | |
Interface | PCI Express 3.0 |
Operating temperature (T-T) | 0 - 70 °C |
Operating shock | 50 G |
Non-operating shock | 50 G |
Non-operating vibration | 3.13 G |
SSD temperature monitoring | Yes |
Intel High Endurance Technology (HET) | Yes |
Hardware encryption | Yes |
Enhanced Power Loss Data Protection technology | Yes |
Power consumption (active) | 18 W |
SSD form factor | Half-Height/Half-Length (HH/HL) |
Market segment | Server |
Intel Smart Response Technology version | 0.00 |
Intel Rapid Start Technology version | 0.00 |
Processor family | Intel Optane DC SSD |
Status | Launched |
SSD shock | 50G, 170 in/s, trapezoidal |
SSD power consumption (idle) | 7 |
SSD power consumption (active) | 18 |
SSD hardware encryption | AES 256 bit |
SSD endurance rating | 164 PBW |
Sequential writing speed | 2200 MB/s |
Sequential reading | 2500 MB/s |
Product brief URL | https://www.intel.com/content/www/us/en/solid-state-drives/optane-ssd-dc-p4800x-brief.html |
Launch date | Q3'18 |
Drive capacity | 1500 GB |
Last change | 63903513 |
Remote Secure Erase (RSE) technology version | 0.00 |
Other features | |
Processor family | Intel Optane DC SSD |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Power consumption (active) | 18 W |
Status | Launched |
SSD shock | 50G, 170 in/s, trapezoidal |
SSD power consumption (idle) | 7 |
SSD power consumption (active) | 18 |
SSD hardware encryption | AES 256 bit |
SSD endurance rating | 164 PBW |
Sequential writing speed | 2200 MB/s |
Sequential reading | 2500 MB/s |
Product brief URL | https://www.intel.com/content/www/us/en/solid-state-drives/optane-ssd-dc-p4800x-brief.html |
Launch date | Q3'18 |
Drive capacity | 1500 GB |
Last change | 63903513 |
Product family | Data center SSD |
Product series | Intel® Optane™ SSD DC P4800X Series |
Product codename | Cold Stream |
Intel Rapid Start Technology version | 0.00 |
Remote Secure Erase (RSE) technology version | 0.00 |
Target market | Artificial Intelligence, Cloud Computing, High Performance Computing |
