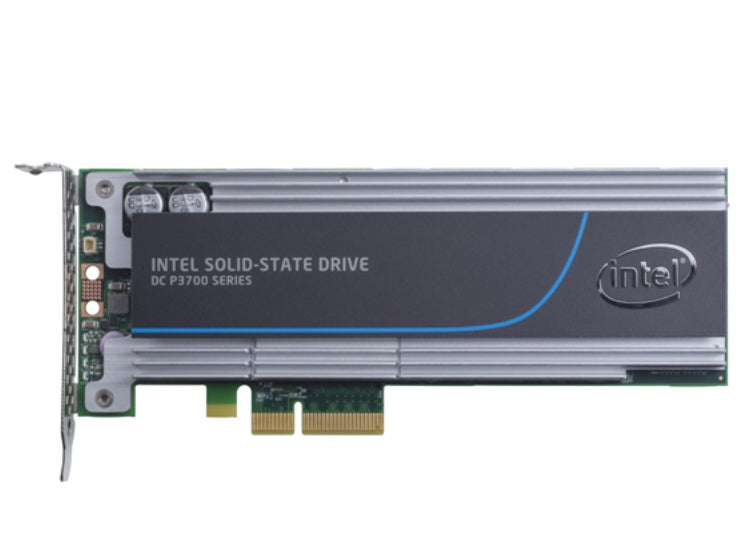

SSDPEDMD020T401 - Intel P3700 2.0TB PCIE SSD 20NM MLC

Breakthrough performance The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS). Modernizes data center storage Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology. Comprehensive solution Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications. Proven quality and reliability Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.



Specification:



Hard drive
PCI Express interface data lanes	x4
SSD capacity	800 GB
Memory type	MLC
Lithography	20 nm
Internal	Yes
Performance
Intel High Endurance Technology (HET)	Yes
Interface	PCI Express 3.0
SSD ARK ID	79626
SSD usage tag	Data center
NVMe	Yes
Random read (8KB)	285000 IOPS
Random write (8KB)	45000 IOPS
End-to-End Data Protection	Yes
PCI Express interface data lanes	x4
SSD capacity	800 GB
Read speed	2800 MB/s
Write speed	1900 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	90000 IOPS
Random read (4KB)	460000 IOPS
SSD temperature monitoring	Yes
Random write (100% span)	90000 IOPS
Random read (100% span)	460000 IOPS
Mean time between failures (MTBF)	2000000 h
Lithography	20 nm
Write latency	20 µs
Read latency	20 µs
Enhanced Power Loss Data Protection technology	Yes
PCI Express CEM revision	2.0
Data transmission
Read speed	2800 MB/s
Write speed	1900 MB/s
Random write (4KB)	90000 IOPS
Random read (4KB)	460000 IOPS
Random write (100% span)	90000 IOPS
Random read (100% span)	460000 IOPS
Write latency	20 µs
Read latency	20 µs
Design
Internal	Yes
Product colour	Gray
Certification	UL, CE, C-Tick, BSMI, KCC, Microsoft WHQL, VCCI
SSD form factor	Half-Height/Half-Length (HH/HL)
Market segment	Server
Product family	Data center SSD
Product series	Intel DC P3700
Product codename	Fultondale
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Certificates
Certification	UL, CE, C-Tick, BSMI, KCC, Microsoft WHQL, VCCI
Features
Interface	PCI Express 3.0
SSD ARK ID	79626
SSD usage tag	Data center
NVMe	Yes
Random read (8KB)	285000 IOPS
Random write (8KB)	45000 IOPS
End-to-End Data Protection	Yes
PCI Express interface data lanes	x4
SSD capacity	800 GB
Read speed	2800 MB/s
Write speed	1900 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	90000 IOPS
Random read (4KB)	460000 IOPS
SSD temperature monitoring	Yes
Random write (100% span)	90000 IOPS
Random read (100% span)	460000 IOPS
Mean time between failures (MTBF)	2000000 h
Lithography	20 nm
Write latency	20 µs
Read latency	20 µs
Enhanced Power Loss Data Protection technology	Yes
Certification	UL, CE, C-Tick, BSMI, KCC, Microsoft WHQL, VCCI
SSD form factor	Half-Height/Half-Length (HH/HL)
Market segment	Server
PCI Express CEM revision	2.0
Harmonized System (HS) code	84717070
Power
Power consumption (idle)	4 W
Brand-specific features
Intel High Endurance Technology (HET)	Yes
Product family	Data center SSD
Product series	Intel DC P3700
Product codename	Fultondale
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-55 - 95 °C
Operating shock	50 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	120000" (3048 m)
Maximum non-operating altitude	480000" (12192 m)
Technical details
Interface	PCI Express 3.0
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-55 - 95 °C
Operating shock	50 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
SSD temperature monitoring	Yes
Processor lithography	20 nm
Maximum operating altitude	120000" (3048 m)
Maximum non-operating altitude	480000" (12192 m)
Intel High Endurance Technology (HET)	Yes
Enhanced Power Loss Data Protection technology	Yes
Product colour	Gray
SSD form factor	Half-Height/Half-Length (HH/HL)
Market segment	Server
Sustainability certificates	RoHS
Status	Discontinued
SSD weight	185gm
SSD shock	50 G Trapezoidal, 170 in/s
SSD power consumption (idle)	4W
SSD power consumption (active)	18W (write), 9W (read)
SSD endurance rating	14.6 PBW (JEDEC Workload), 10 DWPD
Sequential writing speed	1900 MB/s
Sequential reading	2800 MB/s
Product name	Intel SSD DC P3700 Series (800GB, 1/2 Height PCIe 3.0, 20nm, MLC)
Product brief URL	http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/intel-ssd-dc-family-for-pcie-brief.pdf
Launch date	Q2'14
Drive capacity	800 GB
Born on date	Q2'14
Last change	63903513
Weight & dimensions
Weight	6.53 oz (185 g)
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Processor lithography	20 nm
Product colour	Gray
Internal	Yes
Status	Discontinued
SSD weight	185gm
SSD shock	50 G Trapezoidal, 170 in/s
SSD power consumption (idle)	4W
SSD power consumption (active)	18W (write), 9W (read)
SSD endurance rating	14.6 PBW (JEDEC Workload), 10 DWPD
Sequential writing speed	1900 MB/s
Sequential reading	2800 MB/s
Product name	Intel SSD DC P3700 Series (800GB, 1/2 Height PCIe 3.0, 20nm, MLC)
Product brief URL	http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/intel-ssd-dc-family-for-pcie-brief.pdf
Launch date	Q2'14
Drive capacity	800 GB
Born on date	Q2'14
Last change	63903513
Product family	Data center SSD
Product series	Intel DC P3700
Product codename	Fultondale
