Description

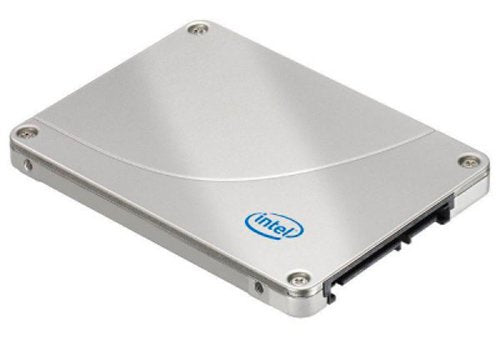

High-Performance Storage for Notebook and Desktop PCs The Intel® X25-M and X18-M Mainstream SATA Solid-State Drive (SSD) brings a new level of performance and reliability to laptop and desktop PC storage. Wait less. Do more. Why wait for a traditional hard disk drive to spin up? Unlike traditional hard disk drives, Intel solid-state drives have no moving parts, resulting in a quiet, cool, highly rugged storage solution that also offers faster system responsiveness. And for laptop PCs, the lower power needs of Intel SSDs translate to longer battery life and lighter notebooks. Higher performance with more durability means you can be truly mobile with confidence. Better by design Drawing from decades of memory engineering experience, Intel Mainstream SATA Solid-State Drives are designed to deliver outstanding performance, featuring the latest-generation native SATA interface with an advanced architecture employing 10 parallel NAND flash channels equipped with multi-level cell NAND flash memory. With powerful Native Command Queuing to enable up to 32 concurrent operations, Intel Mainstream SATA SSDs deliver higher input/output per second and throughput performance than other SSDs on the market today - and drastically outperform traditional hard disk drives. These drives also feature low write amplification and a unique wear-leveling design for higher reliability, meaning Intel drives not only perform better - they last longer. Two options. No worries. Intel® Mainstream Solid-State Drives are available in either 2.5in (Intel® X25-M Mainstream SATA Solid-State Drive) or 1.8in (Intel® X18-M Mainstream SATA Solid-State Drive) standard hard drive form factors. And all Intel Mainstream SSDs are tested and validated on the latest Intel-based mobile and desktop platforms for your peace of mind.
Specification:
Hard drive | |
---|---|
SSD capacity | 160 GB |
Memory type | MLC |
Lithography | 34 nm |
Access time | 0.5 ms |
Internal | No |
Data transmission | |
Read speed | 250 MB/s |
Write speed | 100 MB/s |
Random write (4KB) | 8600 IOPS |
Random read (4KB) | 35000 IOPS |
Random write (100% span) | 300 IOPS |
Random read (100% span) | 35000 IOPS |
Write latency | 85 µs |
Read latency | 65 µs |
Data transfer rate | 3 Gbit/s |
Design | |
Internal | No |
Product colour | White |
SSD form factor | 2.5" |
Market segment | Mobile |
Product family | Legacy consumer SSD |
Product series | Intel X25-M |
Product codename | Postville |
Endurance | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^16 bits read |
Mean time between failures (MTBF) | 1200000 h |
Performance | |
Interface | Serial ATA III |
SSD ARK ID | 56600 |
SSD capacity | 160 GB |
Read speed | 250 MB/s |
Write speed | 100 MB/s |
Memory type | MLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^16 bits read |
Random write (4KB) | 8600 IOPS |
Random read (4KB) | 35000 IOPS |
Random write (100% span) | 300 IOPS |
Random read (100% span) | 35000 IOPS |
Mean time between failures (MTBF) | 1200000 h |
Lithography | 34 nm |
Write latency | 85 µs |
Read latency | 65 µs |
Enhanced Power Loss Data Protection technology | No |
Data transfer rate | 3 Gbit/s |
Access time | 0.5 ms |
Compatible products | Intel S5520UR, S5520HC, S5500HCV, S3420GPLX, MFS5520VIR, S2600CP2, S5520HCT, S2600CP2J, SR1630HGP, SC5650BCDPR, SR2625URLXT, SR1630HGPRX |
Features | |
Interface | Serial ATA III |
SSD ARK ID | 56600 |
SSD capacity | 160 GB |
Read speed | 250 MB/s |
Write speed | 100 MB/s |
Memory type | MLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^16 bits read |
Random write (4KB) | 8600 IOPS |
Random read (4KB) | 35000 IOPS |
Random write (100% span) | 300 IOPS |
Random read (100% span) | 35000 IOPS |
Mean time between failures (MTBF) | 1200000 h |
Lithography | 34 nm |
Write latency | 85 µs |
Read latency | 65 µs |
Enhanced Power Loss Data Protection technology | No |
Data transfer rate | 3 Gbit/s |
Access time | 0.5 ms |
SSD form factor | 2.5" |
Market segment | Mobile |
Compatible products | Intel S5520UR, S5520HC, S5500HCV, S3420GPLX, MFS5520VIR, S2600CP2, S5520HCT, S2600CP2J, SR1630HGP, SC5650BCDPR, SR2625URLXT, SR1630HGPRX |
Harmonized System (HS) code | 8523510000 |
Power | |
Power consumption (write) | 3 W |
Power consumption (standby) | 0.06 W |
Brand-specific features | |
Product family | Legacy consumer SSD |
Product series | Intel X25-M |
Product codename | Postville |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Operating shock | 1500 G |
Non-operating shock | 1500 G |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
Maximum operating temperature | 70 °C |
Operating / non-operating shock | 1,500 G/.5 msec |
Technical details | |
Interface | Serial ATA III |
Operating temperature (T-T) | 0 - 70 °C |
Operating shock | 1500 G |
Non-operating shock | 1500 G |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
Processor lithography | 34 nm |
Enhanced Power Loss Data Protection technology | No |
Product colour | White |
SSD form factor | 2.5" |
Market segment | Mobile |
Status | Discontinued |
SSD weight | up to 80 ± 2 grams |
SSD shock | 1,500 G/.5 msec |
SSD power consumption (idle) | 75 mw (DIPM), .06 W (Non-DIPM) |
SSD power consumption (active) | 150 mw (MobileMark 2007 Workload), 3.0 W (64K Sequential Write) |
SSD components | Intel NAND Flash Memory Multi-Level Cell (MLC) Technology |
Sequential writing speed | 100 MB/s |
Sequential reading | 250 MB/s |
Random write (8GB span) | 8600 IOPS |
Product name | Intel SSD X25-M Series (160GB, 2.5in SATA 3Gb/s, 34nm, MLC) |
Launch date | Q3'09 |
Drive capacity | 160 GB |
Born on date | Q3'09 |
Random read (8GB span) | 35000 IOPS |
Last change | 63903513 |
Weight & dimensions | |
Weight | 2.82 oz (80 g) |
Other features | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^16 bits read |
Processor lithography | 34 nm |
Product colour | White |
Internal | No |
Status | Discontinued |
SSD weight | up to 80 ± 2 grams |
SSD shock | 1,500 G/.5 msec |
SSD power consumption (idle) | 75 mw (DIPM), .06 W (Non-DIPM) |
SSD power consumption (active) | 150 mw (MobileMark 2007 Workload), 3.0 W (64K Sequential Write) |
SSD components | Intel NAND Flash Memory Multi-Level Cell (MLC) Technology |
Sequential writing speed | 100 MB/s |
Sequential reading | 250 MB/s |
Random write (8GB span) | 8600 IOPS |
Product name | Intel SSD X25-M Series (160GB, 2.5in SATA 3Gb/s, 34nm, MLC) |
Launch date | Q3'09 |
Drive capacity | 160 GB |
Born on date | Q3'09 |
Random read (8GB span) | 35000 IOPS |
Last change | 63903513 |
Product family | Legacy consumer SSD |
Product series | Intel X25-M |
Product codename | Postville |
