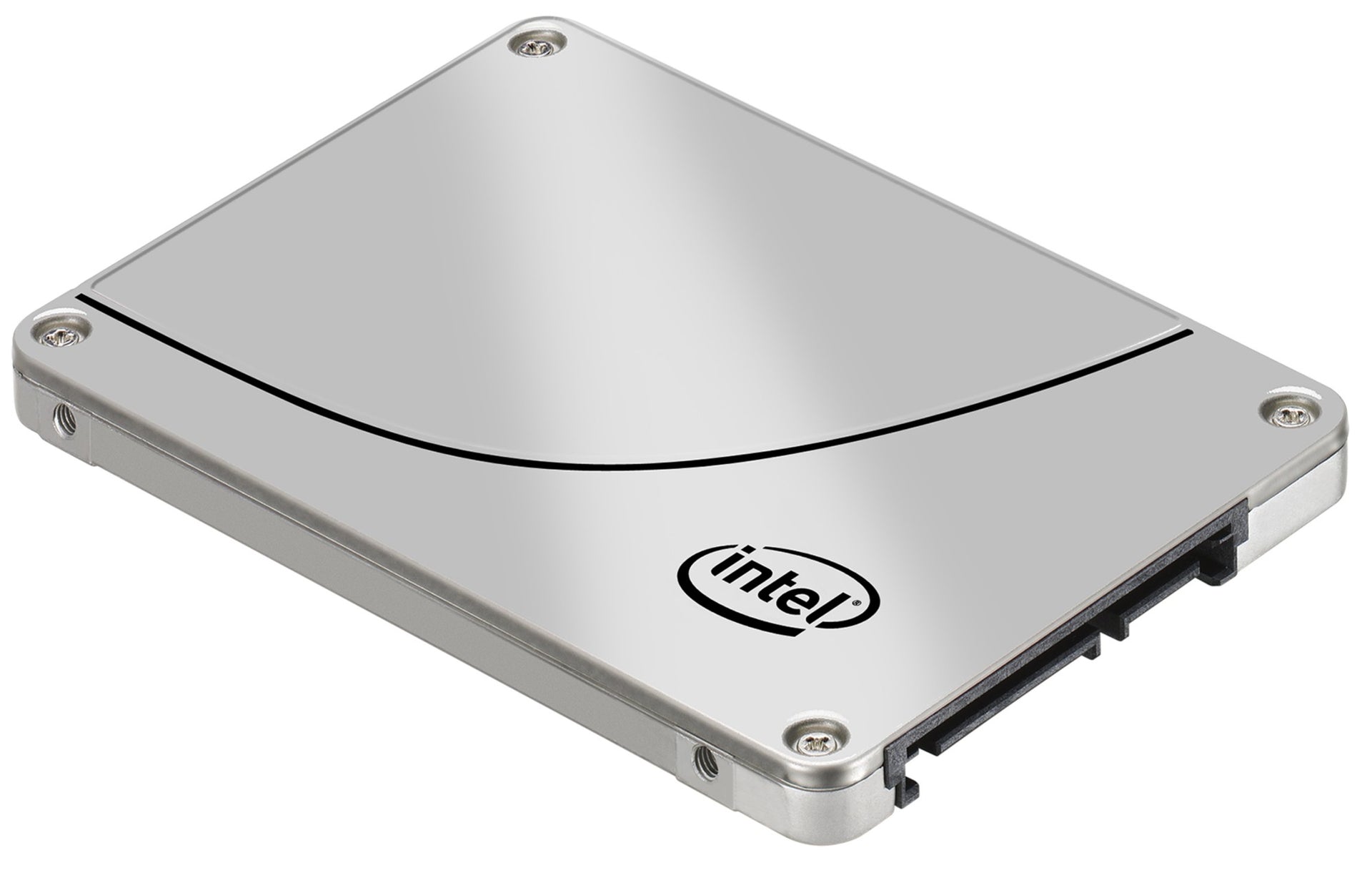

SSDSC2BB080G401 - Intel S3500 80GB SATA SSD 6G 20NM 2.5

Intel® Solid-State Drives (Intel® SSDs) are more reliable and consume less power than traditional hard drives. They also clock in with faster boot times, application launches, file loads, sleep recovery, and benchmarks. This means that improved performance, increased reliability, and lower operating costs are just a few of the benefits you’ll reap when using Intel® Solid-State Drives. Intel SSDs with High Endurance Technology enable a whole new way of looking at data center and cloud storage solutions. These Intel SSDs are designed for high-write endurance, extreme performance, and data protection.



Specification:



Hard drive
SSD capacity	80 GB
Memory type	MLC
Lithography	16 nm
Internal	No
Performance
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Windows operating systems supported	Windows 7 Enterprise, Windows 8, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows 7 Home Basic x64, Windows 8 Pro, Windows 7 Home Premium, Windows 8 Pro x64, Windows 7 Home Premium x64, Windows 8 x64, Windows 7 Professional, Windows 8.1, Windows 7 Professional x64, Windows 8.1 Enterprise, Windows 7 Starter, Windows 8.1 Enterprise x64, Windows 7 Starter x64, Windows 8.1 Pro, Windows 7 Ultimate, Windows 8.1 Pro x64, Windows 7 Ultimate x64, Windows 8.1 x64
Intel High Endurance Technology (HET)	No
Interface	Serial ATA III
SSD ARK ID	86200
SSD usage tag	Data center
Random read (8KB)	41500 IOPS
Random write (8KB)	4200 IOPS
TBW rating	45
End-to-End Data Protection	Yes
SSD capacity	80 GB
Security algorithms	256-bit AES
Read speed	375 MB/s
Write speed	110 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	8400 IOPS
Random read (4KB)	68000 IOPS
SSD temperature monitoring	Yes
Random write (100% span)	8400 IOPS
Random read (100% span)	68000 IOPS
Mean time between failures (MTBF)	2000000 h
Lithography	16 nm
Write latency	66 µs
Read latency	55 µs
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	6 Gbit/s
Data transmission
Read speed	375 MB/s
Write speed	110 MB/s
Random write (4KB)	8400 IOPS
Random read (4KB)	68000 IOPS
Random write (100% span)	8400 IOPS
Random read (100% span)	68000 IOPS
Write latency	66 µs
Read latency	55 µs
Data transfer rate	6 Gbit/s
Design
Internal	No
Product colour	Silver
Certification	UL, CE, C-Tick, BSMI, KCC, Microsoft WHCK, VCCI, SATA-IO
SSD form factor	2.5"
Market segment	Server
Product family	Data center SSD
Product series	Intel DC S3510
Product codename	Haleyville
Security
Security algorithms	256-bit AES
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Certificates
Certification	UL, CE, C-Tick, BSMI, KCC, Microsoft WHCK, VCCI, SATA-IO
System requirements
Windows operating systems supported	Windows 7 Enterprise, Windows 8, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows 7 Home Basic x64, Windows 8 Pro, Windows 7 Home Premium, Windows 8 Pro x64, Windows 7 Home Premium x64, Windows 8 x64, Windows 7 Professional, Windows 8.1, Windows 7 Professional x64, Windows 8.1 Enterprise, Windows 7 Starter, Windows 8.1 Enterprise x64, Windows 7 Starter x64, Windows 8.1 Pro, Windows 7 Ultimate, Windows 8.1 Pro x64, Windows 7 Ultimate x64, Windows 8.1 x64
Features
Interface	Serial ATA III
SSD ARK ID	86200
SSD usage tag	Data center
Random read (8KB)	41500 IOPS
Random write (8KB)	4200 IOPS
TBW rating	45
End-to-End Data Protection	Yes
SSD capacity	80 GB
Windows operating systems supported	Windows 7 Enterprise, Windows 8, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows 7 Home Basic x64, Windows 8 Pro, Windows 7 Home Premium, Windows 8 Pro x64, Windows 7 Home Premium x64, Windows 8 x64, Windows 7 Professional, Windows 8.1, Windows 7 Professional x64, Windows 8.1 Enterprise, Windows 7 Starter, Windows 8.1 Enterprise x64, Windows 7 Starter x64, Windows 8.1 Pro, Windows 7 Ultimate, Windows 8.1 Pro x64, Windows 7 Ultimate x64, Windows 8.1 x64
Security algorithms	256-bit AES
Read speed	375 MB/s
Write speed	110 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	8400 IOPS
Random read (4KB)	68000 IOPS
SSD temperature monitoring	Yes
Random write (100% span)	8400 IOPS
Random read (100% span)	68000 IOPS
Mean time between failures (MTBF)	2000000 h
Lithography	16 nm
Write latency	66 µs
Read latency	55 µs
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	6 Gbit/s
Certification	UL, CE, C-Tick, BSMI, KCC, Microsoft WHCK, VCCI, SATA-IO
SSD form factor	2.5"
Market segment	Server
Power
Power consumption (write)	1.91 W
Power consumption (read)	1.93 W
Power consumption (idle)	0.6 W
Brand-specific features
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel High Endurance Technology (HET)	No
Intel Smart Response Technology version	0.00
Product family	Data center SSD
Product series	Intel DC S3510
Product codename	Haleyville
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 95 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	590551.2" (15000 m)
Maximum non-operating altitude	1574803.1" (40000 m)
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 95 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
SSD temperature monitoring	Yes
Processor lithography	16 nm
Maximum operating altitude	590551.2" (15000 m)
Maximum non-operating altitude	1574803.1" (40000 m)
Intel High Endurance Technology (HET)	No
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Product colour	Silver
Power consumption (active)	5.59 W
SSD form factor	2.5"
Market segment	Server
Intel Smart Response Technology version	0.00
Status	Launched
SSD weight	3.1 oz (88 g)
SSD shock	1000G/0.5 msec
SSD power consumption (idle)	600 mW
SSD power consumption (active)	1.91 W
SSD hardware encryption	AES 256 bit
SSD endurance rating	45 TBW
Sequential writing speed	110 MB/s
Sequential reading	375 MB/s
Product name	Intel SSD DC S3510 Series (80GB, 2.5in SATA 6Gb/s, 16nm, MLC)
Launch date	2015-05-04T00:00:00
Drive capacity	80 GB
Born on date	Q2'15
Software
Windows operating systems supported	Windows 7 Enterprise, Windows 8, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows 7 Home Basic x64, Windows 8 Pro, Windows 7 Home Premium, Windows 8 Pro x64, Windows 7 Home Premium x64, Windows 8 x64, Windows 7 Professional, Windows 8.1, Windows 7 Professional x64, Windows 8.1 Enterprise, Windows 7 Starter, Windows 8.1 Enterprise x64, Windows 7 Starter x64, Windows 8.1 Pro, Windows 7 Ultimate, Windows 8.1 Pro x64, Windows 7 Ultimate x64, Windows 8.1 x64
Weight & dimensions
Weight	3.1 oz (88 g)
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Processor lithography	16 nm
Product colour	Silver
Internal	No
Power consumption (active)	5.59 W
Status	Launched
SSD weight	3.1 oz (88 g)
SSD shock	1000G/0.5 msec
SSD power consumption (idle)	600 mW
SSD power consumption (active)	1.91 W
SSD hardware encryption	AES 256 bit
SSD endurance rating	45 TBW
Sequential writing speed	110 MB/s
Sequential reading	375 MB/s
Product name	Intel SSD DC S3510 Series (80GB, 2.5in SATA 6Gb/s, 16nm, MLC)
Launch date	2015-05-04T00:00:00
Drive capacity	80 GB
Born on date	Q2'15
Product family	Data center SSD
Product series	Intel DC S3510
Product codename	Haleyville
