Description

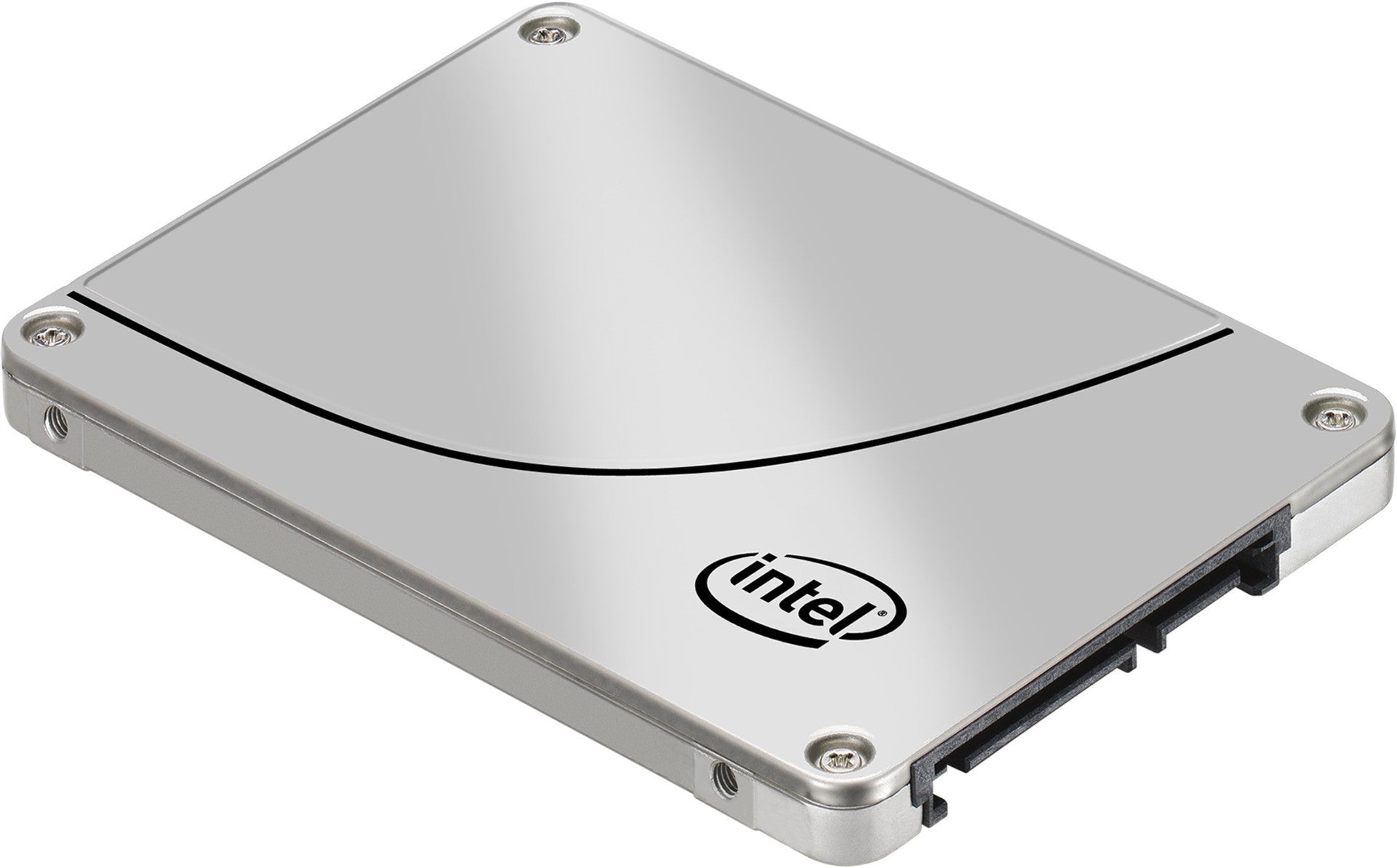

The Intel SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS) delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades. Key features and benefits of this drive include an Intel 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.
Specification:
Hard drive | |
---|---|
SSD capacity | 160 GB |
Memory type | MLC |
Lithography | 20 nm |
Internal | Yes |
Performance | |
Intel® Smart Response Technology | No |
Intel® Rapid Start Technology | No |
Windows operating systems supported | Yes |
Intel High Endurance Technology (HET) | No |
Interface | Serial ATA III |
SSD ARK ID | 75679 |
SSD usage tag | Data center |
End-to-End Data Protection | Yes |
SSD capacity | 160 GB |
Security algorithms | 256-bit AES |
S.M.A.R.T. support | Yes |
Read speed | 475 MB/s |
Write speed | 175 MB/s |
Memory type | MLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Random write (4KB) | 7500 IOPS |
Random read (4KB) | 75000 IOPS |
SSD temperature monitoring | Yes |
Random write (100% span) | 7500 IOPS |
Random read (100% span) | 75000 IOPS |
Mean time between failures (MTBF) | 2000000 h |
Lithography | 20 nm |
Write latency | 65 µs |
Read latency | 50 µs |
Enhanced Power Loss Data Protection technology | Yes |
Data transfer rate | 6 Gbit/s |
Data transmission | |
Read speed | 475 MB/s |
Write speed | 175 MB/s |
Random write (4KB) | 7500 IOPS |
Random read (4KB) | 75000 IOPS |
Random write (100% span) | 7500 IOPS |
Random read (100% span) | 75000 IOPS |
Write latency | 65 µs |
Read latency | 50 µs |
Data transfer rate | 6 Gbit/s |
Design | |
Internal | Yes |
Product colour | Silver |
SSD form factor | 2.5" |
Market segment | Server |
Product family | Data center SSD |
Product series | Intel DC S3500 |
Product codename | Wolfsville |
Security | |
Security algorithms | 256-bit AES |
Endurance | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Mean time between failures (MTBF) | 2000000 h |
System requirements | |
Windows operating systems supported | Yes |
Features | |
Interface | Serial ATA III |
SSD ARK ID | 75679 |
SSD usage tag | Data center |
End-to-End Data Protection | Yes |
SSD capacity | 160 GB |
Windows operating systems supported | Yes |
Security algorithms | 256-bit AES |
S.M.A.R.T. support | Yes |
Read speed | 475 MB/s |
Write speed | 175 MB/s |
Memory type | MLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Random write (4KB) | 7500 IOPS |
Random read (4KB) | 75000 IOPS |
SSD temperature monitoring | Yes |
Random write (100% span) | 7500 IOPS |
Random read (100% span) | 75000 IOPS |
Mean time between failures (MTBF) | 2000000 h |
Lithography | 20 nm |
Write latency | 65 µs |
Read latency | 50 µs |
Enhanced Power Loss Data Protection technology | Yes |
Data transfer rate | 6 Gbit/s |
SSD form factor | 2.5" |
Market segment | Server |
Power | |
Power consumption (write) | 5 W |
Power consumption (read) | 1.3 W |
Power consumption (idle) | 0.65 W |
Brand-specific features | |
Intel® Smart Response Technology | No |
Intel® Rapid Start Technology | No |
Intel High Endurance Technology (HET) | No |
Intel Smart Response Technology version | 0.00 |
Product family | Data center SSD |
Product series | Intel DC S3500 |
Product codename | Wolfsville |
Intel Rapid Start Technology version | 0.00 |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
Technical details | |
Interface | Serial ATA III |
S.M.A.R.T. support | Yes |
Operating temperature (T-T) | 0 - 70 °C |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
SSD temperature monitoring | Yes |
Processor lithography | 20 nm |
Intel High Endurance Technology (HET) | No |
Enhanced Power Loss Data Protection technology | Yes |
Product colour | Silver |
SSD form factor | 2.5" |
Market segment | Server |
Intel Smart Response Technology version | 0.00 |
Intel Rapid Start Technology version | 0.00 |
Status | Discontinued |
SSD weight | 2.47 oz (70 g) |
SSD shock | 1,000 G (Max) at 0.5 msec |
SSD power consumption (idle) | 0.9W |
SSD power consumption (active) | 2.5W |
SSD hardware encryption | AES 256 bit |
SSD endurance rating | 100 TBW |
Sequential writing speed | 175 MB/s |
Sequential reading | 475 MB/s |
Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html |
Launch date | Q2'13 |
Drive capacity | 160 GB |
Last change | 63903513 |
Software | |
Windows operating systems supported | Yes |
Weight & dimensions | |
Weight | 2.47 oz (70 g) |
Height | 0.276" (7 mm) |
Other features | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Processor lithography | 20 nm |
Product colour | Silver |
Internal | Yes |
Status | Discontinued |
SSD weight | 2.47 oz (70 g) |
SSD shock | 1,000 G (Max) at 0.5 msec |
SSD power consumption (idle) | 0.9W |
SSD power consumption (active) | 2.5W |
SSD hardware encryption | AES 256 bit |
SSD endurance rating | 100 TBW |
Sequential writing speed | 175 MB/s |
Sequential reading | 475 MB/s |
Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html |
Launch date | Q2'13 |
Drive capacity | 160 GB |
Last change | 63903513 |
Product family | Data center SSD |
Product series | Intel DC S3500 |
Product codename | Wolfsville |
Intel Rapid Start Technology version | 0.00 |
