Description

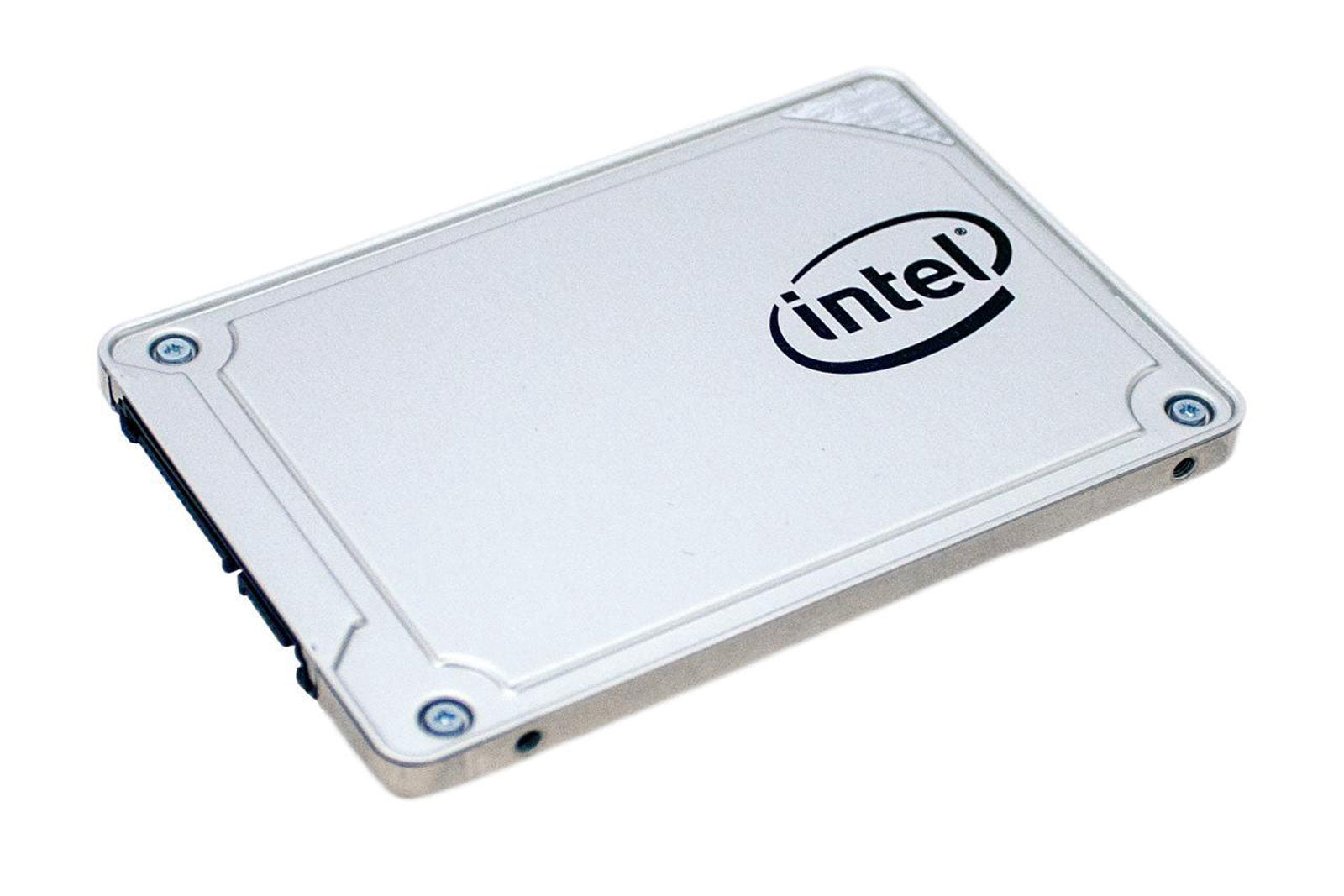

Boost PC Performance Replace your HDD with an Intel® SSD 545s Series and accelerate your computer performance immediately. With performance faster than an HDD, you'll see quicker boot-ups, more responsive applications, and faster file transfers for less waiting and more doing. Reliable Quality Intel is a leader in quality and reliability. Every Intel® SSD is subject to rigorous testing standards above and beyond the standard quality requirements. The Intel SSD 545s Series supports AES 256-bit self-encryption to protect your data and is backed by a 5-year limited warranty. Easy Upgrade or Install The standard 2.5-inch form factor fits easily into most PCs. With Intel® Data Migration Software, copying data from your old drive to the SSD is simple. Industry Leading Innovation The Intel SSD 545s Series features 64-layer Intel® 3D NAND technology that enables higher drive capacities and delivers a cost-effective replacement for traditional HDDs.
Specification:
Hard drive | |
---|---|
SSD capacity | 120 GB |
Memory type | MLC |
Lithography | 20 nm |
Internal | Yes |
Performance | |
Intel® Smart Response Technology | No |
Intel® Rapid Start Technology | No |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Intel High Endurance Technology (HET) | No |
Interface | Serial ATA III |
SSD ARK ID | 82113 |
SSD usage tag | Data center |
End-to-End Data Protection | Yes |
SSD capacity | 120 GB |
Security algorithms | 256-bit AES |
S.M.A.R.T. support | Yes |
Read speed | 440 MB/s |
TRIM support | Yes |
Write speed | 160 MB/s |
Memory type | MLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^16 bits read |
Random write (4KB) | 12000 IOPS |
Random read (4KB) | 67000 IOPS |
SSD temperature monitoring | Yes |
Random write (100% span) | 12000 IOPS |
Random read (100% span) | 65000 IOPS |
Native Command Queuing (NCQ) | Yes |
Mean time between failures (MTBF) | 2000000 h |
Lithography | 20 nm |
Write latency | 65 µs |
Read latency | 50 µs |
Enhanced Power Loss Data Protection technology | Yes |
Data transfer rate | 6 Gbit/s |
Data transmission | |
Read speed | 440 MB/s |
Write speed | 160 MB/s |
Random write (4KB) | 12000 IOPS |
Random read (4KB) | 67000 IOPS |
Random write (100% span) | 12000 IOPS |
Random read (100% span) | 65000 IOPS |
Write latency | 65 µs |
Read latency | 50 µs |
Data transfer rate | 6 Gbit/s |
Design | |
Internal | Yes |
Market segment | Server |
Product family | Data center SSD |
Product series | Intel DC S3500 |
Product codename | Wolfsville |
Security | |
Security algorithms | 256-bit AES |
Endurance | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^16 bits read |
Mean time between failures (MTBF) | 2000000 h |
System requirements | |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Features | |
Interface | Serial ATA III |
SSD ARK ID | 82113 |
SSD usage tag | Data center |
End-to-End Data Protection | Yes |
SSD capacity | 120 GB |
Windows operating systems supported | Yes |
Security algorithms | 256-bit AES |
S.M.A.R.T. support | Yes |
Read speed | 440 MB/s |
TRIM support | Yes |
Write speed | 160 MB/s |
Linux operating systems supported | Yes |
Memory type | MLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^16 bits read |
Random write (4KB) | 12000 IOPS |
Random read (4KB) | 67000 IOPS |
SSD temperature monitoring | Yes |
Random write (100% span) | 12000 IOPS |
Random read (100% span) | 65000 IOPS |
Native Command Queuing (NCQ) | Yes |
Mean time between failures (MTBF) | 2000000 h |
Lithography | 20 nm |
Write latency | 65 µs |
Read latency | 50 µs |
Enhanced Power Loss Data Protection technology | Yes |
Data transfer rate | 6 Gbit/s |
Market segment | Server |
Power | |
Power consumption (write) | 2.3 W |
Power consumption (read) | 2.3 W |
Power consumption (idle) | 0.5 W |
Brand-specific features | |
Intel® Smart Response Technology | No |
Intel® Rapid Start Technology | No |
Intel High Endurance Technology (HET) | No |
Intel Smart Response Technology version | 0.00 |
Product family | Data center SSD |
Product series | Intel DC S3500 |
Product codename | Wolfsville |
Intel Rapid Start Technology version | 0.00 |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -55 - 95 °C |
Operating shock | 1000 G |
Non-operating shock | 1000 G |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
Technical details | |
Interface | Serial ATA III |
S.M.A.R.T. support | Yes |
Operating temperature (T-T) | 0 - 70 °C |
TRIM support | Yes |
Storage temperature (T-T) | -55 - 95 °C |
Operating shock | 1000 G |
Non-operating shock | 1000 G |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
SSD temperature monitoring | Yes |
Processor lithography | 20 nm |
Native Command Queuing (NCQ) | Yes |
Intel High Endurance Technology (HET) | No |
Enhanced Power Loss Data Protection technology | Yes |
Market segment | Server |
Intel Smart Response Technology version | 0.00 |
Intel Rapid Start Technology version | 0.00 |
Sustainability certificates | RoHS |
Status | Discontinued |
SSD weight | 0.388 oz (11 g) |
SSD shock | 1,000 G/0.5 msec |
SSD power consumption (idle) | 500 mW |
SSD power consumption (active) | 2.3 W |
SSD hardware encryption | AES 256 bit |
SSD endurance rating | 70 TBW |
Sequential writing speed | 160 MB/s |
Sequential reading | 440 MB/s |
Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html |
Launch date | Q4'14 |
Drive capacity | 120 GB |
Last change | 63903513 |
Software | |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Weight & dimensions | |
Width | 0.866" (22 mm) |
Weight | 0.388 oz (11 g) |
Height | 0.0591" (1.5 mm) |
Depth | 3.15" (80 mm) |
Other features | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^16 bits read |
Processor lithography | 20 nm |
Internal | Yes |
Status | Discontinued |
SSD weight | 0.388 oz (11 g) |
SSD shock | 1,000 G/0.5 msec |
SSD power consumption (idle) | 500 mW |
SSD power consumption (active) | 2.3 W |
SSD hardware encryption | AES 256 bit |
SSD endurance rating | 70 TBW |
Sequential writing speed | 160 MB/s |
Sequential reading | 440 MB/s |
Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html |
Launch date | Q4'14 |
Drive capacity | 120 GB |
Last change | 63903513 |
Product family | Data center SSD |
Product series | Intel DC S3500 |
Product codename | Wolfsville |
Intel Rapid Start Technology version | 0.00 |
