Description

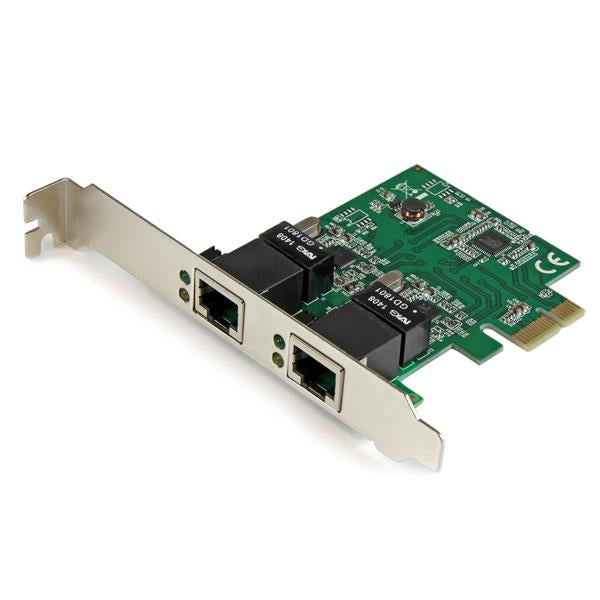

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards. Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks. The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis. The StarTech.com Advantage - Protect critical networked systems with a redundant and independent Gigabit port - Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging - Maximize the networking efficiency of your virtualized server, with dedicated ports
Specification:
Ports & interfaces | |
---|---|
Internal | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Interface | Ethernet |
Host interface | PCI Express |
Connectivity technology | Wired |
Bandwidth | |
Full duplex | Yes |
Maximum data transfer rate | 2000 Mbit/s |
Network | |
Chipset | Intel® I210-AT |
VLAN tagging | Yes |
Ethernet LAN | Yes |
Cabling technology | 10/100/1000BaseT(X) |
Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | Yes |
Jumbo frames support | Yes |
Full duplex | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Maximum data transfer rate | 2000 Mbit/s |
Auto-negotiation | Yes |
Technical details | |
Product colour | Black, Metallic |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | Yes |
Harmonized System (HS) code | 85176990 |
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS |
Design | |
Product colour | Black, Metallic |
Chipset | Intel® I210-AT |
Internal | Yes |
LED indicators | Activity |
Component for | PC/server |
Software | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Linux operating systems supported | Yes |
Indication | |
LED indicators | Activity |
System requirements | |
Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Linux operating systems supported | Yes |
Operational conditions | |
Operating temperature (T-T) | 5 - 50 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Sustainability | |
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS |
Weight & dimensions | |
Width | 2.6" (66 mm) |
Depth | 4.72" (120 mm) |
Height | 0.709" (18 mm) |
Weight | 1.34 oz (38 g) |
Package width | 5.59" (142 mm) |
Package depth | 6.69" (170 mm) |
Package height | 1.1" (28 mm) |
Package weight | 3.53 oz (100 g) |
Packaging data | |
Package width | 5.59" (142 mm) |
Package depth | 6.69" (170 mm) |
Package height | 1.1" (28 mm) |
Package weight | 3.53 oz (100 g) |
Mounting brackets included | Yes |
Manual | Yes |
Packaging content | |
Mounting brackets included | Yes |
Manual | Yes |
Performance | |
Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | Yes |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Linux operating systems supported | Yes |
Auto-negotiation | Yes |
Other features | |
Chipset | Intel® I210-AT |
Manual | Yes |
Harmonized System (HS) code | 85176990 |
Logistics data | |
Master (outer) case width | 12" (304 mm) |
Master (outer) case length | 23.3" (592 mm) |
Master (outer) case height | 14.1" (357 mm) |
Products per master (outer) case | 80 pc(s) |
