Description

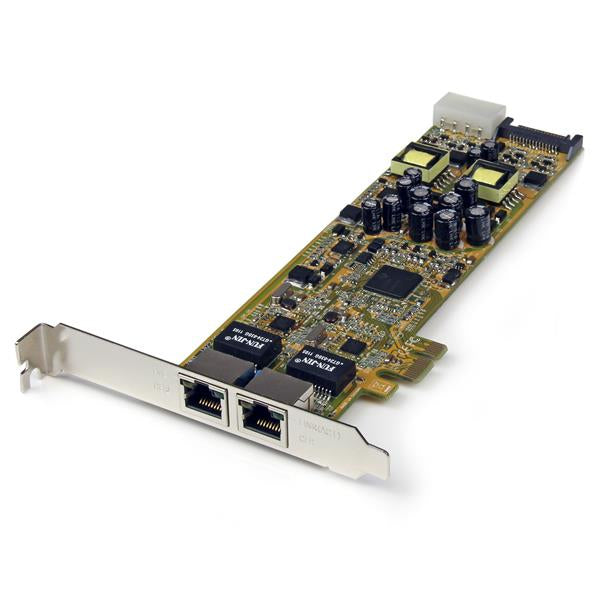

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations. This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points. Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL). The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Reduces cable clutter and makes it easier to install devices in remote locations that are powered by the the PSE network card, with up to 25.5W of power delivery as well as a solid network link over a single cable connection - Suitable for installation in full profile or small form factor computer cases using the included half-height/low profile bracket, adding two network connection ports using a single PCI Express slot - Provides versatile network connections with support for advanced features such as Jumbo Frames and VLAN tagging, as well as Wake-On-LAN and Auto MDIX
Specification:
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Network | |
| Chipset | Intel - I350-AM2 |
| VLAN tagging | Yes |
| Jumbo frames | 9000 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| LAN controller | Intel® I350-AM2 |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2000 Mbit/s |
| Technical details | |
| Product colour | Aluminum, Black |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Mean time between failures (MTBF) | 432400 h |
| Harmonized System (HS) code | 85176990 |
| Sustainability certificates | RoHS |
| Design | |
| Product colour | Aluminum, Black |
| Chipset | Intel - I350-AM2 |
| Certification | CE, FCC, REACH |
| Internal | Yes |
| Mean time between failures (MTBF) | 432400 h |
| LED indicators | Activity, Link |
| Component for | Server |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Indication | |
| Power LED | Yes |
| Link/Act LED | Yes |
| LED indicators | Activity, Link |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 0.748" (19 mm) |
| Depth | 2.64" (67 mm) |
| Height | 4.76" (121 mm) |
| Weight | 2.82 oz (80 g) |
| Package width | 6.77" (172 mm) |
| Package depth | 5.67" (144 mm) |
| Package height | 1.14" (29 mm) |
| Package weight | 5.82 oz (165 g) |
| Packaging data | |
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Package width | 6.77" (172 mm) |
| Package depth | 5.67" (144 mm) |
| Package height | 1.14" (29 mm) |
| Package weight | 5.82 oz (165 g) |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Performance | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mean time between failures (MTBF) | 432400 h |
| Certificates | |
| Certification | CE, FCC, REACH |
| Other features | |
| Chipset | Intel - I350-AM2 |
| Manual | Yes |
| Jumbo frames | 9000 |
| Power LED | Yes |
| Link/Act LED | Yes |
| Harmonized System (HS) code | 85176990 |
