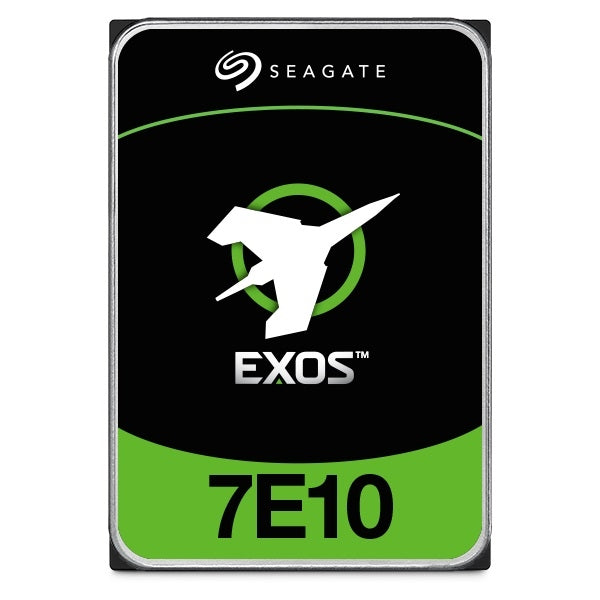

ST4000NM001B - Seagate EXOS 7E10 4TB 512N SAS 3.5INCH

Purpose-built for enterprise applications and workloads Trusted. Efficient. Versatile For everything Enterprise storage, there's Exos E €” the safest and most powerful way to traverse the datasphere and harness its full potential. Always on and always working, the Exos E series of hard drives is loaded with advanced options for optimal performance, reliability, security and user-definable storage management. Built on generations of industry-defining innovation, Exos E is designed to work and perform consistently in enterprise-class workloads. Exos 7E10 Specifically designed to address the needs of storing unstructured data cost-effectively.



Specification:



Hard drive
Data transfer rate	6 Gbit/s
Component for	Server/workstation
Average latency	4.16 ms
Bytes per sector	512
Mean time between failures (MTBF)	1400000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	4000 GB
Features
Component for	Server/workstation
Interface	SAS
Average latency	4.16 ms
Bytes per sector	512
Mean time between failures (MTBF)	1400000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	4000 GB
Storage drive buffer size	128 MB
Power
Operating voltage	5 / 12 V
Power consumption (typical)	11.86 W
Power consumption (idle)	7.80 W
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	70 G
Non-operating vibration	0.25 G
Non-operating shock	300 G
Technical details
Operating voltage	5 / 12 V
Interface	SAS
Power requirements	+12V & +5V
Mean time between failures (MTBF)	1400000 h
Internal	Yes
Weight & dimensions
Width	4.01" (101.8 mm)
Weight	24.7 oz (700 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Other features
Operating voltage	5 / 12 V
Interface	SAS
Power requirements	+12V & +5V
Internal	Yes
Data transfer rate	6 Gbit/s
