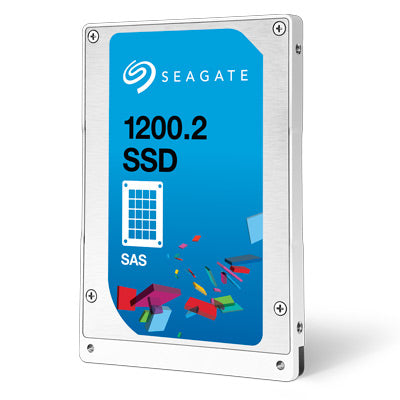

ST400FM0323 - Seagate 400GBEMLC2.5"S2048SAS1200SSDNOENCRYPTION

Built for Fast Data Center Applications The Seagate 1200.2 SSD family includes the next-generation of high-capacity, high-performance SAS SSDs designed with multiple endurance offerings optimized for demanding enterprise applications and maximum TCO savings. The 1200.2 SAS SSD family features: - 12Gb/s SAS interface for the highest level of enterprise reliability, availability and scalability - Industry-leading storage density range including 4TB-class capacity in a 2.5-inch form factor - Endurance options to match the needs of a wide range of enterprise workloads - Enhanced enterprise reliability, data protection and data security Industry Leading Performance up to 1800MB/s The 1200.2 SAS SSD family delivers ultra-fast, consistent and easily scalable performance that exceeds 12Gb/s SAS single port bandwidth. - Optimized for enterprise applications with write-intensive, mixed, read intensive and highly read intensive workloads to improve storage and server system performance - Provides consistent low latency data access, reliably accelerating enterprise and cloud storage systems High Capacity Solution with Multiple Endurance Offerings The 1200.2 SSD is the most efficient high capacity solution that offers a wide range of product configurations that enables optimizations for specific applications and workloads. - Increases enterprise storage density with an industry-leading capacities range including 4TB-class in a 2.5” form factor - Offers four endurance categories that meet the performance and cost needs for a wide range of applications – One stop source for all your enterprise SSD storage needs - Saves cost by offering “fit to function” choices that meet requirements for capacity, endurance and performance – Pay for what you need 12Gb/s SAS Server Support The 1200.2 SSD industry-leading 12Gb/s SAS doubles interface speed and improves ROI by leveraging existing SAS servers, accommodating SAS infrastructure scalability, and a proven SCSI command set. - Dual 12Gb/s SAS doubles bandwidth (backwards compatible with 3Gb/s and 6Gb/s SAS) - Multi-path I/O features help ensure high data availability with failover redundancy and no single point of failure - High signal integrity (low noise) makes it safer to use longer cables - Scalability—SAS supports more than 65K drive slots (via expanders) - Advanced SAS drive-level error correction to help ensure the integrity of data during the storage process Robust Enterprise Feature Set Backed by Seagate industry-leading customer support, global supply chain expertise, and deep ecosystem relationships, the 1200.2 SSD typically reduces OEM/system builder qualification effort, helping to save time and money. The 1200.2 SSD delivers high data integrity, advanced data security and high endurance. - Expert media management techniques help to prevent premature wear in heavy write applications, preventing downtime and costs associated with premature failures - Power loss data protection and full path data protection - Multi-layered error recovery technology with advanced error detection/correction encoding optimized for NAND flash - Seagate Secure drive options: Self-Encrypting Drive (SED) and FIPS SED models with Seagate Instant Secure Erase technology



Specification:



Hard drive
SSD capacity	400 GB
Memory type	eMLC
Internal	Yes
Data transmission
Read speed	1800 MB/s
Write speed	800 MB/s
Random write (4KB)	70000 IOPS
Random read (4KB)	210000 IOPS
Data transfer rate	12 Gbit/s
Design
Internal	Yes
Product colour	Gray
SSD form factor	2.5"
Performance
Interface	SAS
SSD capacity	400 GB
Read speed	1800 MB/s
Write speed	800 MB/s
Memory type	eMLC
Random write (4KB)	70000 IOPS
Random read (4KB)	210000 IOPS
Data transfer rate	12 Gbit/s
Features
Interface	SAS
SSD capacity	400 GB
Read speed	1800 MB/s
Write speed	800 MB/s
Memory type	eMLC
Random write (4KB)	70000 IOPS
Random read (4KB)	210000 IOPS
Data transfer rate	12 Gbit/s
SSD form factor	2.5"
Power
Power consumption (sleep)	3.1 W
Power consumption (idle)	3.6 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	1.98 G
Technical details
Interface	SAS
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	1.98 G
Latency	115
Product colour	Gray
SSD form factor	2.5"
Weight & dimensions
Width	2.76" (70.1 mm)
Weight	3 oz (85 g)
Height	0.276" (7 mm)
Depth	3.95" (100.5 mm)
Other features
Latency	115
Product colour	Gray
Internal	Yes
