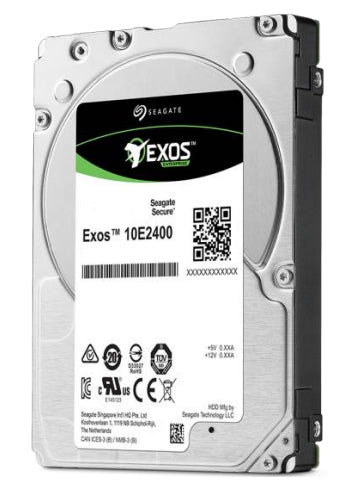

ST600MM0009 - Seagate 600GB EXOS 10E2400 HDD 512N SAS 2.5 10000 128MB

Seagate® Exos™ 10E2400 enterprise hard drives are the industry's fastest 10KRPM drives, with capacities up to 2.4 TB in a 2.5-inch form factor, and intended for traditional data centres where density, power consumption and data integrity are paramount. The Perfect Match of High Capacity and High Performance The high capacity and small 2.5-inch footprint of the Exos 10E2400 drive enables data centres to keep pace with data growth and optimise data centre real estate. Exos 10E2400 delivers up to 2.4 TB of highperformance data access for write-intensive applications. A single advanced format interface model lets you future-proof your storage infrastructure. The Seagate Enhanced Caching feature accelerates read and write I/O operations, preventing applications from slowing down under peak usage conditions. The latest 12 Gb/s SAS interface provides improved scalability. Maximise Storage Investments for the Long Haul Exos 10E2400 offers Protection Information (PI) to help protect against data corruption, and Seagate PowerChoice™ technology for T10-compliant power management enables IT organisations to tailor systems for enhanced power consumption. RAID recovery is faster and safer with the help of the Seagate RAID Rebuild ® technology option. Industry-Leading Data Security Features Seagate Secure™ SED and FIPS 140-2 government-grade models offer hardware-based security to help protect data-at-rest. With Instant Secure Erase, drive retirement is safe, fast and cost-effective. Seagate Secure models meet the NIST 800-88 media sanitisation specification and support the Trusted Computer Group (TCG) standard. Exos 10E300 Enterprise Hard Drives The industry's fastest 10K-RPM drives are also available in 300 GB capacity and are a perfect choice for entry-level boot server applications.



Specification:



Hard drive
Data transfer rate	6 Gbit/s
Component for	Server/workstation
Average latency	2.9 ms
Bytes per sector	512
HDD number of heads	4
HDD speed	10000 RPM
HDD size	2.5"
HDD capacity	600 GB
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Features
Component for	Server/workstation
Interface	SAS
Average latency	2.9 ms
Windows operating systems supported	Yes
Bytes per sector	512
Mac operating systems supported	Yes
HDD number of heads	4
Linux operating systems supported	Yes
HDD speed	10000 RPM
HDD size	2.5"
HDD capacity	600 GB
Storage drive buffer size	64 MB
Power
Operating voltage	5 V
Power consumption (idle)	3.4 W
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating vibration	0.5 G
Operating shock	40 G
Non-operating vibration	3 G
Non-operating shock	400 G
Technical details
Operating voltage	5 V
Interface	SAS
Number of products included	1 pc(s)
Internal	Yes
Weight & dimensions
Width	2.76" (70.1 mm)
Weight	7.8 oz (221 g)
Height	0.591" (15 mm)
Depth	3.95" (100.5 mm)
Other features
Operating voltage	5 V
Interface	SAS
Number of products included	1 pc(s)
Internal	Yes
Data transfer rate	6 Gbit/s
