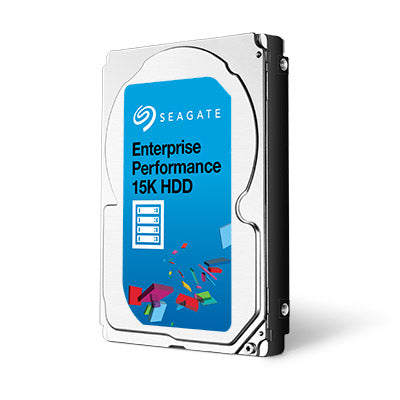

ST900MP0006 - Seagate 900GB EXOS 15E900 HDD 512N SAS 2.5 15000 256MB

The Seagate® Exos™15E900 enterprise hard drive is the world's fastest hard drive, with capacities up to 900 GB in a 2.5-inch form factor, and is intended for traditional data centres where density, power consumption and data integrity are paramount. Performance You Need With the Affordability You Demand Exos 15E900 hard drives accelerate I/O operations and complete more transactions faster — even during peak demand. The 900 GB model Exos 15E900 was the first to store 50% more mission-critical data than any other 15K hard drive. By providing higher capacities at lower cost than high-performance alternatives, Exos 15E900 drives help optimise TCO. They deliver more predictable performance (up to 27% more sustained data rate than previous generation) while helping to protect data from corruption due to unexpected power loss. Unrivalled Versatility Is Key The Exos 15E900 supports all drive formats, including 512 native and a single Fast Format TM model for advanced formats (4Kn and 512e) that simplifies drive management. Industry-leading read caching with TurboBoost® technology for optimum response times is perfect for OLTP applications. The Advanced Write Caching feature utilises enhanced algorithms for the industry’s highest mission-critical storage workload performance efficiencies. The Exos 15E900 uses traditional NAND and advanced algorithms to promote hot data and meet performance requirements (up to 2.6× improvements over last generation). By enabling high density with power efficiency, Exos 15E900 drives are ideal for space- and power-constrained enterprise data centres. Widely accepted, proven sixth-generation technology provides reliable access to demanding high-performance applications. Industry-Leading Data Security Features Seagate Secure TM models provide hardware-based security to help protect data-atrest. With Instant Secure Erase, drive retirement is safe, fast and cost-efficient. Seagate Secure models meet the NIST 800-88 media sanitisation specification and support the Trusted Computer Group (TCG) standard.



Specification:



Hard drive
Component for	Server/workstation
HDD sustained transfer rate	2400 MiB/s
HDD interface transfer rate	12 Gbit/s
Average latency	2 ms
Mean time between failures (MTBF)	2000000 h
HDD speed	15000 RPM
HDD size	2.5"
HDD capacity	900 GB
Features
Type	HDD
Component for	Server/workstation
HDD sustained transfer rate	2400 MiB/s
HDD interface transfer rate	12 Gbit/s
Interface	SAS
Average latency	2 ms
Mean time between failures (MTBF)	2000000 h
HDD speed	15000 RPM
HDD size	2.5"
HDD capacity	900 GB
Storage drive buffer size	256 MB
Power
Operating voltage	5 V
Power consumption (typical)	7.6 W
Power consumption (idle)	5.7 W
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating vibration	0.5 G
Operating shock	40 G
Non-operating vibration	2.4 G
Non-operating shock	400 G
Technical details
Harmonized System (HS) code	84717050
Operating voltage	5 V
Quantity	1
Interface	SAS
Mean time between failures (MTBF)	2000000 h
Weight & dimensions
Width	2.75" (69.8 mm)
Weight	8.11 oz (230 g)
Height	0.591" (15 mm)
Depth	3.95" (100.5 mm)
Packaging data
Quantity	1
Packaging content
Quantity	1
Other features
Operating voltage	5 V
Interface	SAS
