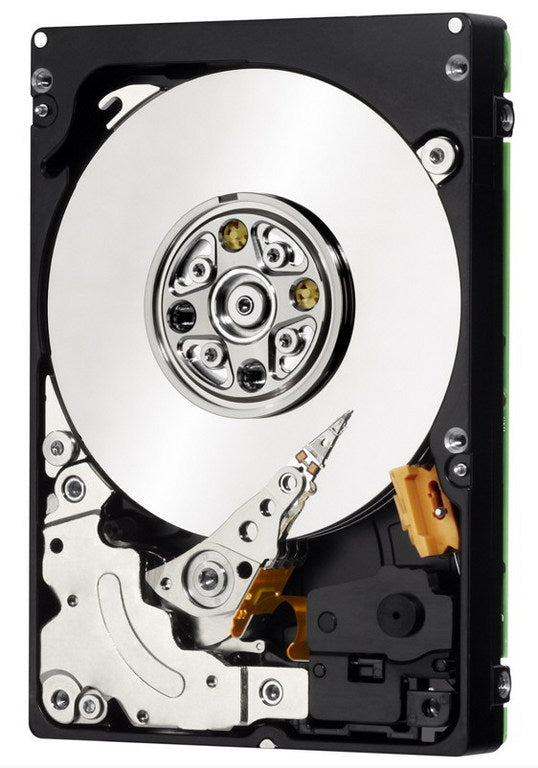

ST9146803SS - Seagate 146GB 10K SAS 6G 16MB 2.5

Seagate® Savvio® 10K.3 hard drives are the lowest-power high-capacity 2.5-inch drive for the enterprise, with 75 percent power savings over comparable 3.5-inch 300‑GB capacity drives. The Seagate® Savvio® 10K.3 drive offers the best combination of power efficiency and enterprise performance, with large capacity for mainstream server and external storage applications for the enterprise. The Savvio 10K.3 drive with PowerTrim™ technology uses 75 percent less power than a 3.5-inch 15K drive for the lowest power profile of any Tier 1 mission-critical drive. It is 70 percent smaller than 3.5-inch drives, enabling more system airflow, which results in lower cooling costs. Its Unified Storage™ architecture converges best-of-breed technologies (Serial Attached SCSI, small form factor and Self-Encrypting Drives) to enable powerful yet simple external storage and internal server storage solutions that strengthen business efficiencies while cutting TCO and boosting ROI. Key Features and Benefits - Seagate® PowerTrim™ technology dynamically reduces power. - 75 percent power savings over comparable 3.5-inch drives. - 70 percent smaller size than 3.5-inch drives reduces overall system cooling costs. - 40 percent reduction in $/IOPS over comparable 3.5-inch drives. - 60 percent improvement in system-level performance over 3.5-inch 15K drives. - Third-generation 2.5-inch 10K-RPM enterprise drive with field-proven reliability. - Supports 6-Gb/sec transfer rates and SAS 2.0 feature set. - Government-grade Self-Encrypting Drive for data center data protection. - Unified Storage architecture cuts TCO and boosts ROI.



Specification:



Data transmission
Sustained data rate	160 MB/s
Hard drive
Component for	Server/workstation
Write seek time	3.3 ms
Read seek time	2.9 ms
Average latency	2 ms
HDD number of heads	4
HDD speed	15000 RPM
HDD size	2.5"
HDD capacity	146 GB
Features
Type	HDD
Component for	Server/workstation
Interface	SAS
Write seek time	3.3 ms
Read seek time	2.9 ms
Average latency	2 ms
HDD number of heads	4
HDD speed	15000 RPM
HDD size	2.5"
HDD capacity	146 GB
Storage drive buffer size	16 MB
Power
Operating voltage	5 V
Power consumption (idle)	4.1 W
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.5 G
Operating shock	60 G
Non-operating vibration	2.4 G
Non-operating shock	300 G
Technical details
Operating voltage	5 V
Interface	SAS
Weight & dimensions
Width	2.76" (70 mm)
Weight	7.09 oz (201 g)
Height	0.583" (14.8 mm)
Depth	3.96" (100.5 mm)
Other features
Operating voltage	5 V
Interface	SAS
Sustained data rate	160 MB/s
