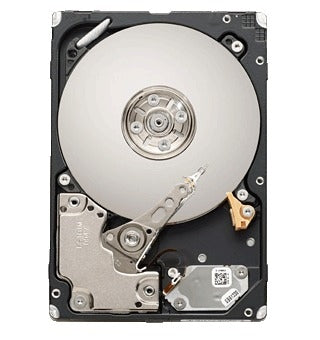

ST9600204SS - Seagate 600GB 10K SAS 6G 16MB 2.5

Ideal for NAS, SAN and DAS external enterprise storage solutions, this fourth-generation Savvio 10K.4 drive provides the highest capacity and best reliability available in a small form factor, 10K-RPM enterprise hard drive. This drive enables 3.5-inch to 2.5-inch form factor transition and widespread market adoption of 2.5-inch-based external storage solutions for enterprise OEMs, system designers and end-user organizations. Key Advantages - The world’s highest-capacity SFF drive (up to 600GB) - The industry’s first 2M-hour MTBF drive to provide 0.44 percent AFR—20 percent higher reliability than any other drive available - Second-generation 6Gb/s SAS with dual-port communication and first SFF hard drive with 4Gb/s FC support - SFF and low power consumption reduce end-user cooling and energy costs. - PowerChoice feature for T10-compliant power management, empowers IT organizations to tailor systems for performance and power consumption - Protection Information (PI) option detects corruption of data in flight between the host system and the drive.1 - Head ramp load/unload feature for improved device handling reliability - TCG-compliant, Self-Encrypting Drive (SED) security option (SAS models only) eliminates the need to overwrite or physically destroy drives, enables safe return of drives for warranty or expired lease purposes, and allows organizations to securely repurpose or sell hard drives.2 - This drive enables OEMs and system designers to design external storage solutions for organizations with green IT strategies, data-at-rest concerns, and power- or space-constrained IT environments



Specification:



Hard drive
Data transfer rate	4 Gbit/s
Component for	Server/workstation
Write seek time	3.8 ms
Read seek time	3.4 ms
Average latency	3 ms
HDD number of heads	4
Mean time between failures (MTBF)	2000000 h
HDD speed	10000 RPM
HDD size	2.5"
HDD capacity	600 GB
Data transmission
Sustained data rate	168 MB/s
Features
Component for	Server/workstation
Interface	Fiber Channel
Write seek time	3.8 ms
Read seek time	3.4 ms
Average latency	3 ms
HDD number of heads	4
Mean time between failures (MTBF)	2000000 h
HDD speed	10000 RPM
HDD size	2.5"
HDD capacity	600 GB
Storage drive buffer size	64 MB
Power
Operating voltage	5 V
Power consumption (standby)	4.13 W
Start-up current	0.89 A
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.5 G
Operating shock	25 G
Non-operating vibration	3 G
Non-operating shock	400 G
Technical details
Operating voltage	5 V
Interface	Fiber Channel
Mean time between failures (MTBF)	2000000 h
Weight & dimensions
Width	2.76" (70.1 mm)
Weight	7.8 oz (221 g)
Height	0.591" (15 mm)
Depth	3.95" (100.5 mm)
Other features
Operating voltage	5 V
Interface	Fiber Channel
Data transfer rate	4 Gbit/s
Sustained data rate	168 MB/s
