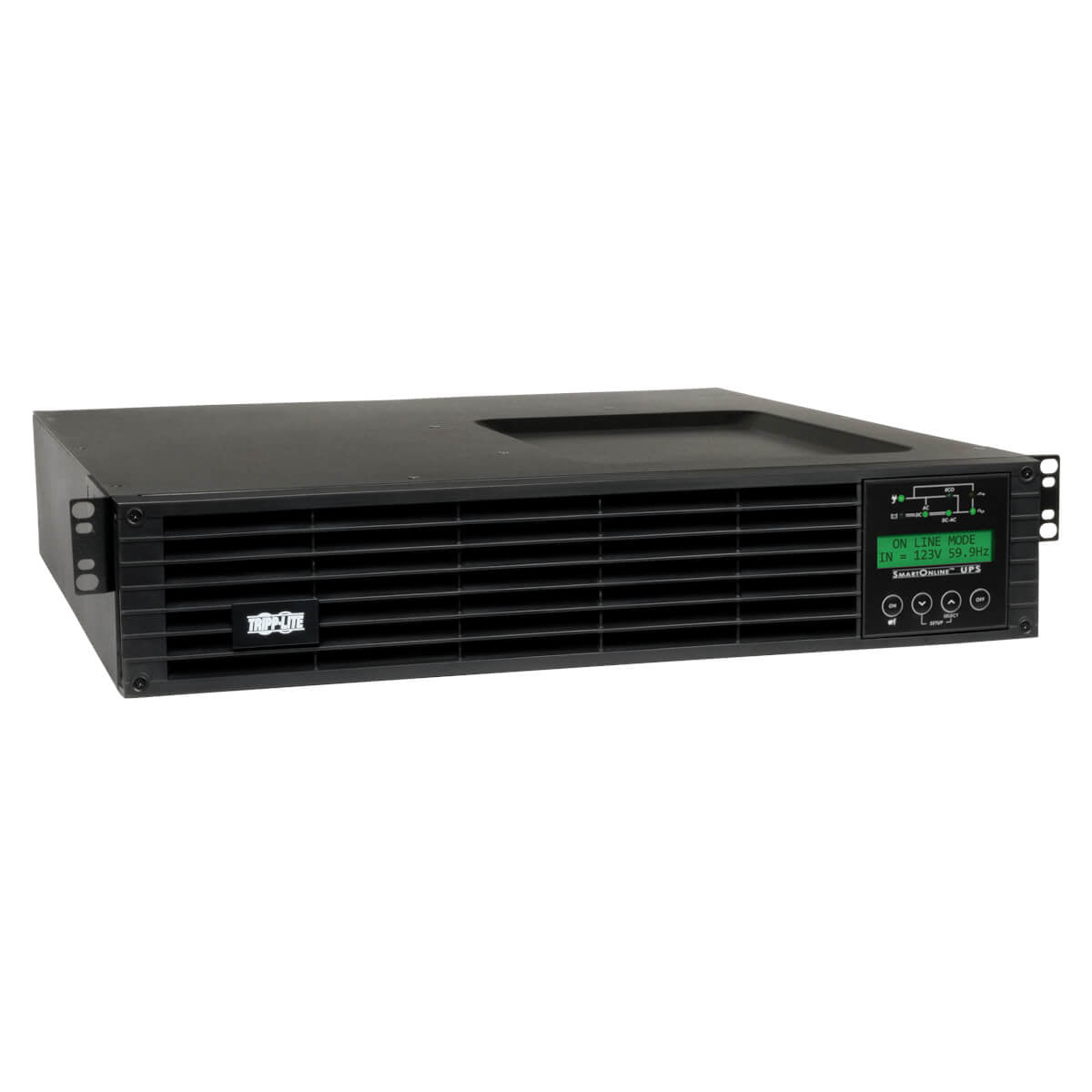

SU2200RTXLCD2U - Tripp Lite SMARTONLINE 2.2KVA ON-LINE DOUBLE-CONVERSION UPS, 2U RACK/TOWER, INTERACTIVE LCD

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs. - Tripp Lite SU2200RTXLCD2U 2200VA / 2.2kVA / 1800W on-line, double-conversion 2U rack / tower UPS - Transformerless, IGBT technology - Selectable 100/110/120/127V output (120V factory preset) - NEMA 5-20P input, 6 NEMA 5-15/20R and 1 L5-20R outlets - Two switched 3-outlet load banks support remote reboot or programmable load shedding options - Supports 2% output voltage regulation and zero transfer time in double conversion mode - Economy mode option offers enhanced efficiency, reduced power consumption and lower BTU emissions - 12 minutes runtime at 50% load (900W) and 4 minutes at 100% load (1800W) with internal batteries - BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite External Battery Configuration Software) - LCD interface reports operating mode plus 9 selectable screens of UPS data (Load % & kW, Load % & kVA, Power factor, Input volts & Hz, Output volts & Hz, Battery volts and charge %, Minutes runtime, Capacity remaining, Kw/hr. consumption) - LCD interface also supports 16 screens of UPS configuration and setup options - 4 post installation hardware included, Optional 2POSTRMKITWM enables 2 post rack installation, Optional 2-9USTAND enables tower placement - Single line TEL / Network surge suppression - Electronic bypass maintains utility output during a variety of UPS fault conditions - Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement - Frequency regulation / conversion mode offers generator-compatible frequency correction or conversion of frequency from 50 to 60Hz or 60 to 50Hz - USB, RS-232, contact-closure and optional SNMPWEBCARD accessory monitoring options - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X - Included PowerAlert UPS monitoring software



Specification:



Power
Output power	1800 W
Input operation voltage (min)	100 V
Input operation voltage (max)	127 V
Output operation voltage (min)	100 V
Output operation voltage (max)	127 V
Surge energy rating	570 J
Maximum current	16 A
Power factor	0.82
Crest factor	3:1
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Performance
Audible alarm modes	Fault
UPS topology	Double-conversion (Online)
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
LED indicators	Status
EMI/RFI noise filtering	Yes
Power protection features	Under current
Noise level	57 dB
Audible alarm(s)	Yes
Features
Country of origin	China
Audible alarm modes	Fault
UPS topology	Double-conversion (Online)
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Output power	1800 W
Input operation voltage (min)	100 V
Input operation voltage (max)	127 V
Output operation voltage (min)	100 V
Output operation voltage (max)	127 V
Surge energy rating	570 J
Maximum current	16 A
EMI/RFI noise filtering	Yes
Power protection features	Under current
Power factor	0.82
Noise level	57 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5–15R, NEMA 5–20R
Power plug	NEMA 5-20P
USB 2.0 ports quantity	1
Battery
Battery recharge time	3 h
Typical backup time at half load	12 min
Typical backup time at full load	4 min
Hot-swap battery	Yes
Cold start	Yes
Design
Country of origin	China
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Status
Product colour	Black
Certification	FCC, EMI, UL1778, CSA
Housing material	Steel
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Sustainability certificates	RoHS, ENERGY STAR
Weight & dimensions
Package width	19.9" (505.5 mm)
Package depth	23.5" (596.9 mm)
Package height	8.9" (226.1 mm)
Weight	48.5 lbs (22 kg)
Width	17.5" (444.5 mm)
Package weight	63.1 lbs (28.6 kg)
Height	3.5" (88.9 mm)
Depth	19" (482.6 mm)
Packaging data
Manual	Yes
Cables included	USB cable
Package width	19.9" (505.5 mm)
Package depth	23.5" (596.9 mm)
Package height	8.9" (226.1 mm)
Package weight	63.1 lbs (28.6 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Certificates
Certification	FCC, EMI, UL1778, CSA
Packaging content
Manual	Yes
Cables included	USB cable
