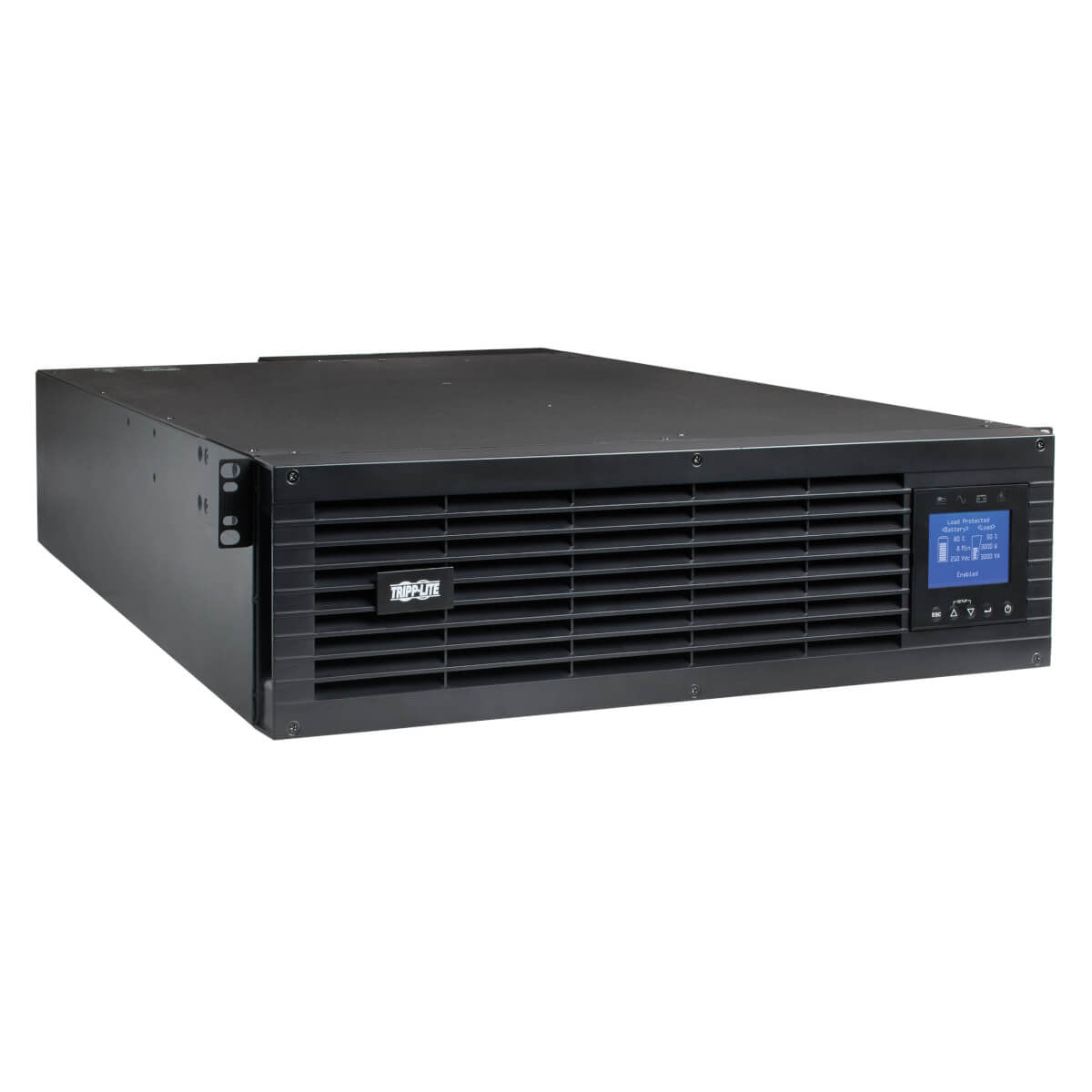

SU6KRT3UX - Tripp Lite UPS SMART ONLINE 6KVA 6KW 220/230/240V

Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss Tripp Lite's SmartOnline® SU6KRT3UX Unity Power Factor UPS system protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Unity Power Factor design enables full 6000VA / 6000W output capacity. In double-conversion mode, this UPS system maintains perfect output by continuously converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with ±1% voltage regulation and zero transfer time between online and battery modes. Featuring true on-line, double-conversion operation, Tripp Lite's SU6KRT3UX provides the highest level of UPS power protection for critical server, network and telecom equipment. Reliable, Expandable Battery Backup UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 8.5 minutes of support at half load and 3 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. Advanced temperature-controlled battery charge management system provides efficient recharge and enhanced battery lifespan. For mission-critical applications demanding continuous uptime, the 6kVA UPS can provide expandable runtime with optional BP192V12RT3US external battery pack (sold separately). Battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries. Economy Mode Helps the Environment and Your Cash Flow Operates with >98% full-load efficiency in optional economy mode significantly reducing BTU heat output and operating energy costs. Intuitive Front-Panel Interface offers Convenient Monitoring Front-panel LEDs indicate line power, AC output, On-battery mode, and Fault conditions. The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration. Pre-installed WEBCARDLXMINI Network Interface Offers 24/7 Access Pre-installed Java-free HTML5-based WEBCARDLXMINI interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. Advanced Communications Ports USB and DB9 ports with included cabling enable data-saving unattended shutdown of connected systems when used with Tripp Lite’s free downloadable PowerAlert® software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions. DB9 ports also support basic contact-closure monitoring to report On-battery and Low-battery status for legacy systems. Versatile Installation Options Hardware is included for mounting the complete 6kVA UPS system with internal batteries in 3U of space in an EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITHD for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position. 2-Year Warranty and Environmentally Responsible Design The SU6KRT3UX comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.



Specification:



Power
Output frequency	50/60 Hz
Output power factor	1
Input power factor	0.98
Output power	6000 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	1680 J
Crest factor	3:1
Output power capacity	6 kVA
Efficiency (On-line mode)	94%
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Number of input phases	1
LED indicators	Yes
EMI/RFI noise filtering	Yes
Noise level	67.1 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	Taiwan
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Number of input phases	1
Output power factor	1
Input power factor	0.98
Output power	6000 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	1680 J
EMI/RFI noise filtering	Yes
Noise level	67.1 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	6 kVA
Efficiency (On-line mode)	94%
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler, Hardwire
Power plug	Hardwire
USB 2.0 ports quantity	3
RS-232 ports	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	2
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	8.5 min
Typical backup time at full load	3 min
Hot-swap battery	Yes
Cold start	Yes
Design
Country of origin	Taiwan
Rack capacity	3U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Cooling type	Active
Built-in fan	Yes
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 78740.2" (0 - 2000 m)
Technical details
Output frequency	50/60 Hz
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Package width	23.7" (603.2 mm)
Package depth	34.7" (882.6 mm)
Package height	28" (711.2 mm)
Weight	123.5 lbs (56 kg)
Width	17.5" (444.5 mm)
Package weight	192 lbs (87.1 kg)
Height	10.3" (260.9 mm)
Depth	28.6" (726.2 mm)
Packaging data
Rack mount kit	Yes
Manual	Yes
Cables included	RS-232, USB cable
Package width	23.7" (603.2 mm)
Package depth	34.7" (882.6 mm)
Package height	28" (711.2 mm)
Package weight	192 lbs (87.1 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Packaging content
Rack mount kit	Yes
Manual	Yes
Cables included	RS-232, USB cable
