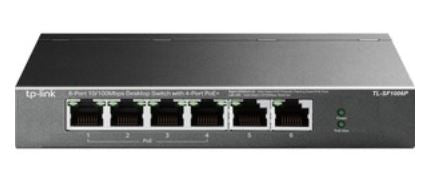

TL-SF1006P - TP-Link 6-PORT 10/100MBPS DESKTOP SWITCH WITH 4-

Professional High-Power Switch with 4 PoE+ Ports Plug and Play, with PoE Transmission for Surveillance up to 250 m Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4— PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. Ideal for IP Surveillance€”Up to 250 m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m**€”perfect for IP Camera deployment in large areas. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. Priority Video Quality Guaranteed Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1€“2 when one-touch Priority Mode is on. Intelligent Power Management When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port€™s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Durable Metal Casing The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.



Specification:



Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Performance
Packet buffer memory	2 MB
Harmonized System (HS) code	85176990
Power
Power connector	DC-in jack
Power consumption (max)	2.2 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Technical details
Product colour	White
Management features
Switch type	Unmanaged
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Networking standards	IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
10G support	No
Data transmission
Packet buffer memory	2 MB
MAC address table	1000 entries
Switching capacity	1.6 Gbit/s
Store-and-forward	Yes
Protocols
Supported network protocols	CSMA/CD, TCP/IP
Certificates
Certification	FCC, CE, RoHS
Memory
Packet buffer memory	2 MB
Design
Product colour	White
LED indicators	Yes
Certification	FCC, CE, RoHS
Indication
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Packaging data
Package type	Box
Quick start guide	Yes
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Quick start guide	Yes
