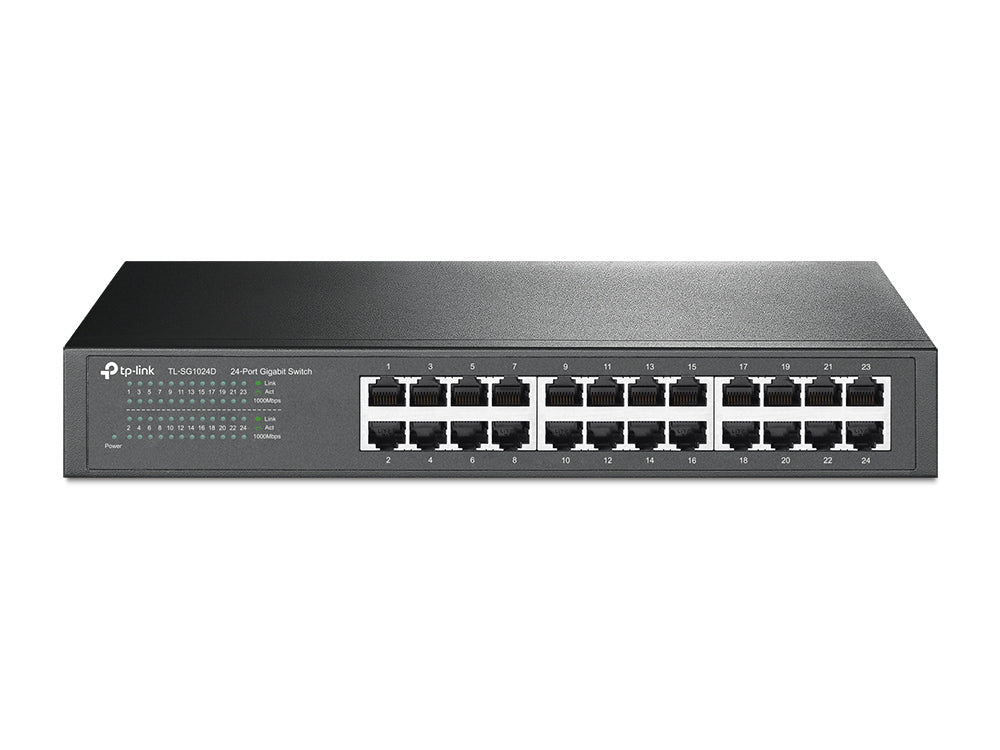

TL-SG1024D - TP-Link 24-PORT GB DESKTOP/RACKMOUNT SWITCH

The TL-SG1024D 24-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20%* of the power consumption, making it an eco-friendly solution for your business network. Gigabit Switch Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So，power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer - graphics, CGI, CAD, or multimedia files across the network instantly. GO GREEN WITH YOUR ETHERNET You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024D 24-Port Gigabit desktop/rack-mount Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Power down Idle Ports When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle. Power Budget According to Cable Length Ideally, shorter cables would use less power because of less power degradation over their length, this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution. Easy to Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Features - Innovative energy-efficient technology saves power up to 20%; - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode; - Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput; - 48Gbps Switching Capacity; - 10K Jumbo frame improves performance of large data transfers; - Auto-MDI/MDIX eliminates the need for crossover cables; - Supports MAC address auto-learning and auto-aging; - Store and forward Switching scheme; - Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware; - Desktop and Rack-mountable design; - Plug and Play design simplifies installation.



Specification:



Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	32
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
Number of VLANs	32
Data transmission
Number of VLANs	32
Jumbo frames	10000
Throughput	35.7 Mpps
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Performance
Packet buffer memory	4.1 MB
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Rack mounting	Yes
Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2
Security
IGMP snooping	Yes
Certificates
Certification	FCC, CE, RoHS
Memory
Packet buffer memory	4.1 MB
Design
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHS
Rack mounting	Yes
Indication
LED indicators	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	14.19 W
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	48.39 BTU/h
Weight & dimensions
Width	11.6" (294 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Packaging data
Package type	Box
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC
