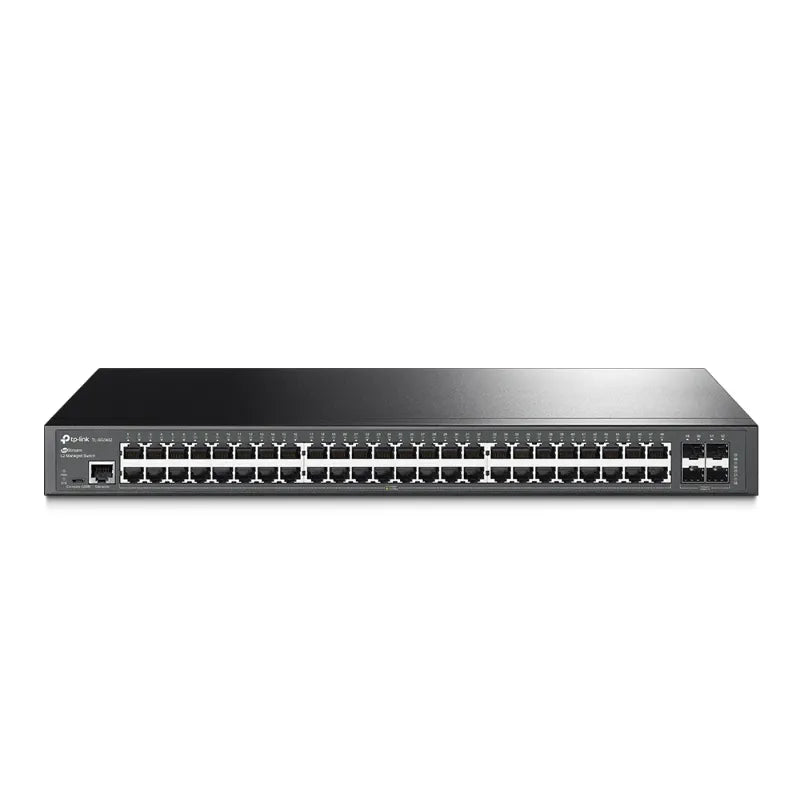

TL-SG3452 - TP-Link JETSTREAM 48-PORT GIGABIT L2 MANAGED SWITCH WITH 4 SFP SLOTS

Convenient Gigabit Switch for a Complete Omada Network JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Reliable Gigabit Connections 48— Gigabit RJ45 Ports and 4— Gigabit SFP Ports Centralized Cloud Management SDN Solutions Integration for a Highly Efficient Network Advanced L2+ Features L2/L3/L4 QoS, ACL, Static Routing and More Abundant Secure Strategies LAN Area Investment Protection Software Defined Networking (SDN) with Cloud Access Omada€™s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network€”all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users€™ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Enterprise Level Features A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. ISP Features** QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. Device Link Detection Protocol (DLDP) offers easy monitoring and troubleshooting of Ethernet links. IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.



Specification:



Management features
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
MIB support	Yes
Switch layer	L2/L3
Cloud-managed	Yes
Network
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Active link detection	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
10G support	No
Policy-based routing	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Number of VLANs	4000
Jumbo frames	9000
Number of static routes	48
Packet buffer memory	12 MB
MAC address table	16000 entries
Switching capacity	104 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	77.4 Mpps
Performance
Packet buffer memory	12 MB
Harmonized System (HS) code	85176990
Technical details
Form factor	1U
Product colour	Black
Rack mounting	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
Console port	RJ-45/micro-USB
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
Memory
Packet buffer memory	12 MB
Design
Form factor	1U
Product colour	Black
Rack mounting	Yes
Number of fans	3 fan(s)
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Power
Power consumption (max)	485.4 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	384 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	17.3" (440 mm)
Depth	13" (330 mm)
Height	1.73" (44 mm)
Packaging data
Package type	Box
Manual	Yes
Logistics data
Harmonized System (HS) code	85176990
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
Packaging content
Manual	Yes
