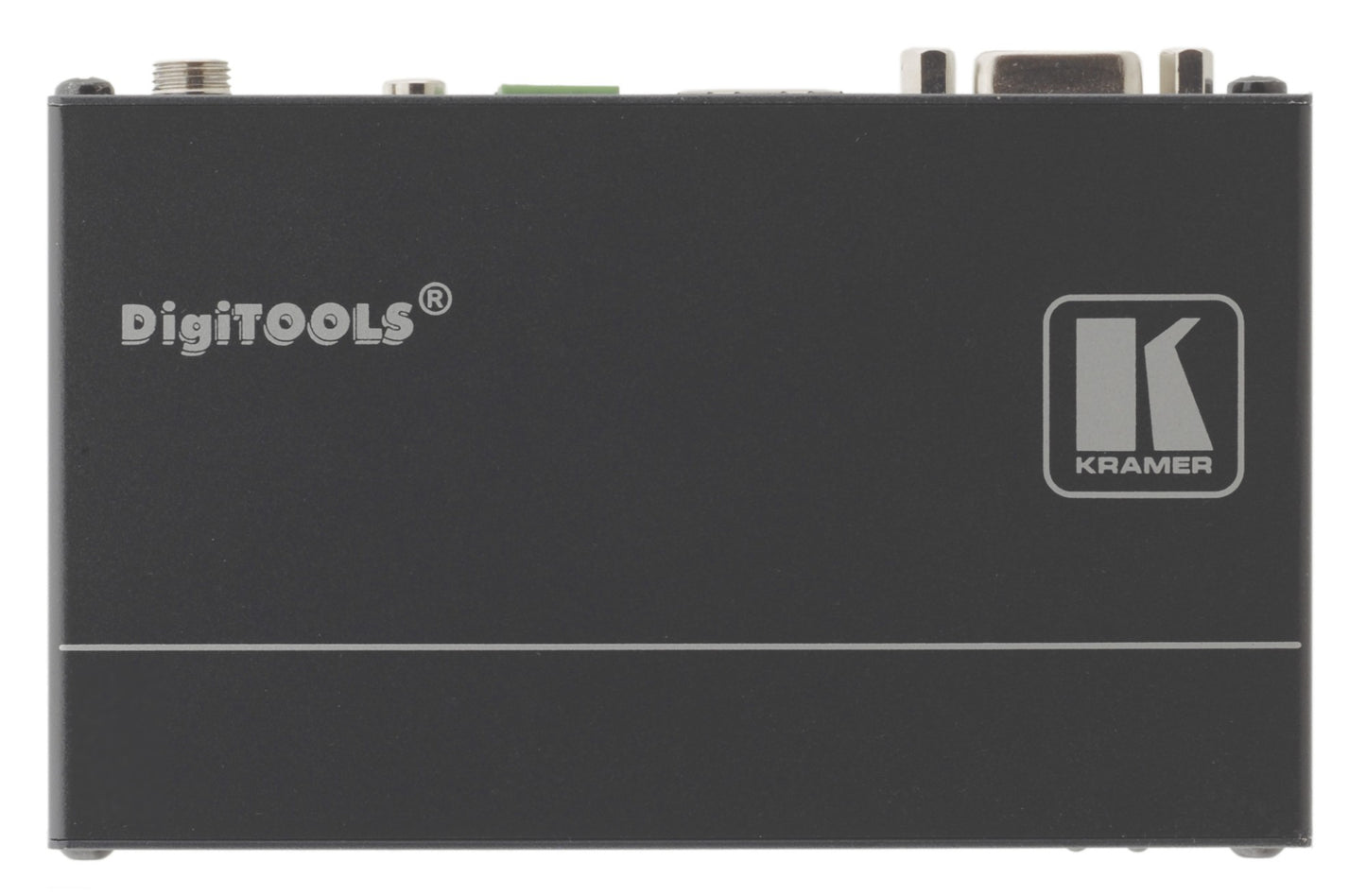

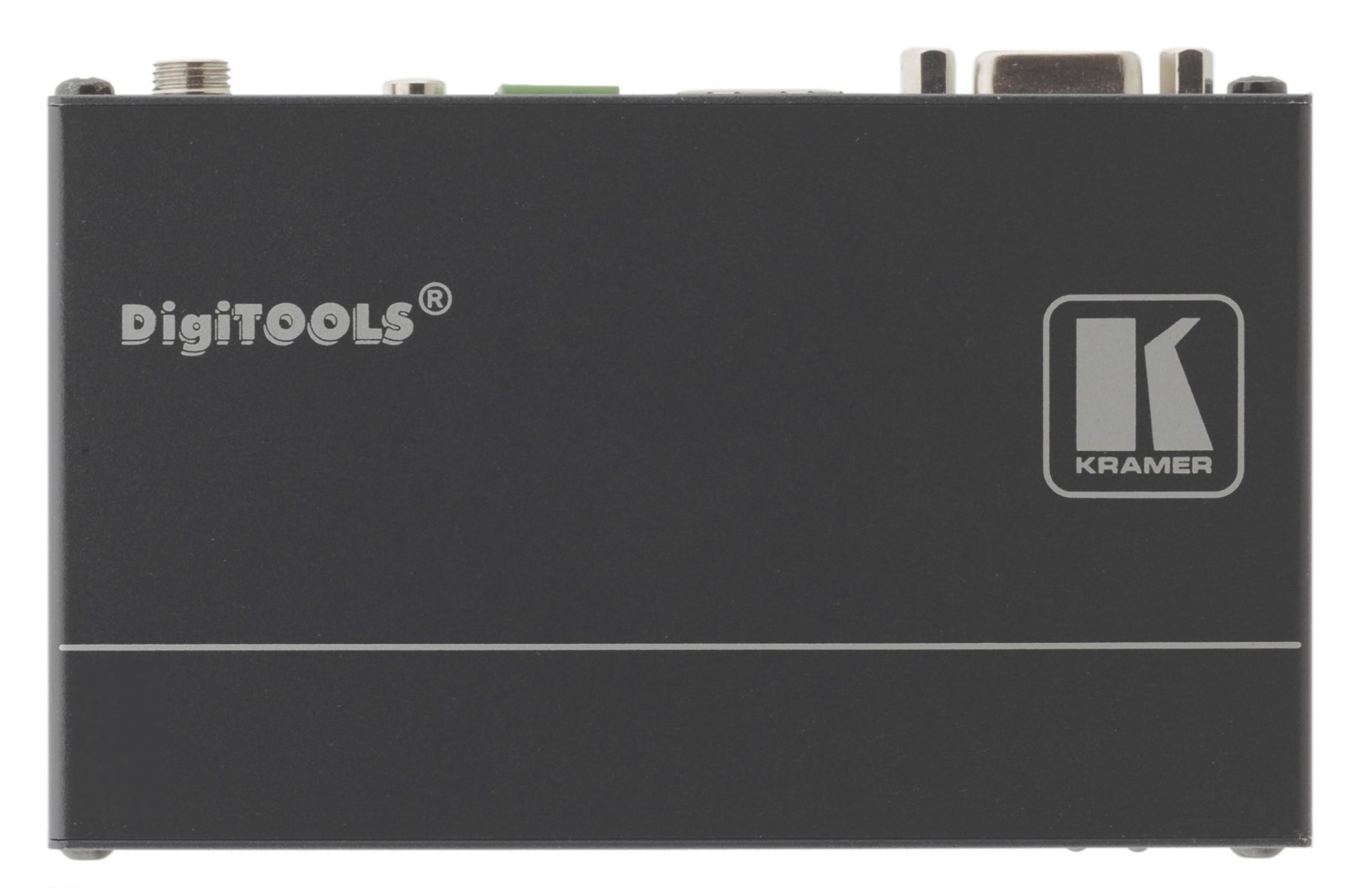

TP-125-OD - Kramer Electronics TWISTED PAIR TRANSMITTER/ EMP

The TP−125−od is a high−performance twisted pair transmitter for computer graphics video, unbalanced stereo audio and bidirectional RS−232 control command signals. It converts the input signals to a twisted pair signal and transmits them over CAT 5 cable to a TP−126−od receiver.

- Max. Resolution - WUXGA & 1080p.
- HDTV Compatible.
- System Range - More than 100m (300ft).
- EMP Protection - Protected from voltage surges induced by the electromagnetic field of nearby lightning. The system does not protect against direct lightning strikes.
- EDID Capture - Copies and stores the EDID from a display device.
- Cable - STP (shielded twisted pair) such as Kramer BC-STP CAT 5.
- Bidirectional RS-232 Interface - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit.
- Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
