Tycon Systems THE TP-DCDC-4856GD-VHP HAS BEEN QUALIFIED BY AXIS TO BE USED WITH THEIR Q60 SERI

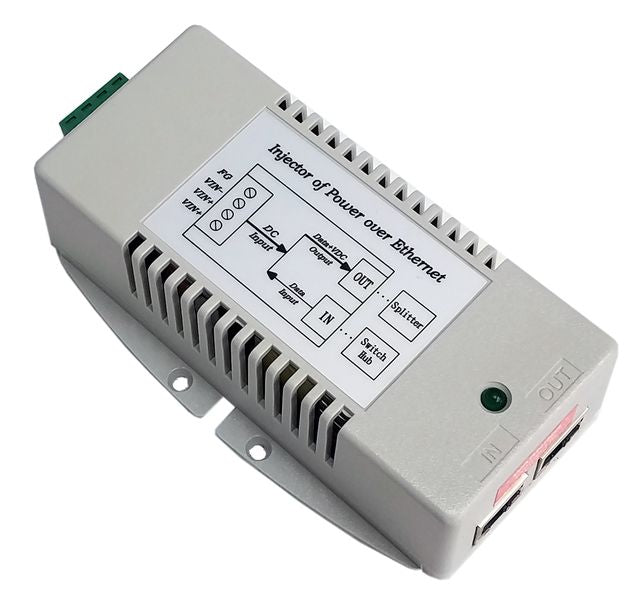

The TP-DCDC-4856GD-VHP is a special very high power DC to DC converter / POE inserter designed and qualified for use with Axis Q60 Series outdoor PTZ security cameras.The DCDC converter supplies 35W per POE channel. One POE channel is using pins 4,5,7,8 and the other POE channel utilizes pins 1,2,3,6. By splitting the power onto separate POE channels, the device can achieve 70W total supplied power to the end device. The TP-DCDC-4856GD-VHP has separate LED indicators for indicating which 802.3af/at channel is being used by the client. The RIGHT LED indicates POE Channel 1 and the LEFT LED indicates POE Channel 2.The TP-DCDC-4856GD-VHP has been qualified by Axis to be used with their Q60 series of PTZ cameras. The unit can be used with any 802.3af/at device as it will supply 35W to any 802.3af/at POE channel detected. If two channels are detected on the client then 70W power will be supplied.They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
