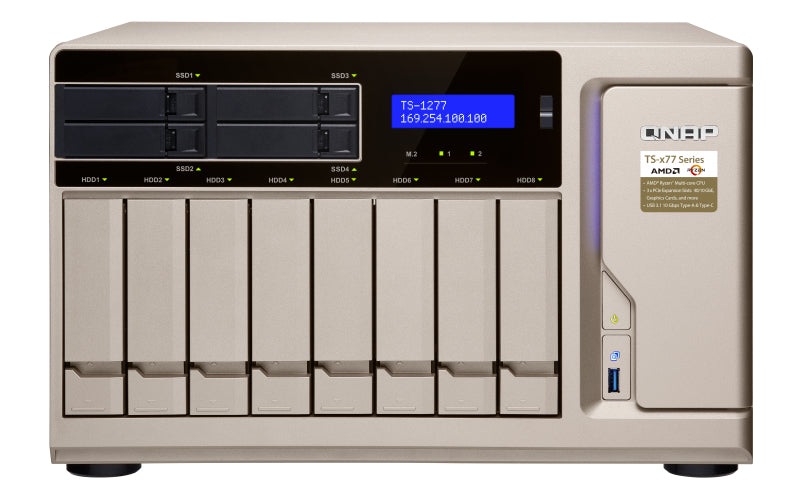

TS-1277-1600-8G-US - QNAP 12 BAY (8+4) AMD 5 1600 6 3.2GHZ, 8GB

The first Ryzen™-based NAS with up to 8 cores and 16 threads and graphics card support to redefine your virtualization and 4K processing experiences The TS-1277 powered by AMD’s new 14nm Ryzen™ processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 8 cores/16 threads native processing and Turbo Core up to 3.7 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-1277 the preeminent choice to tackle resource-demanding applications and tasks. Two M.2 SATA 6Gb/s SSD slots for caching or caching pools to accelerate system performance. PCIe expandability allows for 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 10Gbps cards, or wireless network cards. Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs. Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency. Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery. RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance. Absolute performance with AMD Ryzen™ and up to 64GB RAM Powered by a high-performance AMD Ryzen™ 7 1700 or AMD Ryzen™ 5 1600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-1277 delivers aggressive yet power-smart performance to meet your multitasking demands and is capable of running up to 16 virtual machines simultaneously*. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, the TS-1277 with gold-standard performance is your ideal choice. Top-class hardware engineering The feature-packed hardware of the TS-1277 bolsters overall system performance. Coupled with the flexible and expandable architecture, the TS-1277 fulfills diversified application needs. Extend NAS functionality with PCIe slots The TS-1277 features three PCIe slots (1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x4) that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential. 10GbE/ 40GbE adapters Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data. QM2 M.2 SSD/10GbE cards Install QNAP's innovative QM2 M.2 SSD/10GbE card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance. Wireless network cards Install a compatible wireless network card to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices. Fuel GPU-accelerated computing with a 550W power supply Graphics cards are optimized for graphical calculations and transformations, but require significantly more power compared to other hardware. The TS-1277 offers PCIe slots to support AMD Radeon™ or NVIDIA® graphics cards and a 550 watt power supply that is capable of powering a graphics card for boosting imaging processing in QTS and performance of virtual machines via GPU passthrough. When enjoying videos with the TS-1277, you can use the remote control (RM-IR004, optional purchase) that supports QButton for a more convenient control of your multimedia experience. SSD caching and auto tiering enable 24/7 optimized storage efficiency The TS-1277 provides four 2.5-inch SSD slots dedicated for caching to increase IOPS performance, and supports optional M.2 SATA 6Gb/s SSDs. Using an SSD cache boosts overall system performance, and is perfect for improving the overall workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-1277 with auto tiering that further helps continuously optimize storage efficiency across M.2 SSD, SSD, and high-capacity SATA drives with around-the-clock acceleration. The new Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD. Potentially attain performance and endurance levels similar to enterprise-grade SSDs With SSD prices continuing to become more affordable, there's never been a better time for using SSDs in your NAS to enjoy higher performance, faster file backups, smoother multimedia experiences, and optimized virtualization applications. From QTS 4.3.5 you can benefit from software-defined SSD RAID extra over-provisioning (OP) that enables you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TS-1277, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs. Performance & reliability. Your wise choice. The TS-1277 supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services. RAID 50/60 For businesses using NAS with over 10 disks, RAID 50/60 not only provides greater data protection than a single RAID 5/6, but also maximizes usable storage space compared to RAID 10. Besides data storage, and with an obvious random write performance boost when using SSD RAID, RAID 50/60 also offers a great choice for professional video streaming and database usage. iSER iSCSI Extensions for RDMA (iSER) protocol working with a compatible 10GbE/40GbE SFP+ NIC helps boost data transfer performance of the TS-1277 as VMware® ESXi storage, providing an essential tool to optimize demanding virtualization applications. Central management Designed for IT administrators, QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram. Block-based iSCSI LUN: Ideal choice for virtualization storage The TS-1277 supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2012 R2, the TS-1277 provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications. All-in-one server to host virtual machines and containers Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support. Virtualization Station Virtualization Station allows you to run multiple Windows®, Linux®, UNIX®, Android™ and vQTS virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers. Container Station Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub Registry®. It supports container import/export and permission settings. It’s easy deployment, portable, and efficient. Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch! QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provide a 10GbE PCIe network expansion card for the TS-1277 and Windows®/Linux® PCs to take advantage of high-speed LAN environments. QTS – Intelligent, intuitive and creative NAS operating system With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. The built-in App Center with hundreds of install-on-demand apps realizes far more extensive NAS functionality. QTS breaks the barriers of devices, platforms, and geography to bring you optimized cloud experiences and incorporates advanced features. Optimized collaboration with seamless file sharing and sync The TS-1277 centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-1277 will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience. Complete backup planning The TS-1277 provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity. Windows and Mac backup Use the license-free QNAP NetBak Replicator utility to back up/restore Windows® files, alongside Time Machine® support for Mac® devices. It is easy, fast and convenient. Hybrid Backup Sync Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. Snapshots for Volume & LUN Snapshot is essential for NAS data protection, and its block-level feature makes it a dependable method for protecting data in the face of the growing threat of ransomware. The TS-1277 supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS. VM backup With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-1277 are perfect for backing up virtual machines. 4K live-streaming on a private cloud Live-stream broadcasts enable real-time audience interaction and increase engagement, providing great potential for versatile business and lifestyle applications. The TS-1277 supports DJ2 Live, an exclusive live broadcasting platform based on a private cloud that supports up to 4K video live-stream broadcasts, providing a complete solution for integrating live broadcasting, storage, and sharing. You can capture live videos from computers, mobile devices or webcams to stream to DJ2 Live with high-speed intranet transmission, and store all the videos on the private, secure, high-capacity TS-1277. It also supports streaming to video services such as YouTube™ and Facebook® for universal live broadcasting. Comprehensive surveillance solution for 24/7 monitoring The TS-1277 provides an intelligent video management system that assists you in managing real-time monitoring, video & audio recording and playback with a wide range of customizable settings to safeguard your physical environment. You can use the Vmobile mobile app to manage the monitored channels at anytime and anywhere, or install the Vcam mobile app to turn your device into a network camera to instantly record to your NAS. The TS-1277 also supports QVR Pro (Beta) that integrates QNAP’s professional QVR system into the QTS operating system. You can establish a dedicated, independent storage space for surveillance data on the NAS and leverage the advantages of scalability and storage manageability from QTS. Flexible and economical storage expansion You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth. VJBOD Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-1277. Upgrade RAID Capacity Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business. Migrate to a New NAS Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations. Attach Expansion Enclosures Connect up to 2 UX-800P, UX-500P or up to 4 REXP-1000 Pro expansion enclosures. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion. Q’center Use the NAS as a central management platform to manage multiple QNAP NAS across multiple sites, monitor system logs, and manage NAS updates and maintenance. QmailAgent Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy. Browser Station Enable remote access through NAS browsers to access local LAN resources without going through complex VPN setting. IFTTT Agent A popular web automation service for combining QNAP NAS and mobile devices/apps to customize NAS applets. QIoT Suite Lite Combines the security and large capacity potential of QNAP NAS while providing an IoT solution on a private cloud. It only takes three steps to quickly deploy your own IoT application. Mobile Apps Simplify file access, NAS management, multimedia entertainment, surveillance, and download tasks on mobile devices with QNAP mobile apps.



Specification:



Storage
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Bad block scan	Yes
Storage drives installed	Yes
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, 5+HS, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD
Supported storage drive interfaces	M.2, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of M.2 (M & B) slots	2
Processor
Processor boost frequency	3.7 GHz
Processor frequency	3 GHz
Processor family	AMD Ryzenâ„¢ 7
Processor model	1700
Memory
Internal memory type	DDR4
Internal memory	64 GB
Maximum RAM supported	64 GB
Memory slots	4x UDIMM
Flash memory	5120 MB
Network
Link aggregation	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Wake-on-LAN ready	Yes
Supported network protocols	SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
Jumbo frames support	Yes
iSCSI support	Yes
DHCP server	Yes
DHCP client	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
PCI Express x8 (Gen 3.x) slots	1
PCI Express x4 (Gen 3.x) slots	1
3.5 mm (1/8-inch) out	Yes
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Hard drive
RAID support	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, 5+HS, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD
Design
Number of built-in speakers	2
Built-in speaker(s)	Yes
Fan diameter 2	3.54" (9 cm)
Cooling type	Active
Fan diameter	3.15" (8 cm)
Drive bay locking	Yes
Built-in display	Yes
Display type	LCD
Cable lock slot type	Kensington
Product colour	Bronze
Number of fans	5 fan(s)
LED indicators	HDD, SSD, Status
Chassis type	Tower
Cable lock slot	Yes
Technical details
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Built-in display	Yes
Display type	LCD
Product colour	Bronze
Number of users	4096 user(s)
Noise level	22.5 dB
LED indicators	HDD, SSD, Status
Chassis type	Tower
Number of fans	5 fan(s)
Performance
Built-in iTunes server	Yes
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	512
S.M.A.R.T. support	Yes
Hot spare	Yes
Browser supported	Microsoft Internet Explorer 10+, Google Chrome, Apple Safari 7+, Mozilla Firefox
Backup button	Yes
Universal Plug and Play (UPnP)	Yes
Built-in BitTorrent client	Yes
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH
Reset button	Yes
Operating system version	4.3
Operating system installed	QNAP Turbo System
Number of users	4096 user(s)
Noise level	22.5 dB
Management protocols	SNMP
Third-party support	Yes
Snapshot	Yes
Cooling
Cooling type	Active
Fan diameter	3.15" (8 cm)
Number of fans	5 fan(s)
Security
Drive bay locking	Yes
Cable lock slot type	Kensington
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH
Cable lock slot	Yes
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operating system version	4.3
Operating system installed	QNAP Turbo System
Management features
On/off switch	Yes
Reset button	Yes
Management protocols	SNMP
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	550 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	80.88 W
Power consumption (sleep)	55.91 W
Number of power supply units	1
Weight & dimensions
Width	14.6" (369.9 mm)
Depth	12.6" (319.8 mm)
Height	9.24" (234.6 mm)
Weight	24.9 lbs (11.3 kg)
Package weight	29.8 lbs (13.5 kg)
Packaging content
Quick installation guide	Yes
Cables included	AC, LAN (RJ-45)
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Package weight	29.8 lbs (13.5 kg)
Cables included	AC, LAN (RJ-45)
