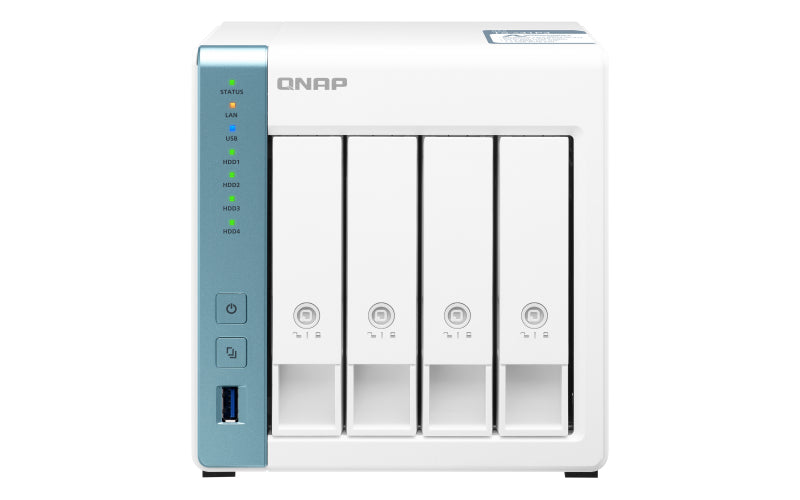

TS-431P3-2G-US - QNAP 4-BAY HIGH-PERFORMANCE PRIVATE CLOU

Powered by Annapurna Labs Alpine AL-314, quad-core 1.7 GHz processor, 2GB DDR3L RAM, one 1GbE LAN port and one 2.5GbE LAN port, the TS-431P3 features a 2.5GbE RJ45 port, providing up to 2.5 times the speed of regular Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. The TS-431P3 ensures data security by supporting AES 256-bit encryption and various local/remote/cloud backup options – including snapshot protection that allows for files and data to be reverted to previously-recorded states if they are accidentally deleted, modified or affected by malware. Build a faster home network with QNAP The TS-431P3 includes a 1GbE port and a 2.5GbE port to provide a smoother NAS experience and multimedia playback. Additional network connection options from QNAP include USB 3.2 Gen 1 to 5GbE adapters (supports N-BASET/Multi-Gig), QXG 5GbE PCIe cards, and QNAP QSW 10GbE switches. All these options allow users to revolutionize their home network at a cost-effective price. The TS-431P3 features three USB 3.2 Gen 1 port that delivers outstanding multitasking performance. Easy and Secure File Management File Station allows direct management of files stored on the TS-431P3 and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Users can also use Microsoft Office Online to directly view/edit Microsoft Office documents stored on the TS-431P3. Confidential/sensitive data can also be encrypted to add extra security. Multi-Point File Backup, Access, and Sync The TS-431P3 supports file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-431P3 becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps backup/synchronize data on the TS-431P3 to another QNAP NAS, remote server, or cloud storage for disaster recovery. Additionally, QuDedup technology greatly improves the efficiency of multi-version backup to destination storage, while optimizing storage utilization. You can install the QuDedup Extract Tool on your computer and restore deduplicated files to their normal status. Protect Important Data with Snapshots Snapshots help protect data by fully recording the NAS system state and metadata. With snapshots, users can quickly restore files to previously-recorded states if files are accidentally deleted or modified, or if the system is compromised by malware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data. Take full control of NAS system status and data security Notification Center consolidates all QTS system events and alerts, providing a single-app solution for notifications. Security Counselor recommends actions and settings to improve the TS-431P3 security. Comprehensive surveillance solution for 24/7 security Surveillance Station features a user-friendly interface and supports over 3,000 IP cameras. With an expandable IP camera channel licensing system, users can build a comprehensive surveillance system for real-time monitoring, video and audio recording and playback. Budget-conscious users can also save money on cameras by using USB webcams to record footage. Surveillance feeds can be monitored at any time by using the Vmobile app on mobile devices. Extend NAS functionality with Containers and Apps Container Station integrates LXC and Docker® lightweight virtualization technologies, allowing users to host and operate containerized applications directly on the TS-431P3. With many popular and fully-configured applications available from the built-in Docker Hub® (including for automation and multimedia), the TS-431P3 provides users with a vast array of potential functions and application capabilities. The TS-431P3 also features apps for backup/sync, content management, communications, downloading, and entertainment. Every app can be installed from the QTS App Center with a single click. Multiply Your Productivity The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more. QmailAgent Centrally manage and switch between different email accounts, back up emails to the TS-431P3, and safeguard email security and personal privacy. Notes Station 3 Notes Station 3 provides the advantages of collaborative note-taking with improved productivity to provide higher efficiency for your workgroup. Smart Filing Qfiling automates file organization. Files are automatically archived into folders based on your settings. Full-Text Search Qsirch quickly finds images, music, videos, documents, emails, and other files. Flexible and economical storage expansion QNAP provides easy storage capacity expansion solutions. Here are several ways to expand the TS-431P3 storage to accommodate data growth: Upgrade RAID Capacity Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-431P3. Attach Expansion Enclosure Connect two RAID expansion enclosures (TR-004 or TR-002) or two USB 3.2 Gen 2 JBOD (TL-D800C) and use the QTS Storage & Snapshots Manager to handle NAS capacity expansion. Migrate to a New NAS Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.



Specification:



Storage
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Bad block scan	Yes
Storage drives installed	No
Number of storage drives supported	4
RAID support	Yes
Supported file systems	FAT32,HFS+,NTFS,exFAT,ext3,ext4
RAID levels	0,1,5,6,10,JBOD
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
Processor
Processor manufacturer	Annapurna Labs
Processor frequency	1.7 GHz
Processor family	Annapurna Labs
Processor model	Alpine AL-314
Processor cores	4
Memory
Internal memory type	DDR3
Internal memory	4 GB
Maximum RAM supported	8 GB
Memory slots	1
Flash memory	512 MB
Memory form factor	SO-DIMM
Network
Load balancing system	Yes
Link aggregation	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes
Jumbo frames support	Yes
iSCSI support	Yes
DHCP server	Yes
DHCP client	Yes
WLAN adapter supported	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	2
Hard drive
RAID support	Yes
Supported file systems	FAT32,HFS+,NTFS,exFAT,ext3,ext4
RAID levels	0,1,5,6,10,JBOD
Design
Cooling type	Active
Fan diameter	4.72" (12 cm)
Cable lock slot type	Kensington
Product colour	Turquoise, White
Number of fans	1 fan(s)
LED indicators	LAN, Power, Status, USB
Chassis type	Tower
Cable lock slot	Yes
Technical details
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Product colour	Turquoise, White
Noise level	19.5 dB
LED indicators	LAN, Power, Status, USB
Chassis type	Tower
Buzzer	Yes
Number of fans	1 fan(s)
Performance
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
S.M.A.R.T. support	Yes
Network Time Protocol (NTP) client	Yes
Hot spare	Yes
Browser supported	Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
Backup button	Yes
Universal Plug and Play (UPnP)	Yes
Built-in BitTorrent client	Yes
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Server operating systems supported	Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Web-based management	Yes
Security algorithms	256-bit AES,FIPS 140-2,HTTPS,SNMP
Reset button	Yes
Operating system version	4.4.2
Operating system installed	QNAP Turbo System
Noise level	19.5 dB
Management protocols	SNMP
Buzzer	Yes
Access Control List (ACL)	Yes
Third-party support	Yes
Snapshot	Yes
USB copy function	Yes
Cooling
Cooling type	Active
Fan diameter	4.72" (12 cm)
Fan voltage	12 V
Number of fans	1 fan(s)
Security
Cable lock slot type	Kensington
Security algorithms	256-bit AES,FIPS 140-2,HTTPS,SNMP
Cable lock slot	Yes
Access Control List (ACL)	Yes
Software
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Server operating systems supported	Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operating system version	4.4.2
Operating system installed	QNAP Turbo System
Management features
On/off switch	Yes
Web-based management	Yes
Reset button	Yes
Management protocols	SNMP
Power
Power supply location	External
Power supply unit (PSU) capacity	90 W
Fan voltage	12 V
AC input voltage	100 - 240 V
Power consumption (typical)	26.7 W
Power consumption (sleep)	11.65 W
External power adapter	Yes
Weight & dimensions
Width	6.3" (160 mm)
Depth	8.62" (219 mm)
Height	6.34" (161 mm)
Weight	6.61 lbs (3 kg)
Package weight	9.48 lbs (4.3 kg)
Packaging content
Number of screws	28
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
System requirements
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Server operating systems supported	Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Package weight	9.48 lbs (4.3 kg)
Cables included	AC, LAN (RJ-45)
