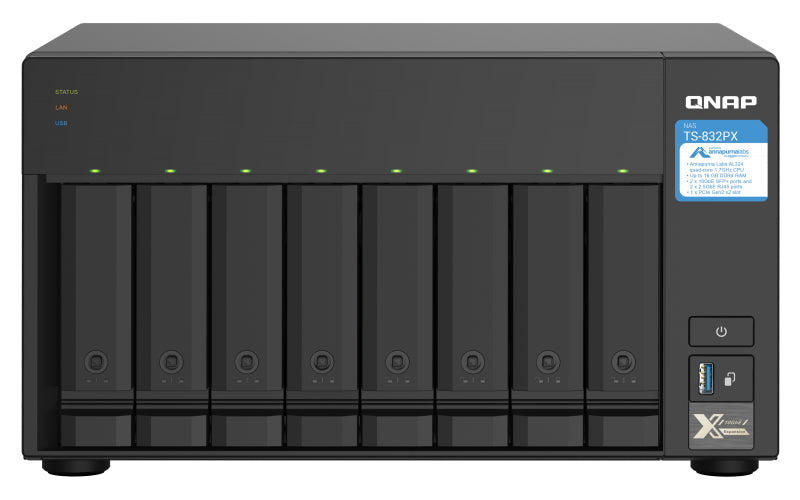

TS-832PX-4G-US - QNAP 4-PORT MINISAS HD HOST BUS ADAPTER, BROA

The quad-core 1.7GHz TS-832PX features eight 3.5-inch SATA 6GB/s drive bays, providing huge storage potential for a wide range of applications and everyday usage. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-832PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing. Various PCIe cards are also supported, including QM2 cards that provide M.2 SATA/NVMe SSD caching and Qtier™ auto-tiering storage to boost NAS performance. Energy-efficient Quad-core Processor Powered by 64-bit quad-core 1.7GHz ARM Cortex-A57 processor and 4 GB DDR4 RAM (expandable to 16 GB), the TS-832PX features is highly energy efficient without impacting system or application performance. High-speed 10GbE and 2.5GbE connectivity The TS-832PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment. Extend NAS Functionality with a PCIe Card With a PCIe Gen 2.0 slot, the TS-832PX provides flexibility in extending NAS functionality and potential applications. To optimize system performance, install a QNAP QM2 card for M.2 SATA/NVMe SSD caching/10GbE connectivity and use with Qtier for optimal system performance. You can also use a QNAP Wi-Fi 6 (802.11AX) network card to create a wireless environment. Additional options include QXG 5GbE/2.5GbE network adapter cards and USB 3.2 Gen 2 (10Gbps) cards. All these options ensure that the TS-832PX can be upgraded to fit future requirements. Protect Important Data with Snapshots Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data. The TS-832PX supports up to 256 snapshots per NAS and up to 64 snapshots per volume or LUN. Multi-Point File Backup, Access, and Sync The TS-832PX supports common file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-832PX becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps you easily backup or synchronize data on the TS-832PX to another QNAP NAS, remote server, or cloud storage (including Microsoft One Drive®, Google Drive™, and Dropbox®) for disaster recovery. Smart AI Photo Management QuMagie integrates QuMagie Core AI image recognition technology for facial recognition, subject identification, and geotagging photos. Similar photos are categorized into People, Places, and Things albums. QuMagie also features a built-in timeline scroll, customizable folder covers, iOS® Live Photo display and a powerful search tool, to provide you with the ultimate photo management and image sharing solution. Low-latency Access to Cloud Data with Cloud Storage Gateways By deploying cloud storage gateways and enabling local caching on the TS-832PX, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience. HybridMount File-Based Cloud Gateway Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis. VJBOD Cloud Block-Based Cloud Gateway VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files. Easily find and automatically organize files The TS-832PX provides greater convenience for managing files. You can quickly find files using Qsirch and auto-archive them with Qfiling. File search Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters. Auto archiving Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency. Secure remote access to your QNAP NAS Use myQNAPcloud Link to access, share, download, and manage files stored on an HQ-based NAS via the Internet. QNAP NAS also supports VPN services for remote workers to access the NAS and resources on a private network from the Internet. You can also use QVPN Device Client powered by QNAP's proprietary QBelt protocol to easily connect to your TS-832PX and use measurement tools to know the speed of your VPN connections and connection history. Flexible and economical storage expansion QNAP provides several ways to expand the storage capacity of the TS-832PX to accommodate data growth: Upgrade RAID Capacity Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-832PX. Attach Expansion Enclosures Connect two expansion enclosures (4-bay TR-004, 2-bay TR-002) or one 8-bay TL-D800C, 4-bay TL-D400S, 8-bay TL-D800S JBOD and use the Storage & Snapshots Manager to handle NAS capacity expansion. Migrate to a New NAS Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations. Multiply Your Productivity QVR Pro Build a secure surveillance environment without any extra software needed. Provides free embedded channels and you can also purchase QVR Pro licenses to deploy a large-scale surveillance network. Notification Center Consolidates all QTS system events, alerts, and notifications for easy NAS management, keeping you always informed of your NAS status. Security Counselor A security portal for checking weaknesses and providing recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.



Specification:



Storage
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Bad block scan	Yes
Storage drives installed	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	8
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	FAT32,HFS+,NTFS,ext3,ext4
RAID levels	0,1,5+S,5,6,6+HS,10+HS,10,50,60,JBOD
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
Processor
Processor manufacturer	Annapurna Labs
Processor frequency	1.7 GHz
Processor family	Annapurna Labs
Processor model	AL324
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	4 GB
Maximum RAM supported	16 GB
Memory slots	1x LDIMM
Flash memory	512 MB
Memory form factor	DIMM
Network
Load balancing system	Yes
Link aggregation	Yes
Ethernet LAN data rate supported (max)	10000 Mbit/s
Dynamic DNS (DDNS)	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Wake-on-LAN ready	Yes
Jumbo frames support	Yes
iSCSI support	Yes
DHCP server	Yes
DHCP client	Yes
WLAN adapter supported	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Fiber ports quantity	2
Fiber optic connector	SFP+
Ethernet LAN (RJ-45) ports	2
Hard drive
RAID support	Yes
Supported file systems	FAT32,HFS+,NTFS,ext3,ext4
RAID levels	0,1,5+S,5,6,6+HS,10+HS,10,50,60,JBOD
Design
Cooling type	Active
Fan diameter	2.76" (7 cm)
Product colour	Aluminum, Black
Number of fans	2 fan(s)
LED indicators	HDD, LAN, Status
Chassis type	Rack (2U)
Technical details
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Product colour	Aluminum, Black
Noise level	24.9 dB
LED indicators	HDD, LAN, Status
Chassis type	Rack (2U)
Buzzer	Yes
Number of fans	2 fan(s)
Performance
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
S.M.A.R.T. support	Yes
Hot spare	Yes
Browser supported	Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
Universal Plug and Play (UPnP)	Yes
Built-in BitTorrent client	Yes
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Server operating systems supported	Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Mac operating systems supported	Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Linux operating systems supported	CentOS 7.0,Solaris 10 U4,Solaris 10 U5,Ubuntu 14.04,openSUSE 12.1,openSUSE 12.2
Web-based management	Yes
Security algorithms	256-bit AES,FIPS 140-2,HTTPS,SNMP,SSH
Reset button	Yes
Operating system version	4.4.3
Operating system installed	QNAP Turbo System
Noise level	24.9 dB
Management protocols	SNMP
Buzzer	Yes
Access Control List (ACL)	Yes
Third-party support	Yes
Snapshot	Yes
Cooling
Cooling type	Active
Fan diameter	2.76" (7 cm)
Fan voltage	12 V
Number of fans	2 fan(s)
Security
Security algorithms	256-bit AES,FIPS 140-2,HTTPS,SNMP,SSH
Access Control List (ACL)	Yes
Software
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Server operating systems supported	Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Mac operating systems supported	Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Linux operating systems supported	CentOS 7.0,Solaris 10 U4,Solaris 10 U5,Ubuntu 14.04,openSUSE 12.1,openSUSE 12.2
Operating system version	4.4.3
Operating system installed	QNAP Turbo System
Management features
On/off switch	Yes
Web-based management	Yes
Reset button	Yes
Management protocols	SNMP
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Fan voltage	12 V
AC input voltage	100 - 240 V
Power consumption (typical)	56.412 W
Number of power supply units	1
Weight & dimensions
Width	19" (482 mm)
Depth	21" (534 mm)
Height	3.5" (89 mm)
Weight	20.8 lbs (9.45 kg)
Package weight	33.5 lbs (15.2 kg)
Packaging content
Number of screws	56
Cables included	AC, LAN (RJ-45)
System requirements
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Server operating systems supported	Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Mac operating systems supported	Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Linux operating systems supported	CentOS 7.0,Solaris 10 U4,Solaris 10 U5,Ubuntu 14.04,openSUSE 12.1,openSUSE 12.2
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Package weight	33.5 lbs (15.2 kg)
Cables included	AC, LAN (RJ-45)
