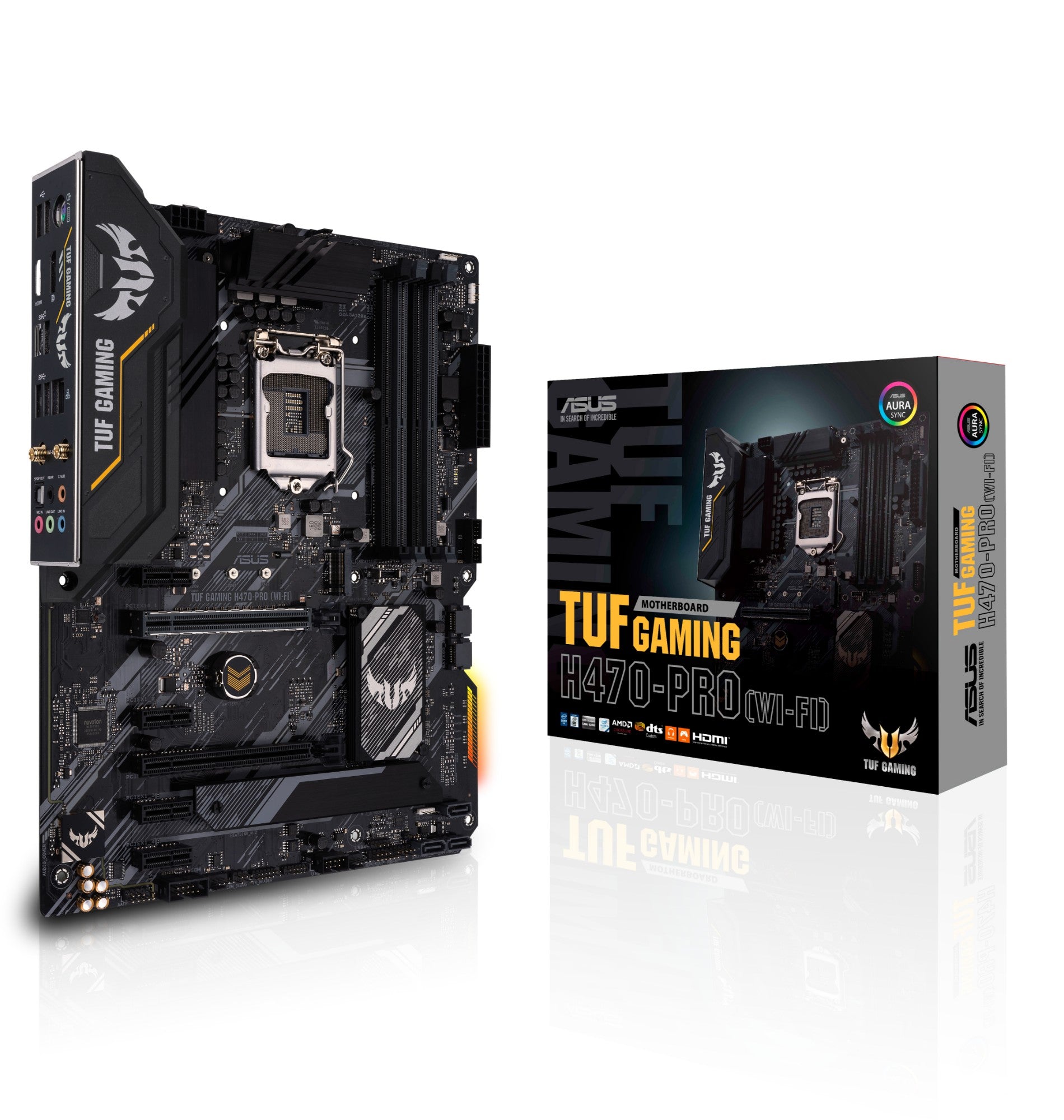

TUF GAMING H470-PRO (WI-FI) - ASUS TUF GAMING H470-PRO WIFI 6 LGA1200 (INTEL 10TH GEN) ATX GAMING MOTHERBOARD

DURABLE. STABLE. RELIABLE. TUF Gaming H470-PRO (WiFi) distills essential elements of the latest Intel platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case. ROCK-SOLID PERFORMANCE With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for faster memory and storage, TUF GAMING H470-PRO (WI-FI) is the perfect foundation for your next high-core-count battle rig. ENHANCED 8-PIN SOCKETS ・ Extreme durability ・ Prevent hotspots and connector failure Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure TUF CHOKES Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. TUF CAPACITORS Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan. Digi+ VRM The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times. VRM HEATSINK A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation. THERMAL PAD High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink. M.2 HEATSINK The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability. Dual M.2 (up to 32 Gbps) Dual M.2 slots support data-transfer speeds of up to 32 Gbps on the x4 PCI Express® 3.0 bandwidth, making it perfect for OS or application drives for quicker boot-up and app load times. ASUS OPTIMEM Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. USB 3.2 Gen 2 Type-A & Type-C Numerous USB ports support gaming rigs loaded with peripherals, including a front-panel USB Type-C connector with fast USB 3.2 Gen 2 connectivity for compatible cases. Thunderbolt 3 support An integrated Thunderbolt 3 header supports up to 40 Gbps of aggregate interface bandwidth. One Thunderbolt 3 port can support up to six devices in a daisy-chain, and provide up to 100 watts of power to fast-charge devices. EASY PC DIY TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. Build with confidence TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. SafeSlot SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points. ESD guards ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. KEYBOARDS AND MOUSE CONNECTORS Additional on-circuit ESD transient-voltage-suppression. USB CONNECTORS TVS diode for surface-mount and dual in-line package. TUF LANGuard. BEST SURGE PROTECTION TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity. DRAM overvoltage protection Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices. Stainless-steel back I/O panel TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing. IMMERSIVE GAMING TUF GAMING H470-PRO (WI-FI) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalised gaming atmosphere. Intel WiFi 6 AX201 The Intel WiFi 6 AX201 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimised for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. TUF GAMING AUDIO COVER Effective shielding preserves the integrity of audio signals to ensure best quality. HIGH-DEFINITION AUDIO Premium Japanese audio capacitors provide warm, natural, and immersive sound. EXCLUSIVE S1200A CODEC ASUS-exclusive codec delivers an expansive soundstage and dynamic sound. AUDIO SHIELDING Separates analogue/digital signal domains, significantly reducing multi-lateral interference. signal-to-noise ratio. PRISTINE AUDIO The unique audio codec designed in close collaboration with Realtek for TUF Gaming Z490 series motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality. DTS Custom for gaming headsets Hone your battle skills with exclusive DTS Custom onboard audio. Utilising advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game. AERIAL MODE Experience audio as though hovering above the game world, with sound coming from ahead — perfect for MOBA, RTA, strategy and sports titles! SOUNDSCAPE MODE The ideal audio envelope for MMO, RPG, action and horror games — your ears will put you in the centre of the action! TACTICAL MODE Shhh — is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep! Outshine the Competition A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.



Specification:



Performance
Product type	Headset
Recommended usage	Gaming
Wearing style	Head-band
Product colour	Black
Control unit type	In-line control unit
Ports & interfaces
Connectivity technology	Wired
3.5 mm connector	Yes
USB connectivity	Yes
Bluetooth	No
Headphones
Headphone frequency	20 - 20000 Hz
Impedance	32 Ω
Magnet type	Neodymium
Driver unit	1.97" (5 cm)
Microphone
Microphone type	Boom
Microphone direction type	Unidirectional
Detachable microphone	Yes
Microphone frequency	100 - 10000 Hz
Microphone sensitivity	40 dB
Microphone mute	Yes
System requirements
Mac compatibility	Yes
Windows operating systems supported	Yes
Packaging content
Quantity	1
Quick start guide	Yes
Supplier features
Material	Stainless steel
Other features
2.5 mm connector	No
Material	Stainless steel
Quick start guide	Yes
