Description

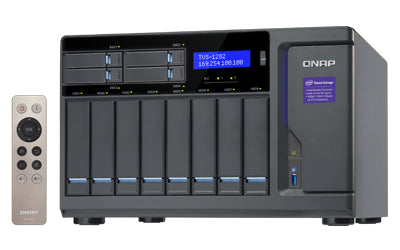

The TVS-1282 features advanced hardware by adopting 6th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-1282 also supports smooth 4K 60 fps video transfer and display, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-1282 presents an ideal choice for a complete business-ready storage solution. - Built-in M.2 SATA 6Gb/s slots & 2.5†SSD slots - Qtier technology and SSD cache enable 24/7 optimized storage efficiency - The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications - Triple HDMI output (including one HDMI 2.0) for smooth 4K video playback - Scalable design with economical QNAP storage expansion enclosures - Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-1282’s storage capacity - Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization
Specification:
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
| RAID levels | 0,1,5,6,10,10+HS,JBOD |
| Processor | |
| Processor generation | 6th gen Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 71 °C |
| System bus rate | 8 GT/s |
| Stepping | R0 |
| Scalability | 1S |
| Processor threads | 8 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor series | Intel Core i7-6700 Desktop series |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Processor code | SR2BT |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Processor boost frequency | 4 GHz |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 2x8,1x8+2x4,1x16 |
| On-board graphics adapter model | Intel® HD Graphics 530 |
| ECC supported by processor | No |
| CPU configuration (max) | 1 |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Conflict-Free processor | Yes |
| Processor ARK ID | 88196 |
| Processor frequency | 3.4 GHz |
| Processor family | Intel Core i7 |
| Processor model | i7-6700 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 64 GB |
| Memory clock speed | 2133 MHz |
| Maximum RAM supported | 64 GB |
| Memory slots | 4 x DIMM |
| Flash memory | 512 MB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Supported network protocols | CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SMTP, SMSC |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| HDMI ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 4 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
| RAID levels | 0,1,5,6,10,10+HS,JBOD |
| Graphics | |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics adapter model | Intel® HD Graphics 530 |
| On-board graphics adapter ID | 1912 |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| Design | |
| Cooling type | Active |
| Fan diameter | 3.15" (8 cm) |
| Built-in display | Yes |
| Display type | LCD |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| LED indicators | HDD, SSD |
| Chassis type | Tower |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Built-in display | Yes |
| Display type | LCD |
| Product colour | Black |
| Noise level | 21.6 dB |
| Multilingual support | Yes |
| LED indicators | HDD, SSD |
| Chassis type | Tower |
| Buzzer | Yes |
| Number of fans | 3 fan(s) |
| Performance | |
| Built-in iTunes server | Yes |
| Built-in FTP server | Yes |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Browser supported | Microsoft Internet Explorer 10+, Google Chrome, Apple Safari 7+, Mozilla Firefox |
| Remotely operated | Yes |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2003,Windows Server 2003 R2,Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Web-based management | Yes |
| Security algorithms | 256-bit AES,HTTPS,SSH |
| Reset button | Yes |
| Operating system version | 4.2 |
| Operating system installed | QNAP Turbo System |
| Noise level | 21.6 dB |
| Multilingual support | Yes |
| Management protocols | SNMP |
| Buzzer | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 3.15" (8 cm) |
| Number of fans | 3 fan(s) |
| Security | |
| Security algorithms | 256-bit AES,HTTPS,SSH |
| Software | |
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2003,Windows Server 2003 R2,Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operating system version | 4.2 |
| Operating system installed | QNAP Turbo System |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Management protocols | SNMP |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Number of power supply units | 1 |
| Weight & dimensions | |
| Width | 14.6" (369.9 mm) |
| Depth | 12.6" (319.8 mm) |
| Height | 9.24" (234.6 mm) |
| Weight | 25.6 lbs (11.6 kg) |
| Package weight | 30.2 lbs (13.7 kg) |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | AC, LAN (RJ-45) |
| Processor special features | |
| Thermal solution specification | PCG 2015C |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 16 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Secure Key | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Enhanced Halt State | Yes |
| Intel Clear Video Technology | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Graphics & IMC lithography | 14 nm |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| System requirements | |
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2003,Windows Server 2003 R2,Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 30.2 lbs (13.7 kg) |
| Cables included | AC, LAN (RJ-45) |
| Other features | |
| Processor ARK ID | 88196 |
