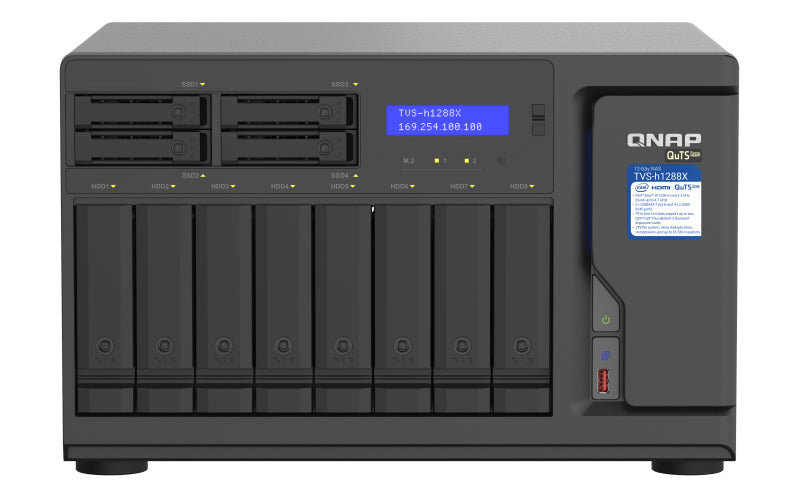

TVS-H1288X-W1250-16G-US - QNAP 12-BAY TURBONAS (8 X 3.5 HDD + 4 X

The high-capacity TVS-h1288X features a powerful Intel® Xeon® W processor and allows for installing two QNAP QXP-T32P Thunderbolt™ 3 PCIe expansion cards (sold separately) to attain four Thunderbolt™ 3 ports, making it a perfect match for Thunderbolt™-equipped Mac® and Windows® users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1288X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications. Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory Intel® Xeon® W processors are designed for a wide range of creative professionals. Powered by an Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Burst up to 4.7 GHz), the TVS-h1288X has enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and 4 Long-DIMM slots, the TVS-h1288X’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads. Streamline video editing and 4K workflows with Thunderbolt™ 3 connectivity You can install two QXP-T32P Thunderbolt™ 3 expansion cards (sold separately) to the PCIe Gen 3 x4 slots of the TVS-h1288X and transform it into a Thunderbolt™ 3 NAS with quad-port Thunderbolt™ 3 connectivity. Up to four Thunderbolt™-equipped workstations can be connected to the TVS-h1288X to achieve greater teamwork efficiency in 4K workflows, file storage, backup, and sharing. An SLC/MLC SSD RAID 5 configuration is recommended for the highest possible performance and the best storage allocation for your NAS. Thunderbolt™ 3 + 10Gb Ethernet: perfect for studios and post-production houses The TVS-h1288X can simultaneously run general Ethernet services with the built-in 10GBASE-T LAN card in addition to the Thunderbolt™ 3 network, completely independently and with no bandwidth interference. The media resources in the TVS-h1288X can be easily accessed by Thunderbolt™ and Ethernet workstations for different concurrent tasks with increased productivity. Dual 10GbE connectivity optimizes high-speed data transfer The TVS-h1288X comes with a pre-installed dual-port 10GBASE-T network card (supports 10GbE/1GbE), supporting failover and up to 20Gb/s bandwidth under Port Trunking, to improve bandwidth-demanding data center, virtualization applications, and high-speed backup and recovery. The TVS-h1288X is also ideally matched with QNAP’s managed and unmanaged 10GbE switches to form high-speed, secure and scalable network environments without going over budget. Direct 4K HDMI output The TVS-h1288X features Intel® UHD Graphics P630 that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K (4096 x 2160p) @30Hz, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-h1288X to an HDMI display, you can directly watch multimedia content saved on the NAS with QNAP RM-IR004 remote control (sold separately). Set SSD caching to boost IOPS with M.2 NVMe SSD The TVS-h1288X comes with four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance. This is especially perfect for databases and virtual machine applications. With dedicated SSD bays/slots, the TVS-h1288X allows you to dedicate all of the 3.5-inch drive bays for high-capacity hard drives, ensuring both maximized storage capacity and performance. ZFS-based QuTS hero operating system enhances NAS performance and data integrity QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks. Tiered storage configuration for a QuTS hero NAS Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero. Inline data deduplication, compression, and compaction drives big data storage efficiency QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TVS-h1288X optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. Real-time SnapSync ensures minimal RPO with real-time disaster recovery Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss. Snapshots multiply backup protection Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control. HBS simplifies 3-2-1 backup plans HBS centralizes backup, restoration, and synchronization for easily transferring data in the TVS-h1288X to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster. All-in-one virtual machine and container hosting solution You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment. Virtualization Station Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers. Container Station Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices. License-free VMware® and Hyper-V backup appliance With Hyper Data Protector, the TVS-h1288X becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services. PCIe expansion for 40GbE connectivity or graphics cards Install various expansion cards based on your needs to fulfill greater I/O capability. Move business data to the cloud and enjoy low latency access to cloud-based data The TVS-h1288X perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications. HybridMount file-based cloud gateway Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis. VJBOD Cloud block-based cloud gateway VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos. Subscribe to QVR Elite surveillance solution for 24/7 security QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. You can arrange a dedicated, independent storage space for surveillance data on the TVS-h1288X and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. With QVR Pro Client software installed on your Windows®/Mac® or mobile devices, taking full control over monitored areas becomes more convenient and easier. Build an affordable Fibre Channel SAN environment Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TVS-h1288X, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security. Boxafe Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the TVS-h1288X. Security Counselor A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software. Qsirch QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.



Specification:



Storage
Online RAID expansion	Yes
Disk roaming	Yes
Storage drives installed	No
Supported storage drive types	HDD & SSD
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
RAID levels	0, 1, 5, 6, 10, JBOD
Supported storage drive interfaces	M.2, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
RAID rebuild	Yes
Processor
Processor manufacturer	Intel
Processor threads	4
On-board graphics card model	Intel UHD Graphics 710
CPU configuration (max)	1
Bus type	DMI4
Processor frequency	3.7 GHz
Processor family	Intel® Pentium®
Processor model	G7400
Processor cores	2
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	64 GB
Memory slots	2
Flash memory	5000 MB
Memory form factor	SO-DIMM
Network
Ethernet LAN data rate supported (max)	10000 Mbit/s
Dynamic DNS (DDNS)	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes
Jumbo frames support	Yes
iSCSI support	Yes
DHCP server	Yes
Ports & interfaces
USB port	Yes
HDMI version	1.4b
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
PCI Express x16 (Gen 4.x) slots	1
Concurrent connections	700
PCI Express x2 (Gen 3.x) slots	2
Hard drive
RAID support	Yes
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
RAID levels	0, 1, 5, 6, 10, JBOD
Graphics
On-board graphics card model	Intel UHD Graphics 710
Design
Fan diameter 2	2.36" (6 cm)
Cooling type	Active
Fan diameter	4.72" (12 cm)
Drive bay locking	Yes
Built-in display	Yes
Display type	LCD
Cable lock slot type	Kensington
Product colour	Black
Number of fans	2 fan(s)
LED indicators	HDD, LAN, M.2, Status, USB
Chassis type	Tower
Cable lock slot	Yes
Technical details
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Built-in display	Yes
Display type	LCD
Product colour	Black
Multilingual support	Yes
LED indicators	HDD, LAN, M.2, Status, USB
Chassis type	Tower
Buzzer	Yes
Number of fans	2 fan(s)
Performance
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	Thick, Thin
S.M.A.R.T. support	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Mozilla Firefox, Google Chrome, Microsoft Edge
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	IBM AIX 7.1, Solaris 10
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS, TLS
Reset button	Yes
Operating system version	h5.0.0
Operating system installed	QuTS hero
Multilingual support	Yes
Management protocols	SNMP V2/V3
Buzzer	Yes
Access Control List (ACL)	Yes
Snapshot	Yes
USB copy function	Yes
Cooling
Cooling type	Active
Fan diameter	4.72" (12 cm)
Fan voltage	12 V
Number of fans	2 fan(s)
Security
Drive bay locking	Yes
Cable lock slot type	Kensington
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS, TLS
Cable lock slot	Yes
Access Control List (ACL)	Yes
Software
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	IBM AIX 7.1, Solaris 10
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operating system version	h5.0.0
Operating system installed	QuTS hero
Management features
On/off switch	Yes
Reset button	Yes
Management protocols	SNMP V2/V3
Power
Power consumption (HDD standby)	34.906 W
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Fan voltage	12 V
AC input voltage	100 - 240 V
Power consumption (typical)	78.574 W
Number of power supply units	1
Weight & dimensions
Width	7.85" (199.3 mm)
Depth	11" (280.2 mm)
Height	7.41" (188.2 mm)
Packaging content
Number of screws	28
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Drive tray key included	Yes
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	IBM AIX 7.1, Solaris 10
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Cables included	AC, LAN (RJ-45)
