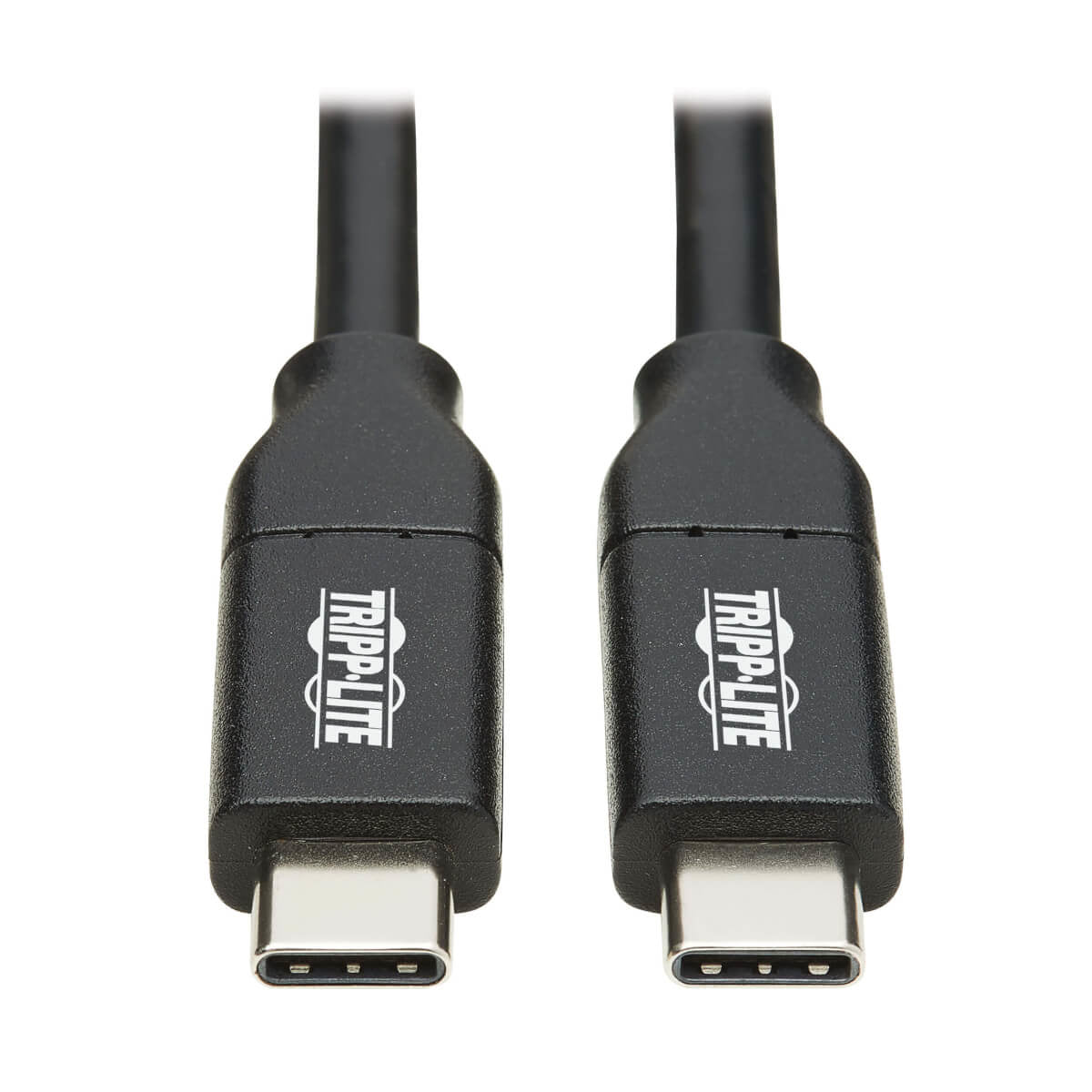

U040-C2M-C-5A - Tripp Lite USB C CABLE USB 2.0 5A USB-IF MM 2M

USB-C to USB-C Cable Connects 2 USB-C Devices, Including MacBooks and Smartphones This two-meter USB Type-C to Type-C cable allows you to connect one USB-C device to another. For instance, a laptop to a docking station, your smartphone to a wall charger, or a hard drive or flash drive to a computer or tablet. The USB-C to C cable is compatible with any device with a USB-C or Thunderbolt 3 port, including MacBooks, Ultrabooks and Chromebooks. PD Charging Cable Produces up to 100W for Rapid Syncing and Charging The Power Delivery cable provides power output up to 5 amps (100 watts), which is sufficient for fast-charging, syncing and powering most large-capacity devices, including the MacBook Pro. It also supports USB 2.0 data transfer rates up to 480 Mbps. The USB Type-C to USB Type-C cable is backward compatible with previous USB generations, allowing you to use it with older equipment. Reversible USB-C Connectors Attach in Either Direction Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connectors plug into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time. USB-IF Certification Ensures Rigorous Testing and Top-of-the-Line Performance This cable meets the high standards of USB-IF (USB Implementers Forum, Inc.), a non-profit organization consisting of companies that developed the USB specification. Receiving USB-IF certification means the U040-C2M-C-5A meets the industry’s highest environmental, mechanical and electrical standards. It operates with your USB peripherals, adapters and cables with top efficiency and safety.



Specification:



Features
Country of origin	Vietnam
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	28/30+24
USB version	USB 2.0
Connector 1	USB C
Connector 2	USB C
Cable length	118.1" (3 m)
Connector contacts plating	Nickel/Gold
Maximum data transfer rate	480 Mbit/s
Product colour	Black
Certification	CE, FCC, REACH, USB-IF
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery	Yes
Cable jacket material	Polyvinyl chloride (PVC)
USB Power Delivery up to	100 W
Output current (max)	5 A
Cable diameter	0.177" (4.5 mm)
Input current (max)	5 A
Quantity per pack	1 pc(s)
Power
Output current (max)	5 A
Input current (max)	5 A
Weight & dimensions
Cable diameter	0.177" (4.5 mm)
Cable length	118.1" (3 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	2.12 oz (60 g)
Package type	Polybag
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	2.12 oz (60 g)
Package type	Polybag
Quantity per pack	1 pc(s)
Sustainability
Sustainability certificates	RoHS
Ports & interfaces
USB version	USB 2.0
Connector 1	USB C
Connector 2	USB C
Connector contacts plating	Nickel/Gold
Data transmission
Maximum data transfer rate	480 Mbit/s
Technical details
Product colour	Black
Country of origin	Vietnam
Sustainability certificates	RoHS
Certificates
Certification	CE, FCC, REACH, USB-IF
Other features
Package type	Polybag
Product colour	Black
Master (outer) case GTIN (EAN/UPC)	10037332241310
Logistics data
Master (outer) case gross weight	22.9 oz (650 g)
Products per master (outer) case	10 pc(s)
Master (outer) case width	13.8" (350.5 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	15.8" (401.3 mm)
Master (outer) case GTIN (EAN/UPC)	10037332241310
