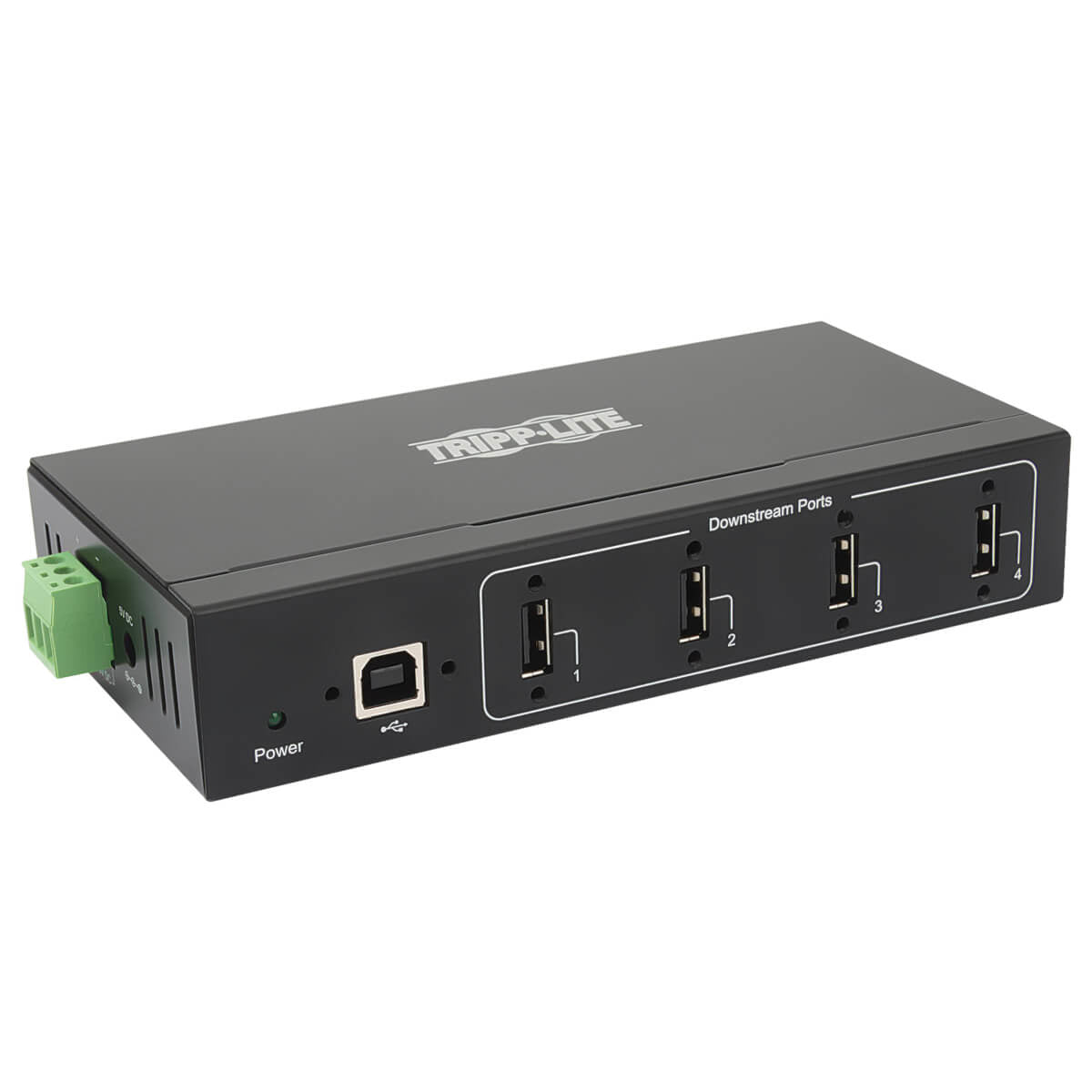

U223-004-IND-1 - Tripp Lite USB 2.0 HUB INDUSTRIAL 4-PORT 15KV ESD IMMUNITY METAL MOUNTABLE

Industrial-Grade USB 2.0 Hub Adds up to 4 USB Devices to Your Computer This USB 2.0 hub with a heavy-duty all-metal housing connects four USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. The hub supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 devices. All ports support screw-locked USB 2.0 cable to prevent accidental disconnections. Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This four-port hub includes ESD protection to ±15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with overcurrent protection to safeguard your connected devices against damage and data loss from power surges. Plug-and-Play Hub Offers Flexible Power and Mounting Options The U223-004-IND-1 requires no software to download and install. It can draw power from the connected computer through a USB-A to USB-B cable. However, for best performance, connecting a compatible 5V 2.5A DC external power supply (not included) is recommended. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal. A green LED indicates the unit is receiving power. The metal chassis mounts easily to a wall or DIN rail using the included hardware.



Specification:



Ports & interfaces
Hub interfaces	USB 2.0
USB 2.0 ports quantity	7
DC-in jack	Yes
Ports quantity	7
Features
Country of origin	Vietnam
Plug and Play	Yes
Hot-swap	Yes
Product colour	Black
Certification	CE, FCC, RoHS
Data transfer rate	480 Mbit/s
Data transmission
Data transfer rate	480 Mbit/s
Technical details
Plug and Play	Yes
Hot-swap	Yes
Product colour	Black
Country of origin	Vietnam
Performance
Certification	CE, FCC, RoHS
Plug and Play	Yes
Hot-swap	Yes
Data transfer rate	480 Mbit/s
Harmonized System (HS) code	8517.62.0090
Weight & dimensions
Weight	2.12 oz (60 g)
Width	6.5" (165.1 mm)
Depth	1.3" (33 mm)
Height	0.598" (15.2 mm)
Package width	7.48" (190 mm)
Package depth	3.15" (80 mm)
Package height	2.17" (55.1 mm)
Package weight	8.11 oz (230 g)
Packaging data
Package width	7.48" (190 mm)
Package depth	3.15" (80 mm)
Package height	2.17" (55.1 mm)
Package weight	8.11 oz (230 g)
Packaging content
Cables included	USB
AC adapter included	Yes
Design
Country of origin	Vietnam
Product colour	Black
Certification	CE, FCC, RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Certificates
Certification	CE, FCC, RoHS
Logistics data
Master (outer) case width	15.7" (400 mm)
Master (outer) case length	11.8" (300 mm)
Master (outer) case height	7.09" (180.1 mm)
Master (outer) case gross weight	11.5 lbs (5.2 kg)
Products per master (outer) case	20 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332185386
