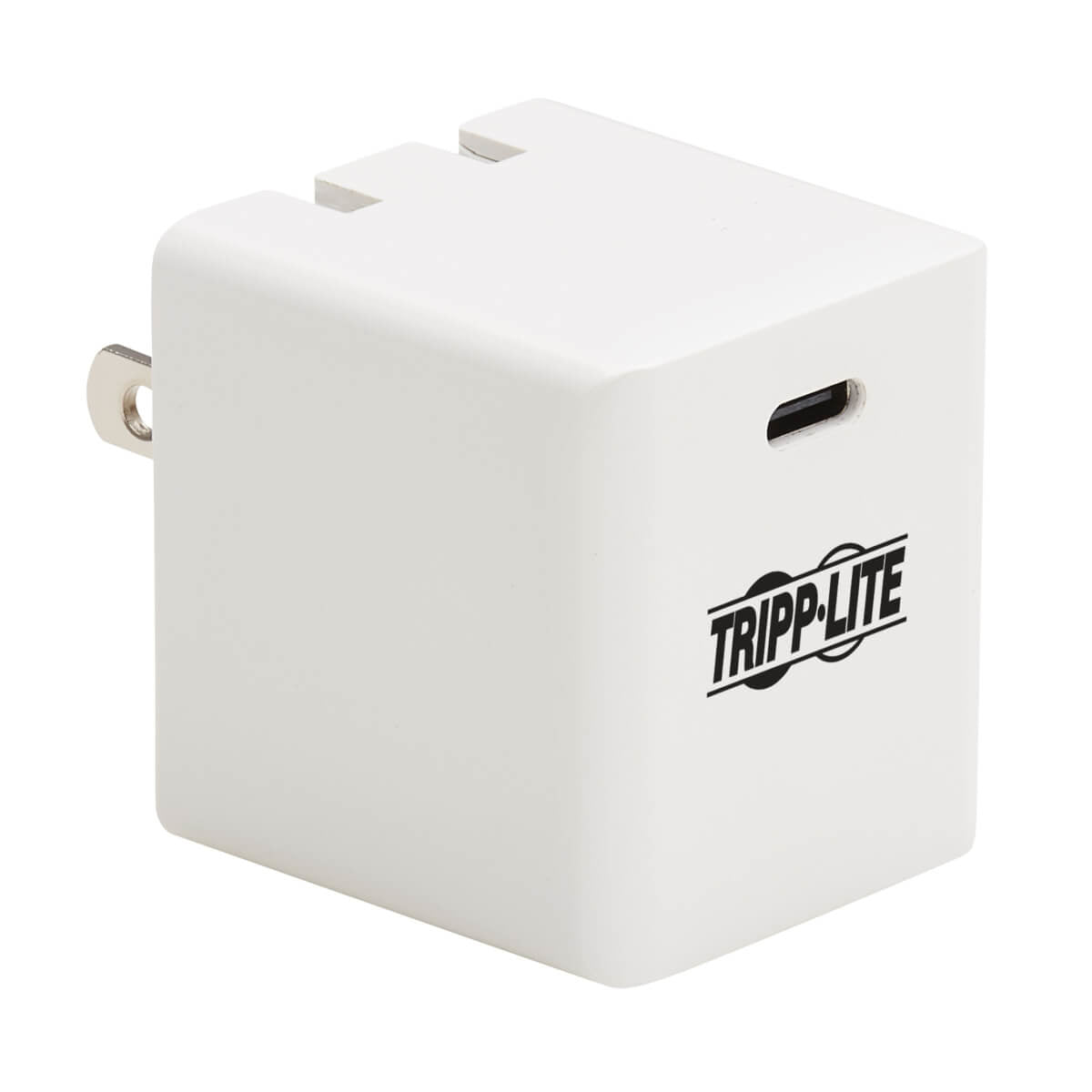

U280-W01-40C1 - Tripp Lite USB TYPE C HIGH PERFORMANCE PD WALL CHARGER, 40W, PD3.0,QC4 ,BC1.2 (5V/3A,9V/3A,

40W USB Type-C Charger Gets Your Mobile Device Ready in a Hurry, Wherever You Are This single-port USB charger lets you quickly and safely charge your USB-C mobile device. Plug it into any NEMA 1-15R, NEMA 5-15R or NEMA 5-15/20R AC outlet to ensure your MacBook Pro, Chromebook, Windows laptop, smartphone, tablet or other USB-C device charges at its fastest possible speed. The USB-C port supports USB Power Delivery (PD) 3.0 charging up to 5V 3A (15W), 9V 3A (27W), 15V 2.6A (39W) and 20V 2A (40W). Gallium Nitride Technology Allows High-Wattage Capacity in a Compact Package This USB wall charger is smaller and lighter than most standard wall chargers that come with a laptop, measuring less than 3.5 cubic inches. Ideal for travel, it is designed using GaN technology, which has a higher power density than silicon and provides higher efficiency than standard USB-C fast chargers. It also operates under much cooler temperatures, despite its small size, meaning it won’t get hot while charging your device. Built-In Auto-Sensing Adjusts to Proper Power Level to Get Your Device to 100% The USB-C port features auto-sensing technology that automatically adjusts to your device’s appropriate power level, perfect for fast-charging tablets and e-readers. The unit protects against overheating, overcurrent and overcharging—in fact, it stops charging as soon as your device’s batteries are at full capacity. Folding Plug Design Perfectly Sized for Travel The compact USB Type-C charger, small enough to fit in the palm of your hand, is easy to carry in your purse, suitcase, backpack or laptop bag. The NEMA 1-15P plug folds into the unit when not in use to shield it from damage and prevent it from snagging or scratching your bag’s contents.



Specification:



Performance
Country of origin	Vietnam
Charger type	Indoor
Charger compatibility	Universal
Power source type	AC
Power protection features	Over current, Overload
USB Type-C ports quantity	1
USB Power Delivery	Yes
USB Power Delivery revision	3.0
Design
Product colour	Gold, White
Power
Input current	1.5 A
Output current	3000 mA
Maximum power	50 W
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Maximum output voltage	20 V
Minimum output voltage	5 V
Weight & dimensions
Width	2.37" (60.2 mm)
Depth	1.31" (33.4 mm)
Height	1.98" (50.3 mm)
Weight	3.88 oz (110 g)
Packaging data
Package type	Box
Package width	3.94" (100 mm)
Package depth	3.23" (82 mm)
Package height	1.41" (35.8 mm)
Package weight	4.23 oz (120 g)
Quantity per pack	1 pc(s)
Operational conditions
Storage temperature (T-T)	-20 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 25 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Sustainability compliance	Yes
Sustainability certificates	REACH, RoHS
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	13.2" (335 mm)
Master (outer) case length	4.72" (120 mm)
Master (outer) case height	4.53" (115.1 mm)
Master (outer) case gross weight	2.76 lbs (1.25 kg)
Master (outer) case GTIN (EAN/UPC)	10037332249064
