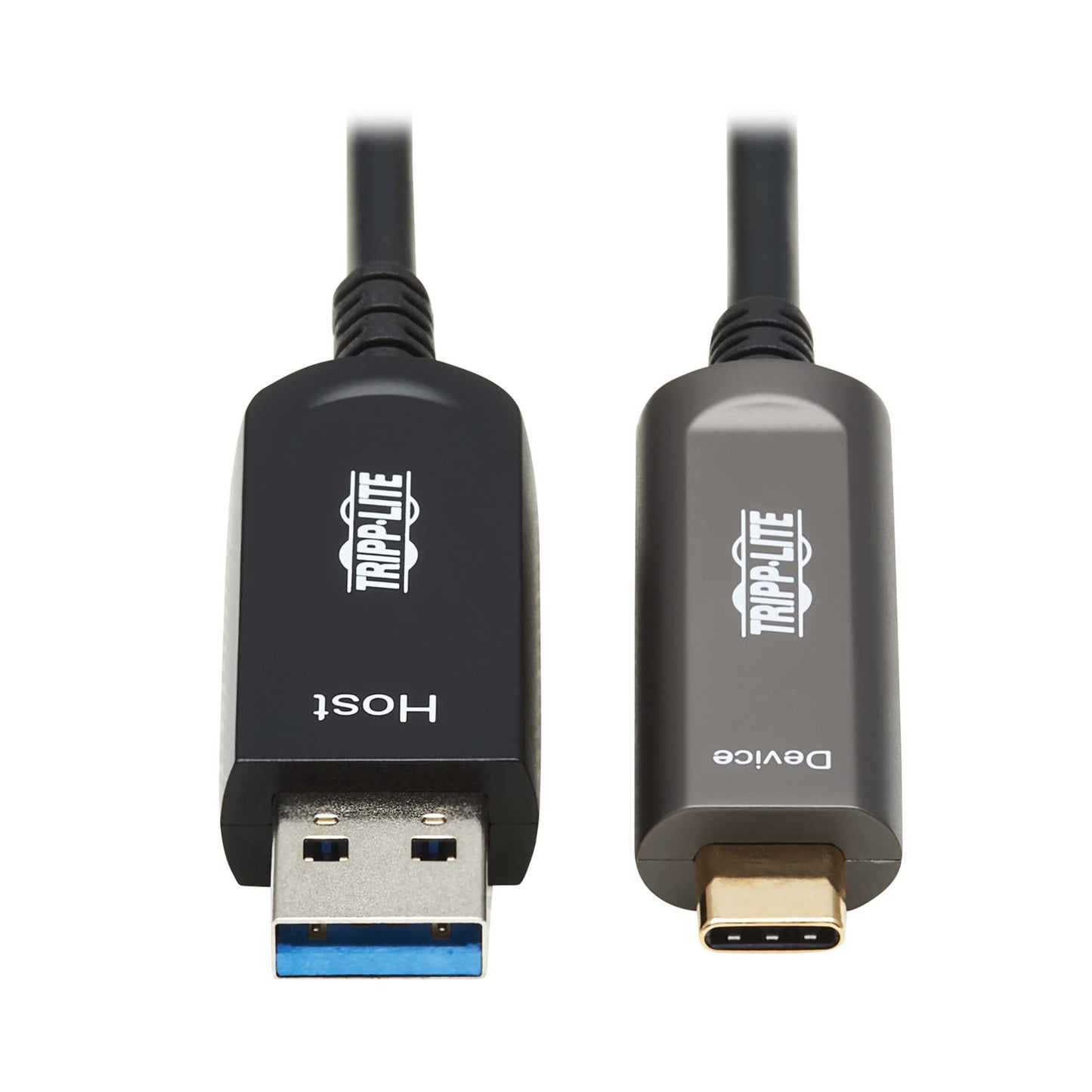

U428F-15M-D3 - Tripp Lite USB-A TO USB C FIBER ACTIVE OPTICAL CABLE USB 3.2 GEN 2 M/M 15M

Active Optical Cable Connects Servers, Hard Drives and Other USB-C Components This USB 3.2 Gen 2 fiber optic cable (M/M) securely connects the USB-A port on your desktop, laptop or notebook computer to a USB-C device, such as a server, external hard drive or surveillance camera, located up to 15 meters (49 feet) away. This data-only cable supports USB 3.2 Gen 2 data transfer rates up to 10 Gbps. Note : This USB cable is not backward compatible with USB 3.2 Gen 1, 2.0 or 1.1 devices. Advanced Fiber Cable Is Easier to Install than Copper Because the fiber cable is slimmer and more flexible than standard copper USB cables, the U428F-15M-D3 is easier to install around corners and in hard-to-reach spaces behind equipment. It draws power from the connected device, so no external power supply is needed to transmit the USB signal across the longer distances unique to fiber optic cabling. Note : The cable must be installed in the correct direction to function properly, so please check the Host and Device labels on the connectors before installation. CMP Jacket Designed for In-Wall Installations The plenum-rated jacket has low smoke and flame characteristics, making it suitable for premise applications in ceilings, walls and ducts. 15 m Cable Lets You Design an Application to Your Custom Specifications This long cable allows you greater flexibility in placing your USB components. For instance, your camera or hard drive may be located in a different room away from your office or in a central location where others have access to it. The plug-and-play U428F-15M-D3 supports all major operating systems, including Windows, macOS and Linux. Note : If your device is not detected by the source, external power is needed for the device to receive and transmit data to the source.



Specification:



Features
Country of origin	China
Connector 1 form factor	Straight
Connector 2 form factor	Straight
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB A
Connector 2	USB C
Cable length	590.6" (15 m)
Connector contacts plating	Nickel/Gold
Maximum data transfer rate	10000 Mbit/s
Product colour	Black
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
Cable jacket material	Polyvinyl chloride (PVC)
Cable diameter	0.177" (4.5 mm)
Weight	15.9 oz (450 g)
Quantity per pack	1 pc(s)
Weight & dimensions
Cable diameter	0.177" (4.5 mm)
Weight	15.9 oz (450 g)
Cable length	590.6" (15 m)
Package width	9.25" (235 mm)
Package depth	8.86" (225 mm)
Package height	1.54" (39.1 mm)
Package weight	22.9 oz (650 g)
Package type	Box
Packaging data
Package width	9.25" (235 mm)
Package depth	8.86" (225 mm)
Package height	1.54" (39.1 mm)
Package weight	22.9 oz (650 g)
Package type	Box
Quantity per pack	1 pc(s)
Sustainability
Sustainability compliance	Yes
Sustainability certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Ports & interfaces
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB A
Connector 2	USB C
Connector contacts plating	Nickel/Gold
Data transmission
Maximum data transfer rate	10000 Mbit/s
Technical details
Product colour	Black
Country of origin	China
Sustainability compliance	Yes
Sustainability certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Harmonized System (HS) code	8517.62.0090
Other features
Package type	Box
Product colour	Black
Cable type	Round cable
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Logistics data
Master (outer) case gross weight	30.9 lbs (14 kg)
Products per master (outer) case	20 pc(s)
Master (outer) case width	18.3" (465.1 mm)
Master (outer) case length	16.7" (424.9 mm)
Master (outer) case height	10.4" (264.9 mm)
